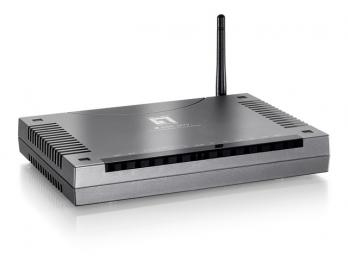

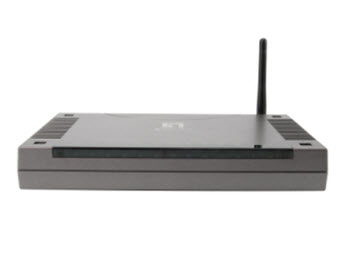

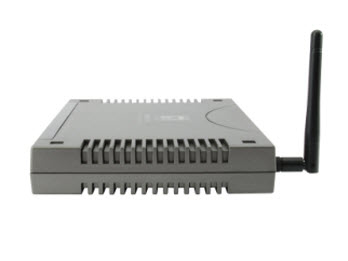

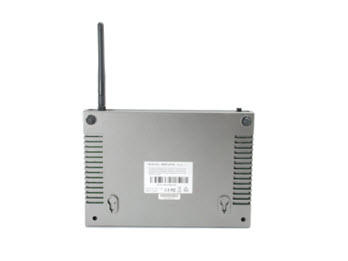

LevelOne 54Mbps Wireless ADSL2+ VoIP Router, Annex A

54Mbps Wireless ADSL2+ VoIP Router, Annex A

Model WBR-3470AEAN 4015867135907

72 specifications

Speed802.11g
TypeTabletop router
ColourBlack, Grey
Ethernet WANYes
Wi-Fi bandSingle-band (2.4 GHz)
3GNo

See all specifications

Overview

Speed: 802.11g
Type: Tabletop router
Colour: Black, Grey
Ethernet WAN: Yes
Wi-Fi band: Single-band (2.4 GHz)
3G: No

Brand: LevelOne
Category: Wireless Router
Model: WBR-3470A
Part number: WBR-3470A
EAN / UPC: 4015867135907
Also known as: LevelOne 54Mbps Wireless ADSL2+ VoIP Router, Annex A

Specifications

72 specifications in 20 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	802.11g
WLAN data transfer rate (max)	54 Mbit/s
Wi-Fi standards	802.11b, 802.11g
Channels quantity	13 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X	Yes
Dynamic DNS (DDNS)	Yes
VPN Passthrough	Yes

Mobile network

Specification	Value
3G	No
4G	No

DSL features

Specification	Value
ADSL	Yes
ADSL2	Yes
ADSL2+	Yes

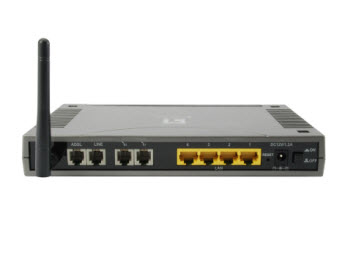

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
RJ-11 ports quantity	4

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit AES, 128-bit WEP, SSID, TKIP, WPA-PSK, WPA2-PSK
Firewall	Yes
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
Filtering	Yes
URL filtering	Yes
System event log	Yes
DMZ support	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
Universal Plug and Play (UPnP)	Yes
Voice codecs	G.711, G.711a, G.723, G.729, G.729A, G.729B

Design

Specification	Value
Product type	Tabletop router
Product colour	Black, Grey
Wall mountable	Yes
On/off switch	Yes

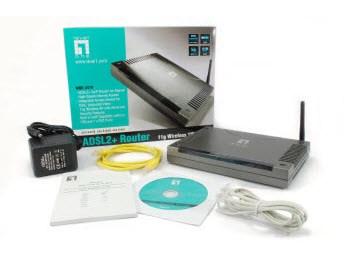

Packaging content

Specification	Value
Cables included	LAN (RJ-45), Phone (RJ-11)
AC adapter included	Yes
Manual	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, FCC

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	2 dBi
Antennas quantity	1
Detachable antenna(s)	Yes

Features

Specification	Value
Firmware upgradeable	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultima
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	210 mm
Height	36 mm
Width	148 mm

Packaging data

Specification	Value
Package width	236 mm
Package depth	84 mm
Package height	298 mm
Package weight	1.34 kg

Logistics data

Specification	Value
Master (outer) case width	438 mm
Master (outer) case length	325 mm
Master (outer) case height	480 mm
Master (outer) case gross weight	17.1 kg
Products per master (outer) case	10 pc(s)

Other features

Specification	Value
Downstream data rate	24 Mbit/s
Frequency range	2.4 - 2.4835 GHz
Upstream data rate	3.5 Mbit/s
