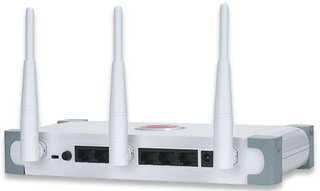

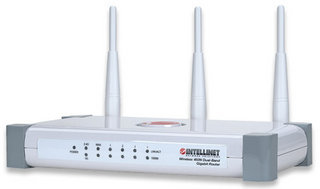

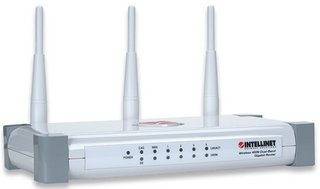

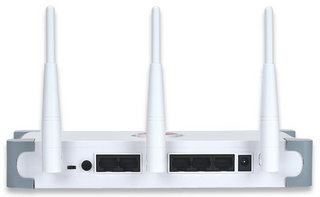

Intellinet 524988 wireless router Gigabit Ethernet

Intellinet 524988 wireless router Gigabit Ethernet

Model 524988EAN 7666235249886

53 specifications

Memory64 MB
SpeedWi-Fi 4 (802.11n)
Weight1 kg
Ethernet WANYes
Ethernet LAN (RJ-45) ports4
Web-based managementNo

See all specifications

Overview

Memory: 64 MB
Speed: Wi-Fi 4 (802.11n)
Weight: 1 kg
Ethernet WAN: Yes
Ethernet LAN (RJ-45) ports: 4
Web-based management: No

Brand: Intellinet
Category: Wireless Router
Model: 524988
Part number: 524988
EAN / UPC: 7666235249886, 132018352373, 163120870967, 168141654039 +4 more
Also known as: Intellinet 524988 wireless router Gigabit Ethernet

Specifications

53 specifications in 16 groups

WAN connection

Specification	Value
Ethernet WAN	Yes

Wireless LAN features

Specification	Value
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	450 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g
Channels quantity	165 channels
Modulation	16-QAM, 64-QAM, BPSK, OFDM, QPSK

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VPN support	PPTP, IPSec, L2TP
Receiver sensitivity	5.0 GHz - 11n (450 Mbps): 20 MHz: -66 dBm; 40 MHz: -64 dBm (±2 dBm); - 11a (54 Mbps): -68 dBm (±2 dBm); 2.4 GHz - 11n (300 Mbps): 20 MHz: -66 dBm; 40 MHz: -64 dBm (±2 dBm); - 11g (54 Mbps): -70 dBm (±2 dBm); - 11b (11 Mbps): -84 dBm (±2 dBm)

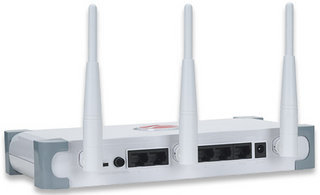

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes

Management features

Specification	Value
Web-based management	No
Reset button	Yes

Security

Specification	Value
Security algorithms	128-bit WEP, 64-bit WEP, WEP, WPA, WPA-TKIP, WPA2
Filtering	Yes
MAC address filtering	Yes
DMZ support	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Management protocols	CSMA/CA. CSMA/CD
Data link protocols	DHCP, DNS
Supported network protocols	TCP/IP, UDP, ICMP, PPPoE, NTP, NAT, DHCP, DNS, PPPoE, PPTP

Design

Specification	Value
LED indicators	LAN, Link, Power, WAN, WLAN

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Manual	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	RoHS, CE, FCC Class B

Antenna

Specification	Value
Antenna gain level (max)	3 dBi
Antennas quantity	3

Features

Specification	Value
Built-in processor	Yes
Processor frequency	500 MHz
Internal memory	64 MB
Flash memory	8 MB

Power

Specification	Value
Power consumption (typical)	10.5 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C

Weight & dimensions

Specification	Value
Weight	1 kg

Other features

Specification	Value
Bandwidth	2.4 GHz
Dimensions (WxDxH)	195 x 127 x 35 mm
Frequency range	2.4 / 5.0 GHz
Input current	1.25 A
Input voltage	12 V
Networking features	Gigabit Ethernet
WLAN data transfer rates supported	11,54,450 Mbit/s
xDSL connection	No
