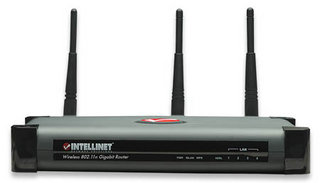

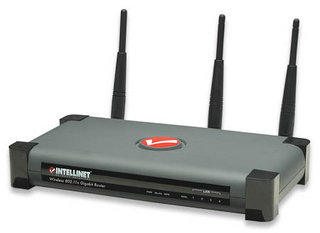

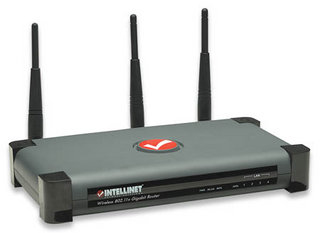

Intellinet 524315 wireless router Gigabit Ethernet Grey

Intellinet 524315 wireless router Gigabit Ethernet Grey

Model 524315EAN 766623524315

47 specifications
  • ProcessorRalink RT2880
  • Speed300 Mbit/s
  • Weight1 kg
  • ColourGrey
  • Ethernet WANYes
  • Ethernet LAN (RJ-45) ports4
See all specifications

Overview

Processor
Ralink RT2880
Speed
300 Mbit/s
Weight
1 kg
Colour
Grey
Ethernet WAN
Yes
Ethernet LAN (RJ-45) ports
4
Brand
Intellinet
Model
524315
Part number
524315
EAN / UPC
766623524315, 7666235243150
Also known as
Intellinet 524315 wireless router Gigabit Ethernet Grey

Specifications

47 specifications in 17 groups

WAN connection

Ethernet WANYes

Wireless LAN features

WLAN data transfer rate (max)300 Mbit/s
Channels quantity14 channels

Network

Ethernet LANYes
Ethernet LAN interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Receiver sensitivity11n (300 Mbps): 20 MHz: -71 dBm; 40MHz: -68 dBm 11g (54 Mbps): -74 dBm 11b (11 Mbps): -87 dBm

Ports & interfaces

Ethernet LAN (RJ-45) ports4
DC-in jackYes

Management features

Quality of Service (QoS) supportYes

Security

Security algorithms128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA-AES, WPA-TKIP, WPA2
FilteringYes
MAC address filteringYes
DMZ supportYes

Protocols

DHCP clientYes
DHCP serverYes
Supported network protocolsCSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, NAT, DHCP, DNS

Design

Product colourGrey
Indication lightYes
LED indicatorsYes

Packaging content

ManualYes

Certificates

CertificationFCC Class B, CE Mark, RoHS

Antenna

Antenna gain level (max)3 dBi
Antennas quantity3

Features

Built-in processorYes
Processor modelRalink RT2880
Flash memory4 MB

Power

Power consumption (typical)7.2 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C

System requirements

Minimum RAM16 MB

Weight & dimensions

Weight1 kg

Other features

Bandwidth2.4 GHz
Dimensions (WxDxH)195 x 127 x 35 mm
Filtering descriptionURL
Frequency range2.412 – 2.472 GHz
Input current1 A
Input voltage2 V
Networking featuresGigabit Ethernet
Operating temperature (T-T)32 - 122 °F
WLAN data transfer rates supported300 Mbit/s
Dimensions (W x D x H) (imperial)193 x 127 x 35.6 mm (7.6 x 5 x 1.4")
Weight (imperial)0.998 kg (2.2 lbs)
