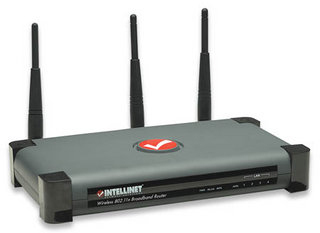

Intellinet 523967 wireless router Fast Ethernet Grey
Model 523967EAN 766623523967
70 specifications
- ProcessorRalink RT3052
- Memory16 MB
- Speed300 Mbit/s
- Weight1 kg
- ColourGrey
- Ethernet WANYes
Overview
- Processor
- Ralink RT3052
- Memory
- 16 MB
- Speed
- 300 Mbit/s
- Weight
- 1 kg
- Colour
- Grey
- Ethernet WAN
- Yes
- Brand
- Intellinet
- Category
- Wireless Router
- Model
- 523967
- Part number
- 523967
- EAN / UPC
- 766623523967
- Also known as
- Intellinet 523967 wireless router Fast Ethernet Grey
Specifications
70 specifications in 16 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| WLAN data transfer rate (max) | 300 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Full duplex | Yes |
| VPN support | PPTP, IPSec, L2TP |
| Receiver sensitivity | 11n (300 Mbps): 20 MHz: -71 dBm; 40MHz: -68 dBm 11g (54 Mbps): -74 dBm 11b (11 Mbps): -87 dBm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| RJ-11 ports quantity | 0 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit WEP, 256-bit WEP, WPA, WPA2 |
| DoS attack prevention | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| URL filtering | Yes |
| System event log | Yes |
| DMZ support | Yes |
| NAT functionality | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | CSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, NAT, DHCP, DNS |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Indication light | Yes |
| LED indicators | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC - B, CE, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 3 dBi |
| Antennas quantity | 3 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Ralink RT3052 |
| Internal memory | 16 MB |
| Flash memory | 4 MB |
| Plug and Play | Yes |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6.3 W |
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 00 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1 kg |
Other features
| Specification | Value |
|---|---|
| Cable length | 1 m |
| Compatibility | IEEE 802.1d IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.3 IEEE 802.3u |
| Dimensions (WxDxH) | 195 x 127 x 35 mm |
| Filtering description | URL |
| Frequency range | 2.400 - 2.4835 GHz |
| Indoor range | 100 m |
| Input current | 1 A |
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 / 5 V |
| Operating temperature (T-T) | 32 - 122 °F |
| Outdoor range | 600 m |
| Ports quantity | 4 |
| Power supply type | DC |
| Rack mounting | No |
| Security features | MAC, URL, DMZ, anti-DOS |
| Supported data transfer rates | 10/11/54/100/300 Mbit/s |
| Throughput | 93 Mb/s |
| USB ports quantity | 0 |
| WLAN data transfer rates supported | 300 Mbit/s |
| xDSL connection | No |
| Dimensions (W x D x H) (imperial) | 193 x 127 x 35.6 mm (7.6 x 5 x 1.4") |
| LAN features | Auto MDI/MDI-X |
| Logging and monitoring | Yes |
