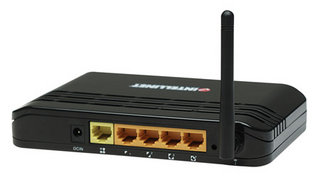

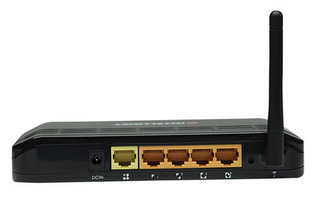

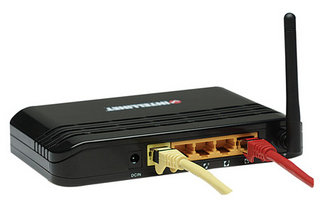

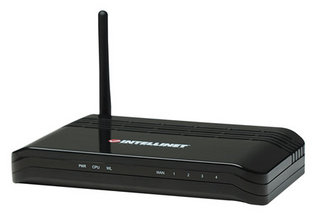

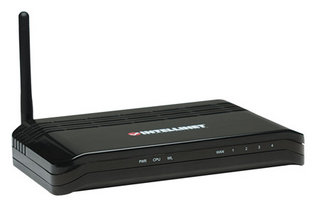

Intellinet 503693 wireless router Fast Ethernet Black

Intellinet 503693 wireless router Fast Ethernet Black

Model 503693EAN 766623503693

48 specifications
  • Speed0.068 Gbit/s
  • Weight800 g
  • ColourBlack
  • Ethernet WANYes
  • Channels quantity11 channels
  • Ethernet LAN (RJ-45) ports4
See all specifications

Overview

Speed
0.068 Gbit/s
Weight
800 g
Colour
Black
Ethernet WAN
Yes
Channels quantity
11 channels
Ethernet LAN (RJ-45) ports
4
Brand
Intellinet
Model
503693
Part number
503693
EAN / UPC
766623503693
Also known as
Intellinet 503693 wireless router Fast Ethernet Black

Specifications

48 specifications in 16 groups

WAN connection

Ethernet WANYes

Wireless LAN features

Channels quantity11 channels
ModulationBPSK, CCK, DBPSK, DQPSK, QPSK

Network

Ethernet LANYes
Ethernet LAN interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.1D, IEEE 802.1x, IEEE 802.3, IEEE 802.3u

Ports & interfaces

Ethernet LAN (RJ-45) ports4
DC-in jackYes

Management features

Web-based managementNo
Reset buttonYes

Security

Security algorithms128-bit WEP, 64-bit WEP, WPA, WPA2
Authentication methodNAT, NTP
Firewall securityAddress Resolution Protocol (ARP)
FilteringYes
MAC address filteringYes
DMZ supportYes

Protocols

DHCP clientYes
DHCP serverYes
Universal Plug and Play (UPnP)Yes
Supported network protocolsPPTP, L2TP, PPoE, DHCP, NTP, UDP, TCP/IP, CSMA/CA, CSMA/CD, ICMP

Design

Product colourBlack
LED indicatorsLAN, Power, Status, WLAN

Packaging content

Cables includedLAN (RJ-45)
AC adapter includedYes
ManualYes

Certificates

CertificationCE, FCC, RoHS

Antenna

Antenna gain level (max)2 dBi
Antennas quantity1

Features

Built-in processorYes
Processor modelRealtek RTL8186 + Realtek RTL8225

Power

Power consumption (typical)6.3 W

Operational conditions

Operating relative humidity (H-H)10 - 95%
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)0 - 60 °C

Weight & dimensions

Weight800 g

Other features

Dimensions (WxDxH)169 x 108 x 180 mm
Filtering descriptionIP, URL
Frequency range2.412 - 2.484 GHz
Indoor range100 m
Input current0.8 A
Input voltage9 V
Maximum data transfer rate0.068 Gbit/s
Networking featuresFast Ethernet
Outdoor range300 m
WLAN data transfer rates supported1,2,5.5,6,9,11,12,18,24,36,48,54 Mbit/s
xDSL connectionNo
