FRTZ!Box 5690 International
Model FRTZ!Box 5690 InternationalPart no. 20003146EAN 4023125031465
39 specifications
- SpeedWi-Fi 7 (802.11be)
- TypeTabletop router
- Weight801 g
- ColourRed, White
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Tabletop router
- Weight
- 801 g
- Colour
- Red, White
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- FRITZ!
- Category
- Wireless Router
- Model
- FRTZ!Box 5690 International
- Part number
- 20003146
- EAN / UPC
- 4023125031465
- Also known as
- Box FRTZ! 5690 International wireless router 2.5 Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Red, White
Specifications
39 specifications in 14 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | GPON, RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 5760 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 5760 Mbit/s |
| WLAN data transfer rate (second band) | 688 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | Not supported |

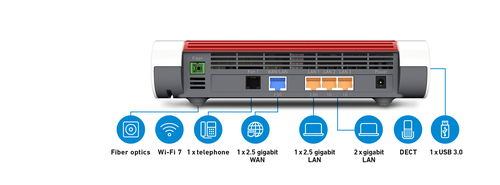

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA2, WPA3, WPS |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | IPv6 |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Red, White |
| Indication light | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45), Fiber |
| AC adapter included | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 191 mm |
| Height | 63 mm |
| Weight | 801 g |
| Width | 254 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 305.5 mm |
| Package depth | 240 mm |
| Package height | 69 mm |
| Package weight | 1.03 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Poland |
| Warranty period | 5 year(s) |
