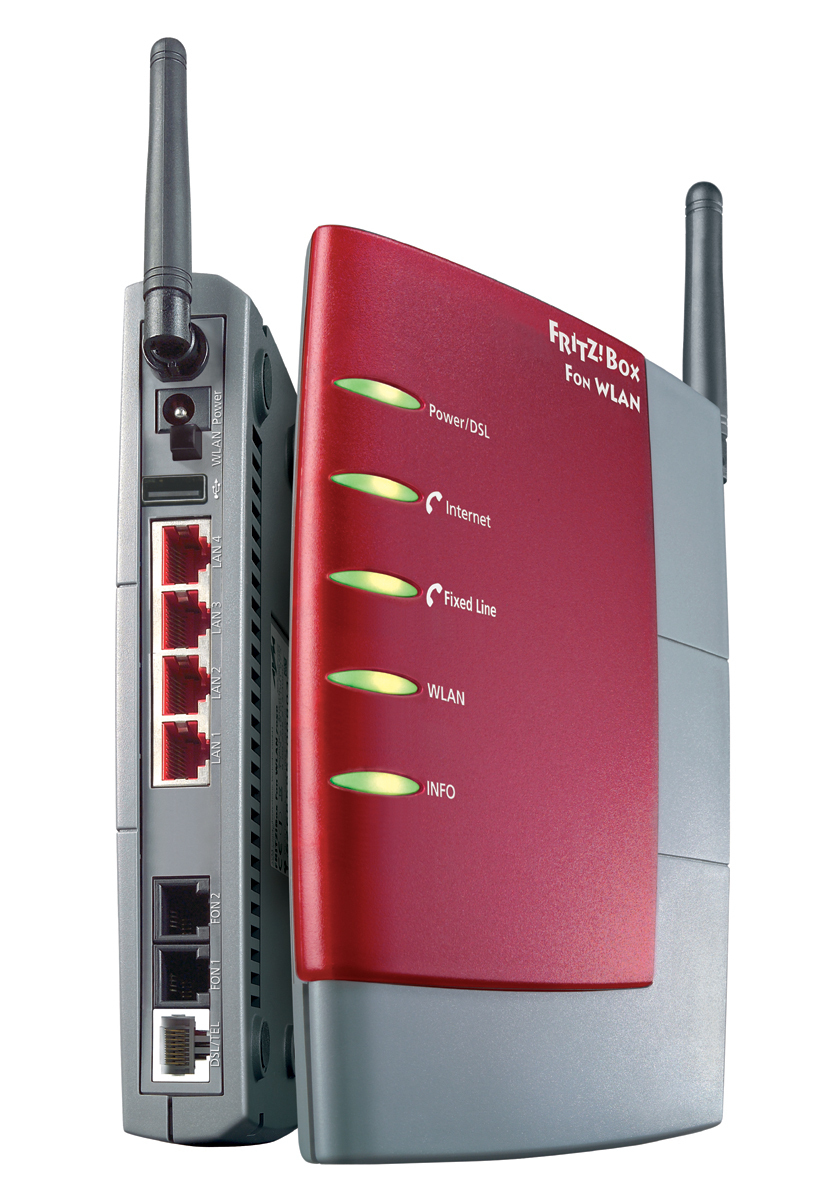

FRITZ!Box Fon WLAN 7140 Annex A
Model FRITZ!Box Fon WLAN 7140 Annex APart no. 20002337EAN 4023125023378
33 specifications
- Speed0.100 Gbit/s
- Weight815 g
- Channels quantity13 channels
- Ethernet LANYes
- Ethernet LAN (RJ-45) ports4
- Security algorithmsWEP, WPA, WPA2
Overview
- Speed
- 0.100 Gbit/s
- Weight
- 815 g
- Channels quantity
- 13 channels
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 4
- Security algorithms
- WEP, WPA, WPA2
- Brand
- FRITZ!
- Category
- Wireless Router
- Model
- FRITZ!Box Fon WLAN 7140 Annex A
- Part number
- 20002337
- EAN / UPC
- 4023125023378
- Also known as
- FRITZ! Box Fon WLAN 7140 Annex A wireless router
Specifications
33 specifications in 11 groups
Wireless LAN features
| Specification | Value |
|---|---|
| Channels quantity | 13 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Supports ISDN connection | Yes |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| DSL specification | ADSL, ADSL2+, G.992.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Reset button | No |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA2 |
| Filtering | Yes |
| MAC address filtering | Yes |
| System event log | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Data link protocols | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11g++ |
| VoIP protocols | SIP |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Bundled software | FRITZ!DSL |
Features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 815 g |
Other features
| Specification | Value |
|---|---|
| Bandwidth | 2.4 GHz |
| Compatible operating systems | -Microsoft Windows XP, 2000, Me, 98 -Linux SuSE 9.0 -Mac OS X 10.3.3 + |
| Dimensions (WxDxH) | 240 x 305 x 70 mm |
| Downstream data rate | 24 Mbit/s |
| Frequency range | 2.4 ghz |
| Maximum data transfer rate | 0.100 Gbit/s |
| Supported WAN type | ADSL, ADSL2+, LAN |
| Supported protocols | - VoIP - ADSL, T-DSL - ITU G.992.1 (G.DMT) Annex A |
| USB ports quantity | No |
| Upstream data rate | 1 Mbit/s |
| xDSL connection | Yes |

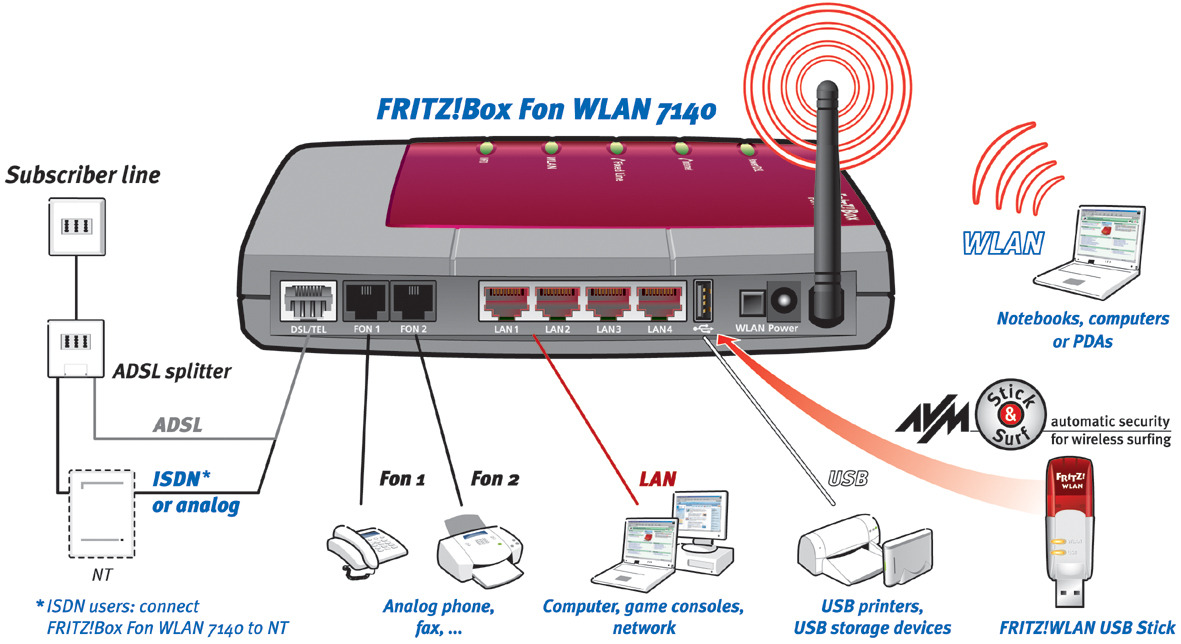

| I/O ports | 2 x FXS - RJ-11 4 x Ethernet 10Base-T/100Base-TX - RJ-45 1 x modem - ADSL 1 x USB |
