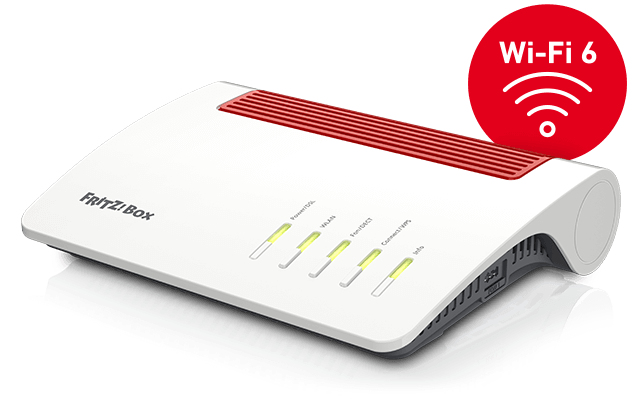

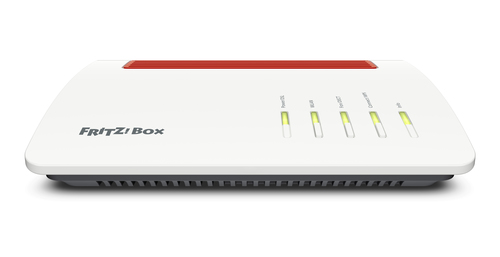

FRITZ!Box 7590 AX
Model FRITZ!Box 7590 AXPart no. 4610122EAN 4023125029295
51 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- Weight836 g
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Weight
- 836 g
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- FRITZ!
- Category
- Wireless Router
- Model
- FRITZ!Box 7590 AX
- Part numbers
- 4610122, 20002999
- EAN / UPC
- 4023125029295, 4023125029998
- Also known as
- Box FRITZ! 7590 AX wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White
Specifications
51 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2400 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN data transfer rate (first band) | 1200 Mbit/s |
| WLAN data transfer rate (second band) | 2400 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Supports ISDN connection | Yes |
| Dynamic DNS (DDNS) | Yes |
| Media server | Yes |
DSL features
| Specification | Value |
|---|---|
| ADSL2+ | Yes |
| VDSL | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| RJ-11 ports quantity | 2 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Intelligent Mesh technology | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Parental control | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| Wall mountable | Yes |
| Indication light | Yes |
| LED indicators | DSL, WLAN, WPS |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DSL, LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power consumption (typical) | 16 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 185 mm |
| Height | 48 mm |
| Weight | 836 g |
| Width | 250 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 305 mm |
| Package depth | 68 mm |
| Package height | 240 mm |
| Package weight | 1.08 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
