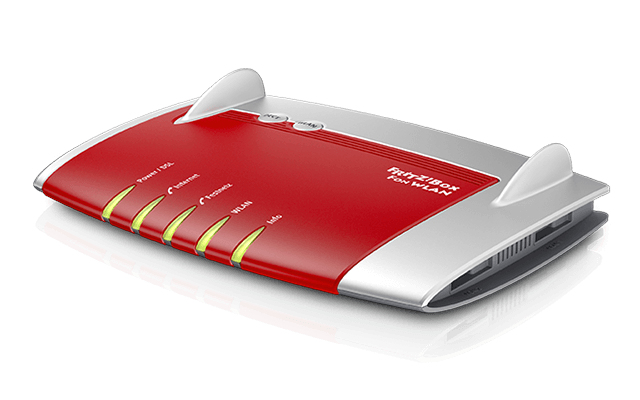

FRITZ!Box 7390 + FRITZ!Fon M2
Model FRITZ!Box 7390 + FRITZ!Fon M2Part no. 20002448+20002511
33 specifications
- SpeedWi-Fi 4 (802.11n)
- Weight1.19 kg
- ColourRed, Silver
- DSL WANYes
- Ethernet LAN (RJ-45) ports2
- Antenna designInternal
Overview
- Speed
- Wi-Fi 4 (802.11n)
- Weight
- 1.19 kg
- Colour
- Red, Silver
- DSL WAN
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Antenna design
- Internal
- Brand
- FRITZ!
- Category
- Wireless Router
- Model
- FRITZ!Box 7390 + FRITZ!Fon M2
- Part number
- 20002448+20002511
- Also known as
- FRITZ! Box 7390 + Fon M2 wireless router Gigabit Ethernet Red, Silver
Specifications
33 specifications in 14 groups
WAN connection
| Specification | Value |
|---|---|
| DSL WAN | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
DSL features
| Specification | Value |
|---|---|
| VDSL | Yes |
| DSL specification | VDLS2, DSL, ADSL, ADSL2, VDLS2+ |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| RJ-11 ports quantity | 2 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA2 |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Red, Silver |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
Power
| Specification | Value |
|---|---|
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) | 11 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 47 mm |
| Height | 160 mm |
| Weight | 1.19 kg |
| Width | 226 mm |
Other features
| Specification | Value |
|---|---|
| xDSL connection | Yes |
