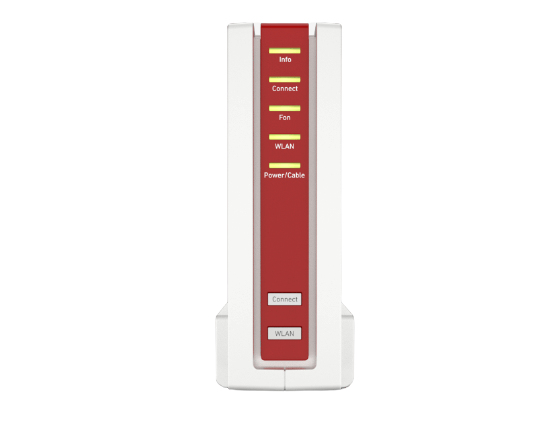

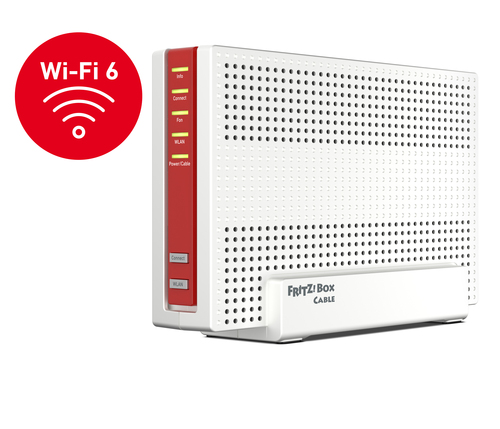

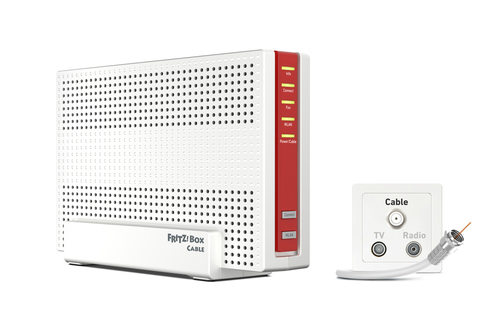

FRITZ!Box 6690
Model FRITZ!Box 6690Part no. 20002965EAN 4023125029653
54 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- ColourWhite
- Ethernet WANNo
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Ethernet LANYes
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Colour
- White
- Ethernet WAN
- No
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Ethernet LAN
- Yes
- Brand
- FRITZ!
- Category
- Wireless Router
- Model
- FRITZ!Box 6690
- Part number
- 20002965
- EAN / UPC
- 4023125029653
- Also known as
- Box FRITZ! 6690 Cable
Specifications
54 specifications in 16 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | No |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 4800 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Automatic channel selection | Yes |
| Dynamic DNS (DDNS) | Yes |
| Built-in FTP server | Yes |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |
| 5G | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| RJ-11 ports quantity | 2 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Wake-on-LAN ready | Yes |
| Intelligent Mesh technology | Yes |
| MIMO | Yes |
| MU-MIMO technology | No |
Security
| Specification | Value |
|---|---|
| Security algorithms | SIPS |
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Parental control | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| Wall mountable | No |
| On/off switch | No |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Coaxial, DC, LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 14 W |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 273 mm |
| Height | 209 mm |
| Width | 85 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 246 mm |
| Package depth | 328 mm |
| Package height | 102 mm |
| Package weight | 1.64 kg |
| Number of products included | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 1.5 m |
