FRITZ!Box 5690 Pro International
Model FRITZ!Box 5690 Pro InternationalPart no. 20003058EAN 4023125030581
49 specifications
- SpeedWi-Fi 7 (802.11be)
- TypeTabletop router
- Weight1.1 kg
- ColourWhite
- Ethernet WANYes
- Security algorithmsWPA2, WPA3
Overview
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Tabletop router
- Weight
- 1.1 kg
- Colour
- White
- Ethernet WAN
- Yes
- Security algorithms
- WPA2, WPA3
- Brand
- FRITZ!
- Category
- Wireless Router
- Model
- FRITZ!Box 5690 Pro International
- Part number
- 20003058
- EAN / UPC
- 4023125030581
- Also known as
- Box FRITZ! 5690 Pro International wireless router 2.5 Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 6 GHz) White
Specifications
49 specifications in 17 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 18490 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 2400 Mbit/s |
| WLAN data transfer rate (second band) | 5760 Mbit/s |
| WLAN data transfer rate (third band) | 11530 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Media server | Yes |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| VDSL | Yes |
| Internal modem | Yes |

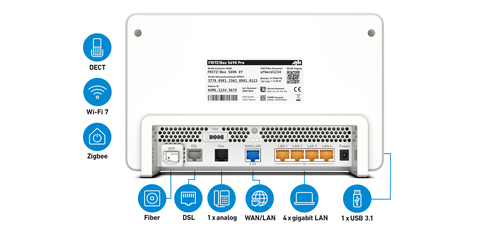

Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| Fiber optic connector | LC, SFP |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| Intelligent Mesh technology | Yes |
| WPS push button | Yes |
| MIMO | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA2, WPA3 |
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| Indication light | Yes |
| LED indicators | Power, WLAN |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DSL, Fiber, LAN (RJ-45), Power, SFP |
| Quick installation guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
Features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
System requirements
| Specification | Value |
|---|---|
| Introduction month | September |
| Introduction year | 2024 |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 75 mm |
| Height | 165 mm |
| Weight | 1.1 kg |
| Width | 268 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 370 mm |
| Package depth | 99 mm |
| Package height | 212 mm |
| Package weight | 1.49 kg |
| Number of products included | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Vendor code | 20003058 |
