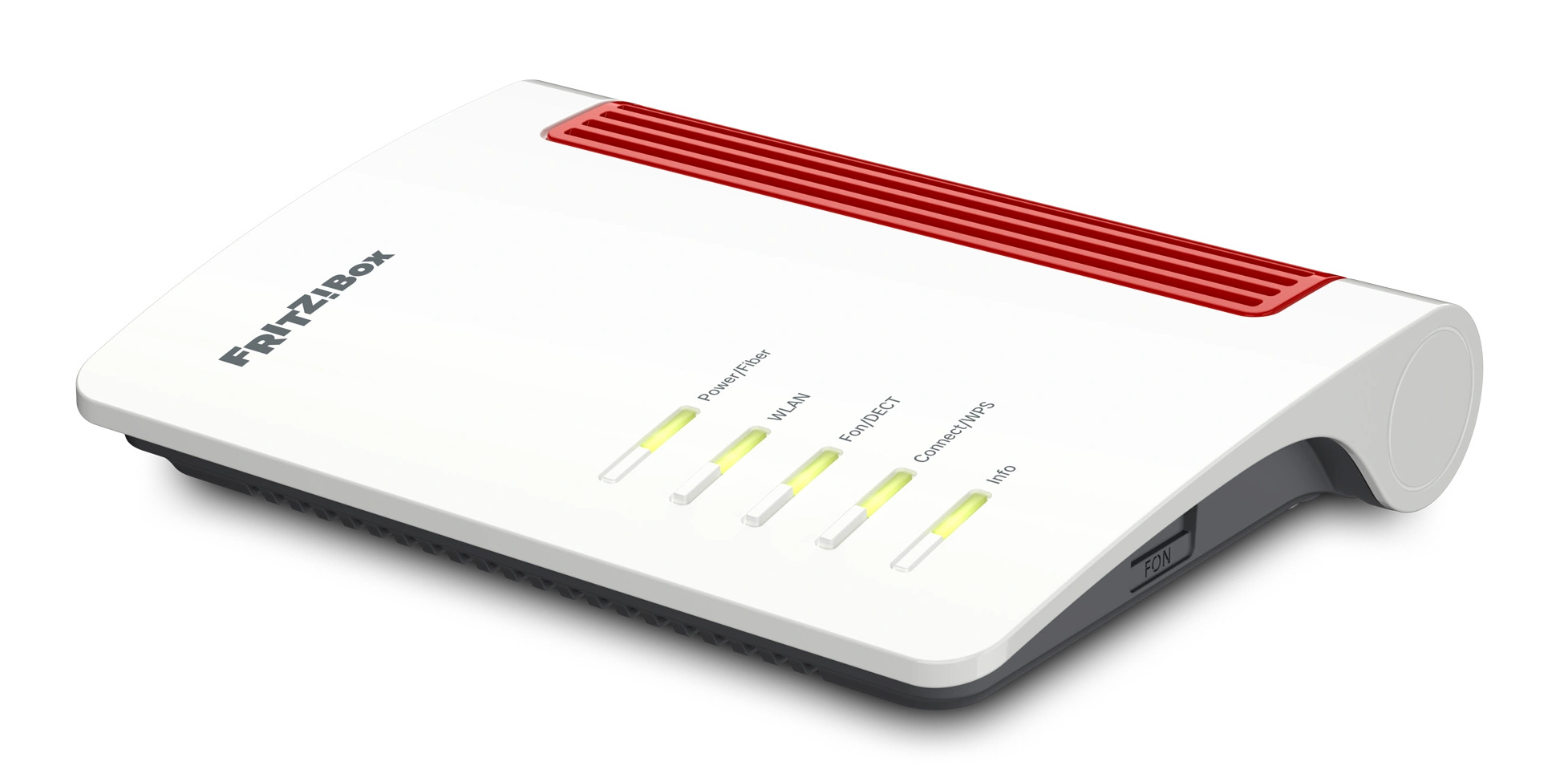

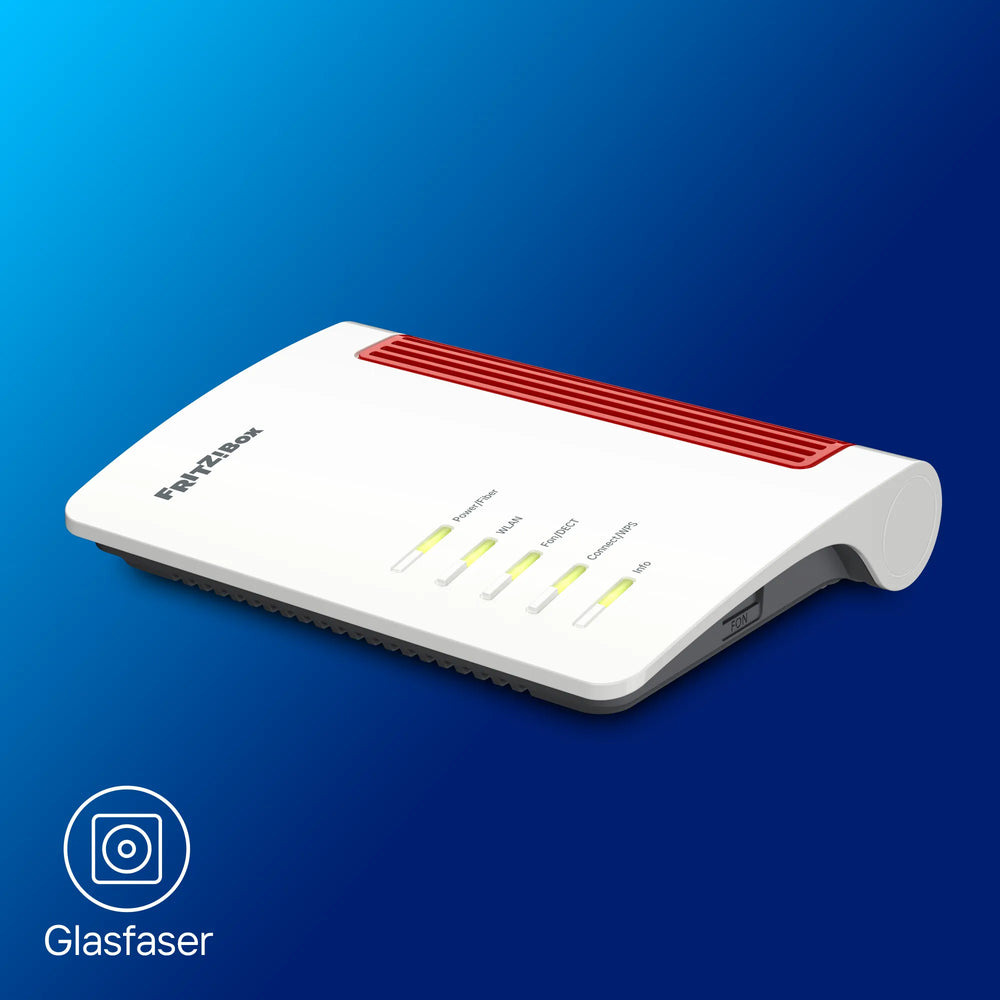

Box 5630
Model Box 5630Part no. 20003150EAN 4023125031502
31 specifications
- SpeedWi-Fi 7 (802.11be)
- TypeTabletop router
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports4
Overview
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Tabletop router
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- FRITZ!
- Category
- Wireless Router
- Model
- Box 5630
- Part number
- 20003150
- EAN / UPC
- 4023125031502
- Also known as
- Box 5630 wireless router 2.5 Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White
Specifications
31 specifications in 11 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| WAN connection type | GPON |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 3600 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 2880 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Media server | Yes |

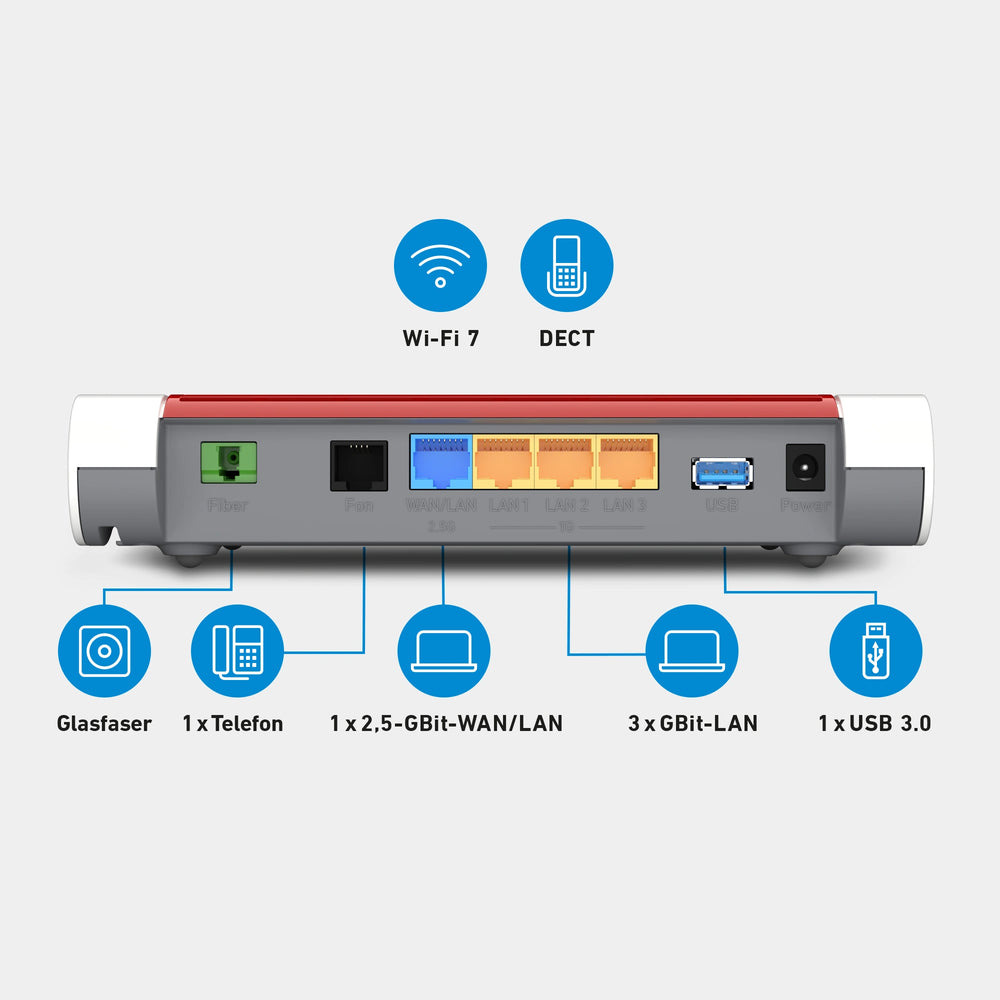

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| Fiber optic connector | LC |
Management features
| Specification | Value |
|---|---|
| Intelligent Mesh technology | Yes |
| WPS push button | Yes |
| MIMO | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA3, WPA2, WPS |
| Guest access | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Optical, LAN (RJ-45) |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Packaging content | FRITZ!Box 5630 4-m fiber optic cable (LC/APC - LC/APC) 1.5-m LAN cable Power adapter Quick guide |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 152 mm |
| Height | 45 mm |
| Width | 200 mm |
