5690 XGS
Model 5690 XGSPart no. 20003105EAN 4023125031052
45 specifications
- SpeedWi-Fi 7 (802.11be)
- TypeDesktop/pole router
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports5
Overview
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Desktop/pole router
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports
- 5
- Brand
- FRITZ!
- Category
- Wireless Router
- Model
- 5690 XGS
- Part number
- 20003105
- EAN / UPC
- 4023125031052
- Also known as
- Box 5690 XGS wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White
Specifications
45 specifications in 13 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | GPON, RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 6448 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 5760 Mbit/s |
| WLAN data transfer rate (second band) | 1376 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Media server | Yes |
| VPN support | WireGuard, IPSec |

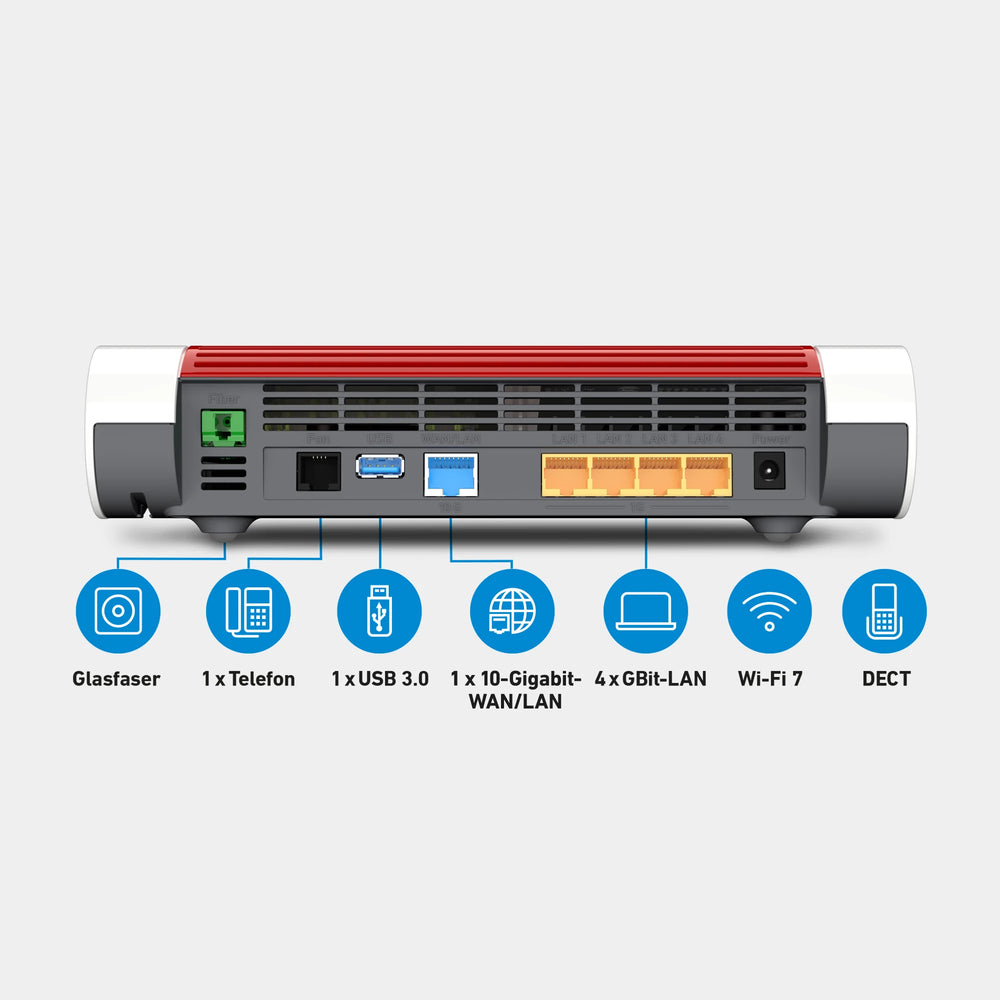

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| SC/APC GPON ports quantity | 1 |
| RJ-11 ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Intelligent Mesh technology | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA2, WPA3 |
| Firewall | Yes |
| Guest access | Yes |
| Parental control | Yes |
| Network address translation (NAT) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Desktop/pole router |
| Product colour | White |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Fiber, LAN (RJ-45) |
| AC adapter included | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
Features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 8 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 191 mm |
| Height | 63 mm |
| Width | 254 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Number of products included | 1 pc(s) |
