5690 Pro
Model 5690 ProPart no. 20003043EAN 4023125030437
34 specifications
- SpeedWi-Fi 7 (802.11be)
- TypeTabletop router
- ColourWhite
- Ethernet WANYes
- Ethernet LAN (RJ-45) ports4
- Antenna designInternal
Overview
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Tabletop router
- Colour
- White
- Ethernet WAN
- Yes
- Ethernet LAN (RJ-45) ports
- 4
- Antenna design
- Internal
- Brand
- FRITZ!
- Category
- Wireless Router
- Model
- 5690 Pro
- Part number
- 20003043
- EAN / UPC
- 4023125030437
- Also known as
- Box 5690 Pro wireless router Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 5 GHz) White
Specifications
34 specifications in 10 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 5760 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3bz |

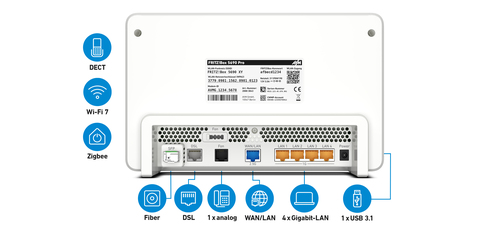

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| RJ-11 ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| Indication light | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DSL, LAN (RJ-45), Optical |
| AC adapter included | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
| Antenna type | 4x4 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power consumption (typical) | 13.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 75 mm |
| Height | 170 mm |
| Width | 268 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 377 mm |
| Package depth | 218 mm |
| Package height | 104 mm |
| Package weight | 1.48 kg |
