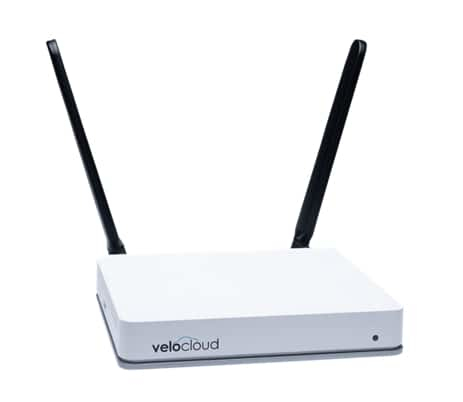

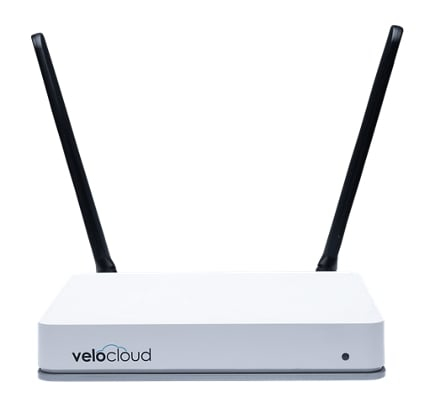

Dell SD-WAN EDGE 510-LTE

SD-WAN EDGE 510-LTE

Model SD-WAN EDGE 510-LTEPart no. 210-AWYC

61 specifications

Memory8000 MB
SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
Weight910 g
ColourWhite
Ethernet WANYes

See all specifications

Overview

Memory: 8000 MB
Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Weight: 910 g
Colour: White
Ethernet WAN: Yes

Brand: Dell
Category: Wireless Router
Model: SD-WAN EDGE 510-LTE
Part number: 210-AWYC
Also known as: DELL SD-WAN EDGE 510-LTE wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 4G White

Specifications

61 specifications in 16 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
SIM card slot	Yes
3G/4G USB modem compatibility	Yes

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	200 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.1ad
Flow control support	Yes
Dynamic DNS (DDNS)	Yes
Static route	Yes
VPN tunnels quantity	25

Mobile network

Specification	Value
Mobile network generation	4G
4G	Yes
Dual SIM support	Yes
4G standard	LTE

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	2
Micro-USB ports quantity	1

Management features

Specification	Value
Quality of Service (QoS) support	Yes
MIMO	Yes

Security

Specification	Value
Security algorithms	128-bit AES, 256-bit AES, SHA-1, SHA-2
Firewall	Yes
Filtering	Yes
MAC address filtering	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Routing protocols	BGP, MPLS, OSPF

Design

Specification	Value
Product type	Tabletop router
Product colour	White
Indication light	Yes

Certificates

Specification	Value
Compliance certificates	RoHS

Antenna

Specification	Value
Antenna design	External
Antennas quantity	2

Features

Specification	Value
Built-in processor	Yes
Processor cores	2
Internal memory	8000 MB
Flash memory	4000 MB
Mean time between failures (MTBF)	355656 h
Bluetooth	Yes

Power

Specification	Value
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	15 W

Operational conditions

Specification	Value
Non-operating altitude	0 - 950 m
Operating altitude	0 - 3048 m
Operating relative humidity (H-H)	5 - 85%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

Weight & dimensions

Specification	Value
Depth	180 mm
Height	39.7 mm
Weight	910 g
Width	206 mm

Other features

Specification	Value
Rack mounting	Yes
