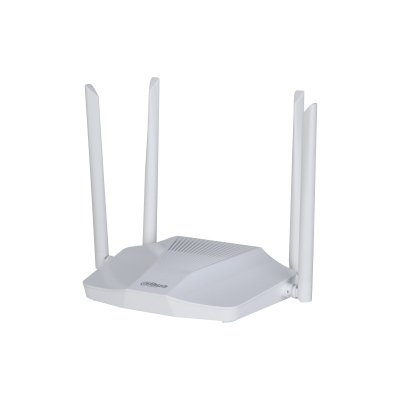

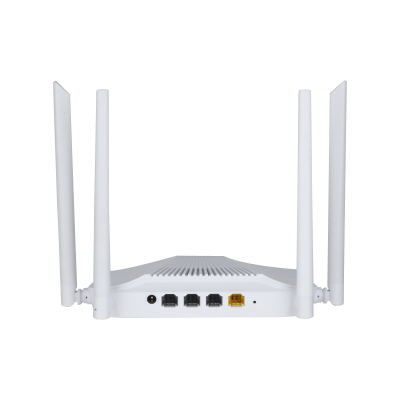

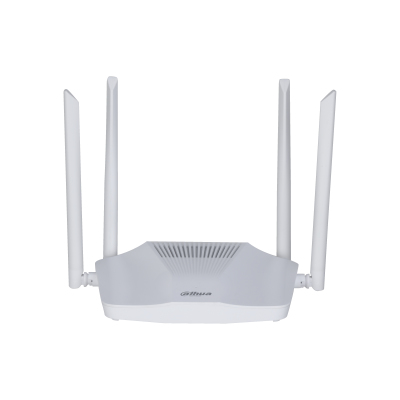

WR5200-IDC wireless router Dual-band (2.4 GHz
5 GHz) White
Model WR5200-IDCPart no. DH-WR5200-IDC
44 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypePortable router
- Weight710 g
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Portable router
- Weight
- 710 g
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- Dahua Technology
- Category
- Wireless Router
- Model
- WR5200-IDC
- Part number
- DH-WR5200-IDC
- Also known as
- Dahua Technology WR5200-IDC wireless router Dual-band (2.4 GHz / 5 GHz) White
Specifications
44 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Modulation | OFDM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB port | No |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Security
| Specification | Value |
|---|---|
| Guest access | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Portable router |
| Product colour | White |
| Indication light | Yes |
| LED indicators | LAN |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 4 |
Features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 0.6 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 200 mm |
| Height | 28 mm |
| Weight | 710 g |
| Width | 124.4 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 420 mm |
| Package depth | 297 mm |
| Package height | 420 mm |
| Package weight | 80 g |
| Package type | Box |
| Number of products included | 1 pc(s) |
