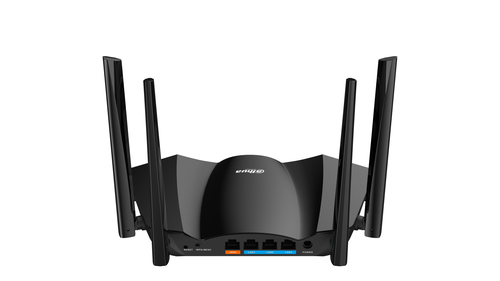

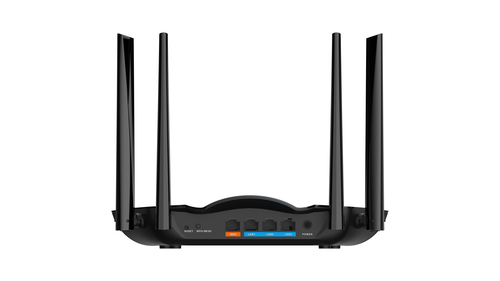

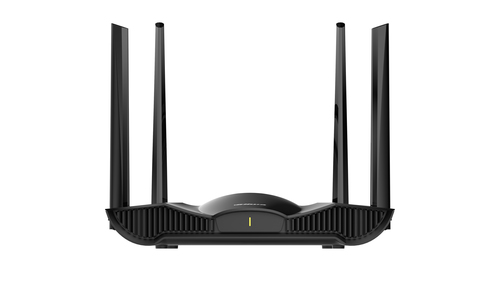

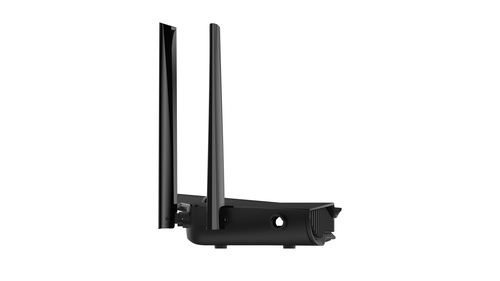

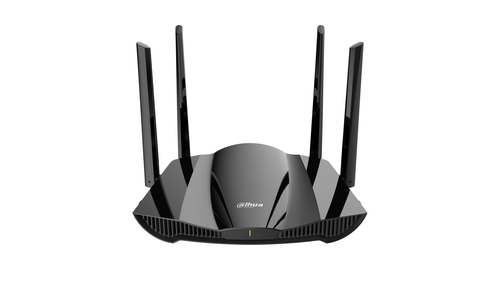

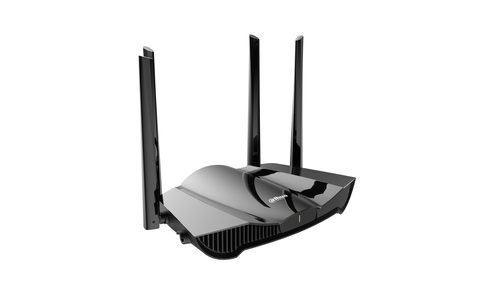

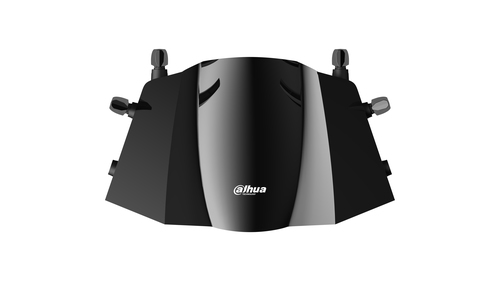

Dahua Technology AX30 AX3000 Wireless Router

Dahua Technology

AX30 AX3000 Wireless Router

Model AX30Part no. DH-AX30EAN 6923172599155

71 specifications

Memory256 MB
SpeedWi-Fi 6 (802.11ax)
TypeTabletop router
Weight360 g
ColourBlack
Ethernet WANYes

See all specifications

Overview

Memory: 256 MB
Speed: Wi-Fi 6 (802.11ax)
Type: Tabletop router
Weight: 360 g
Colour: Black
Ethernet WAN: Yes

Brand: Dahua Technology
Category: Wireless Router
Model: AX30
Part number: DH-AX30
EAN / UPC: 6923172599155
Also known as: Dahua Technology AX30 AX3000 Wireless Router

Specifications

71 specifications in 16 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	3000 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Channels quantity	165 channels
Channel bandwidth	160 MHz

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Automatic channel selection	Yes
Dynamic DNS (DDNS)	Yes
Receiver sensitivity	5 GHz 11ac VHT80_MCS0: -89 dbm 11ac VHT80_MCS9: -62 dbm 11ax VHT160_MCS0: -88 dbm 11ax VHT160_MCS11: -55 dbm 11ax HE80_MCS0: -89 dbm 11ax HE80_MCS11: -59 dbm 11ax HE160_MCS0: -85 dbm 11ax HE160_MCS11: -55 dbm 2.4 GHz 11n HT20_MCS0: -95 dbm 11n HT20_MCS7: -75 dbm 11n HT40_MCS0: -92 dbm 11n HT40_MCS7:

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
Intelligent Mesh technology	Yes
WPS push button	Yes
MIMO	Yes
MU-MIMO technology	Yes
Number of data streams	2x2

Security

Specification	Value
Security algorithms	WPA, WPA2-PSK, WPA3-PSK
Firewall	Yes
Parental control	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
Wall mountable	Yes
Indication light	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick start guide	Yes

Antenna

Specification	Value
Antenna design	External
Antenna type	2x2
Antenna gain level (max)	5 dBi
Antennas quantity	4

Features

Specification	Value
Internal memory	256 MB
Number of simultaneously connected devices (max)	128
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	DC
Output voltage	12 V
Output current	1.5 A
Power consumption (typical)	18 W
External power adapter	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C

Weight & dimensions

Specification	Value
Depth	262.2 mm
Height	184.5 mm
Weight	360 g
Width	150.1 mm

Packaging data

Specification	Value
Package width	295 mm
Package depth	470 mm
Package height	60 mm
Package weight	860 g
Number of products included	1 pc(s)

Other features

Specification	Value
Bandwidth (first)	2.472 GHz
Bandwidth (second)	5.33 GHz
Bandwidth (third)	5.835 GHz
