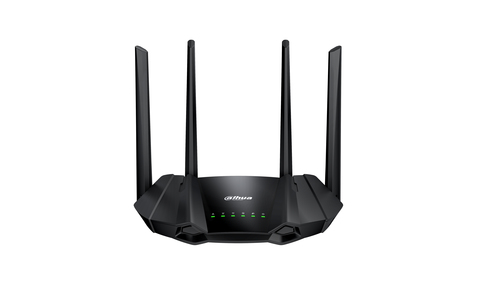

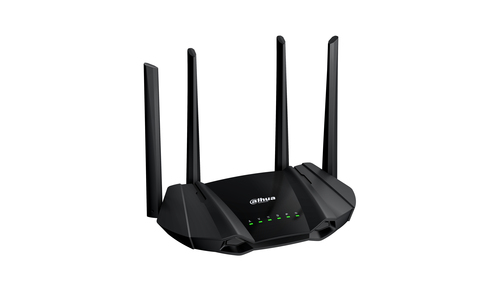

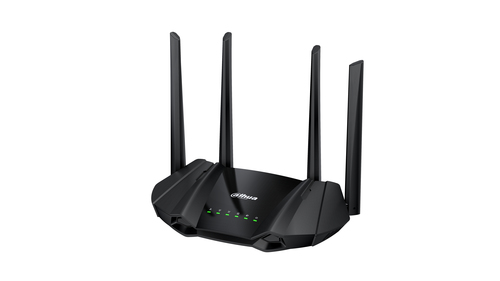

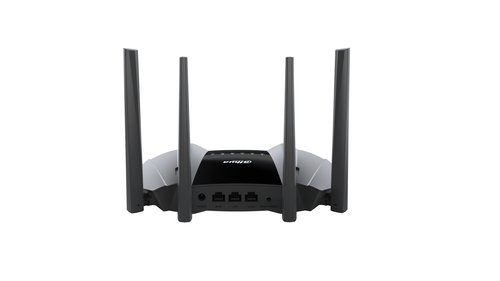

Dahua Technology AX15M AX1500 Wireless Router

Dahua Technology

AX15M AX1500 Wireless Router

Model AX15MPart no. DH-AX15MEAN 6923172562425

70 specifications

Memory128 MB
SpeedWi-Fi 6 (802.11ax)
TypeTabletop router
Weight260 g
ColourBlack
Ethernet WANYes

See all specifications

Overview

Memory: 128 MB
Speed: Wi-Fi 6 (802.11ax)
Type: Tabletop router
Weight: 260 g
Colour: Black
Ethernet WAN: Yes

Brand: Dahua Technology
Category: Wireless Router
Model: AX15M
Part number: DH-AX15M
EAN / UPC: 6923172562425
Also known as: Dahua Technology AX15M AX1500 Wireless Router

Specifications

70 specifications in 16 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1500 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s
Channels quantity	165 channels
Modulation	1024-QAM
Channel bandwidth	80 MHz

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Automatic channel selection	Yes
Dynamic DNS (DDNS)	Yes
Receiver sensitivity	2.4 GHz 11n HT20_MCS0: -95 dbm 11n HT20_MCS7: -75 dbm 11n HT40_MCS0: -92 dbm 11n HT40_MCS7: -72 dbm 5 GHz 11ac VHT80_MCS0: -89 dbm 11ac VHT80_MCS9: -62 dbm 11ax HE80_MCS0: -89 dbm 11ax HE80_MCS11: -59 dbm

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB port	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes
MIMO	Yes
MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	WPA-PSK, WPA2-PSK, WPA3
Guest access	Yes
Parental control	Yes
System event log	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
Indication light	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Manual	Yes

Antenna

Specification	Value
Antenna design	External
Antenna type	2x2
Antenna gain level (max)	5 dBi
Antennas quantity	4

Features

Specification	Value
Internal memory	128 MB
Flash memory	128 MB
Number of simultaneously connected devices (max)	32
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	DC
Output voltage	12 V
Output current	1 A
Power consumption (typical)	10 W
External power adapter	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C

Weight & dimensions

Specification	Value
Depth	215 mm
Height	173 mm
Weight	260 g
Width	119 mm

Packaging data

Specification	Value
Package width	285 mm
Package depth	295 mm
Package height	70 mm
Package weight	560 g
Number of products included	1 pc(s)

Other features

Specification	Value
Bandwidth (first)	2.484 GHz
Bandwidth (second)	5.85 GHz
