AQUILA PRO AI AX3000 Wi-Fi 6 Smart Mesh Router
Model M30Part no. M30/BEAN 790069472855
59 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- Weight295 g
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Weight
- 295 g
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- D-Link
- Category
- Wireless Router
- Model
- M30
- Part number
- M30/B
- EAN / UPC
- 790069472855
- Also known as
- D-Link AQUILA PRO AI AX3000 Wi-Fi 6 Smart Mesh Router
Specifications
59 specifications in 18 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 3000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11h, IEEE 802.11k, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u |
| Dynamic DNS (DDNS) | Yes |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | Not supported |

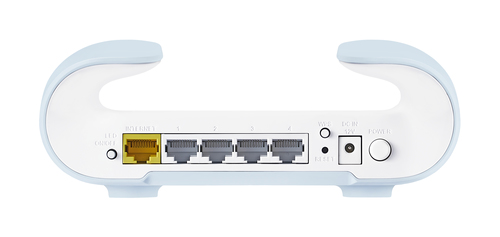

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Intelligent Mesh technology | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DDoS protection | Yes |
| Parental control | Yes |
| MAC address filtering | Yes |
| DMZ support | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | IPv4, IPv6 |

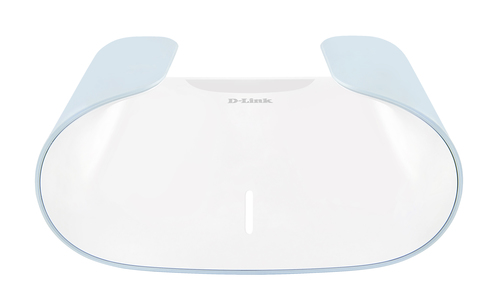

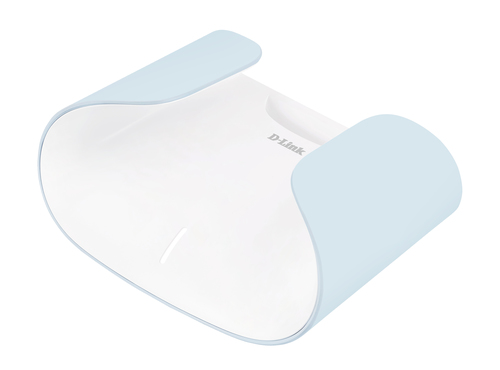

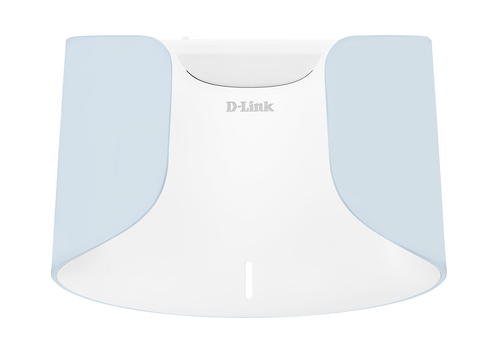

Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| LED indicators | Power, Status, WPS |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), NCC |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
| Antennas quantity | 5 |
Features
| Specification | Value |
|---|---|
| Works with Amazon Alexa | Yes |
| Works with the Google Assistant | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (typical) | 14.54 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 65 °C |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 129.2 mm |
| Height | 66 mm |
| Weight | 295 g |
| Width | 181.5 mm |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Country of origin | Taiwan |
