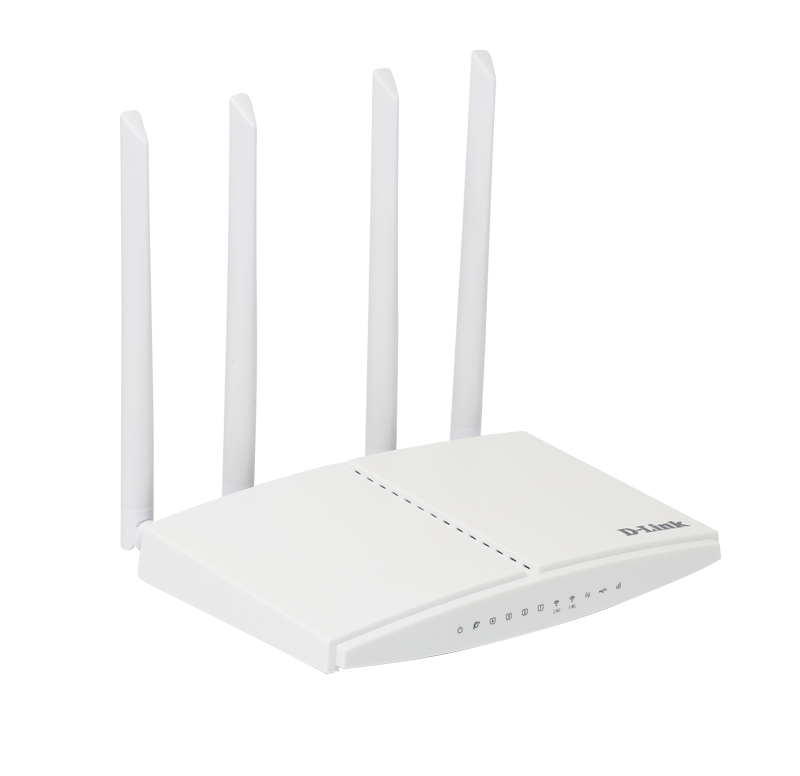

DWR-M961 wireless router Gigabit Ethernet Dual-band (2.4 GHz
5 GHz) 4G White
Model DWR-M961
62 specifications
- Memory64 MB
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Memory
- 64 MB
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- D-Link
- Category
- Wireless Router
- Model
- DWR-M961
- Part number
- DWR-M961
- Also known as
- D-Link DWR-M961 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 4G White
Specifications
62 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1167 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Flow control support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Static route | Yes |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | 4G |
| 3G | Yes |
| 4G | Yes |
| Dual SIM support | Yes |
| 2G standards | GSM |
| 3G standards | WCDMA |
| 4G standard | LTE-TDD & LTE-FDD |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Memory card slot(s) | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| URL filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS, CCC, CE, FCC |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 4 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| Safety | UL |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 90 °C |
Packaging data
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
