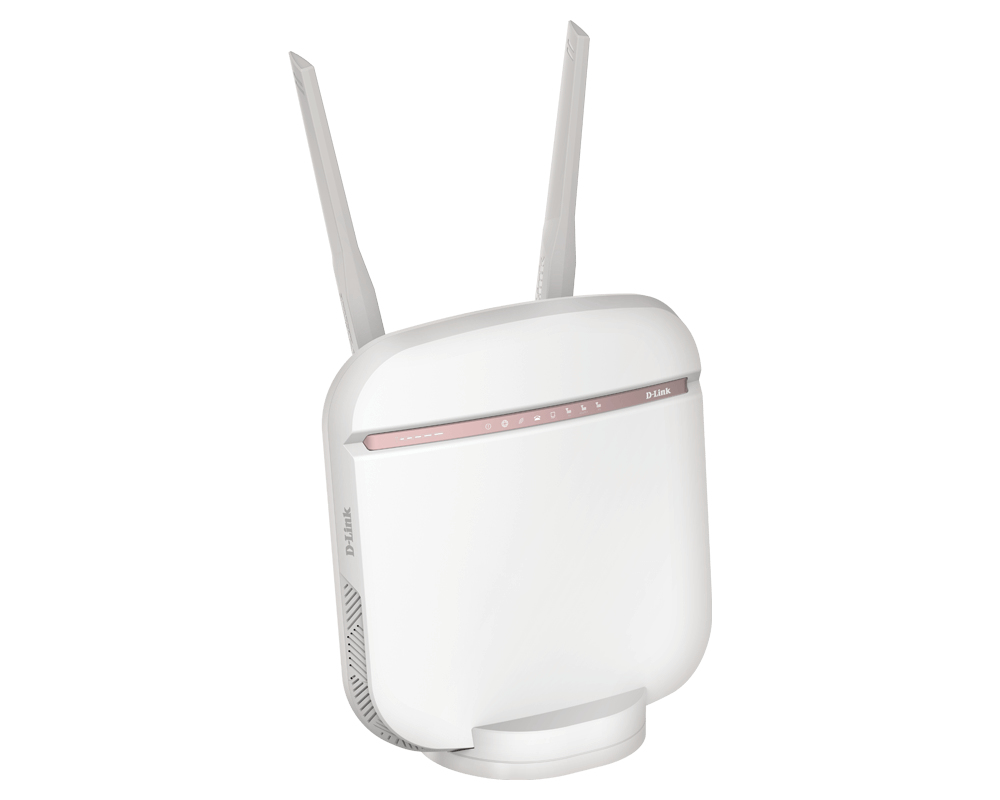

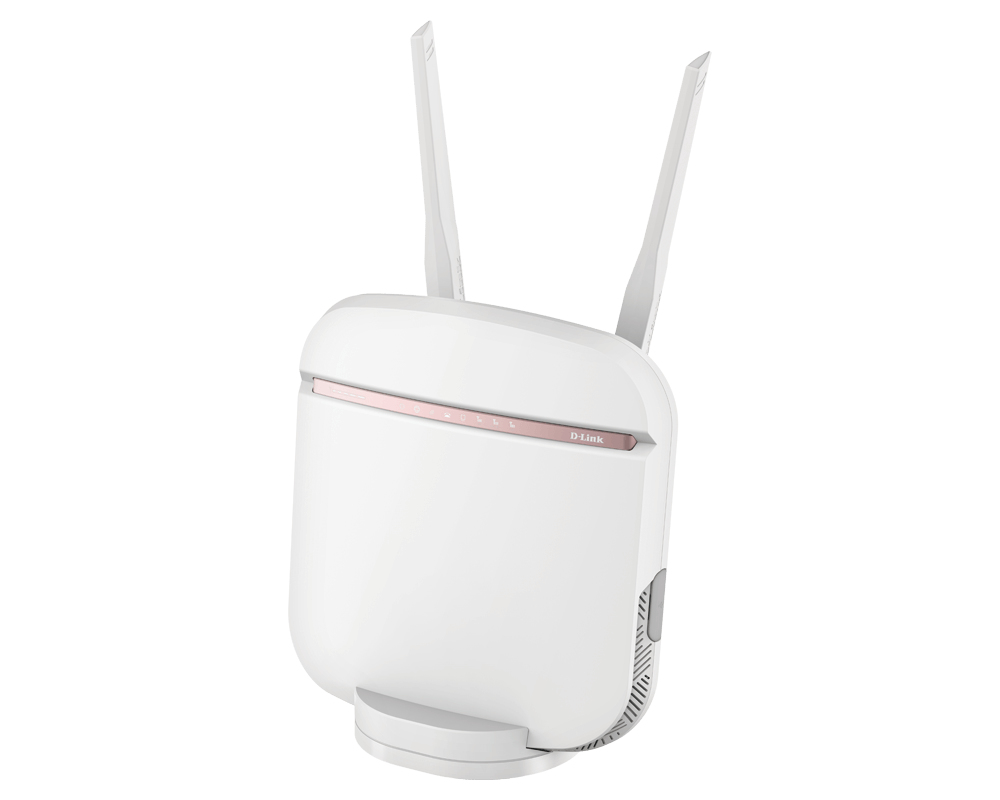

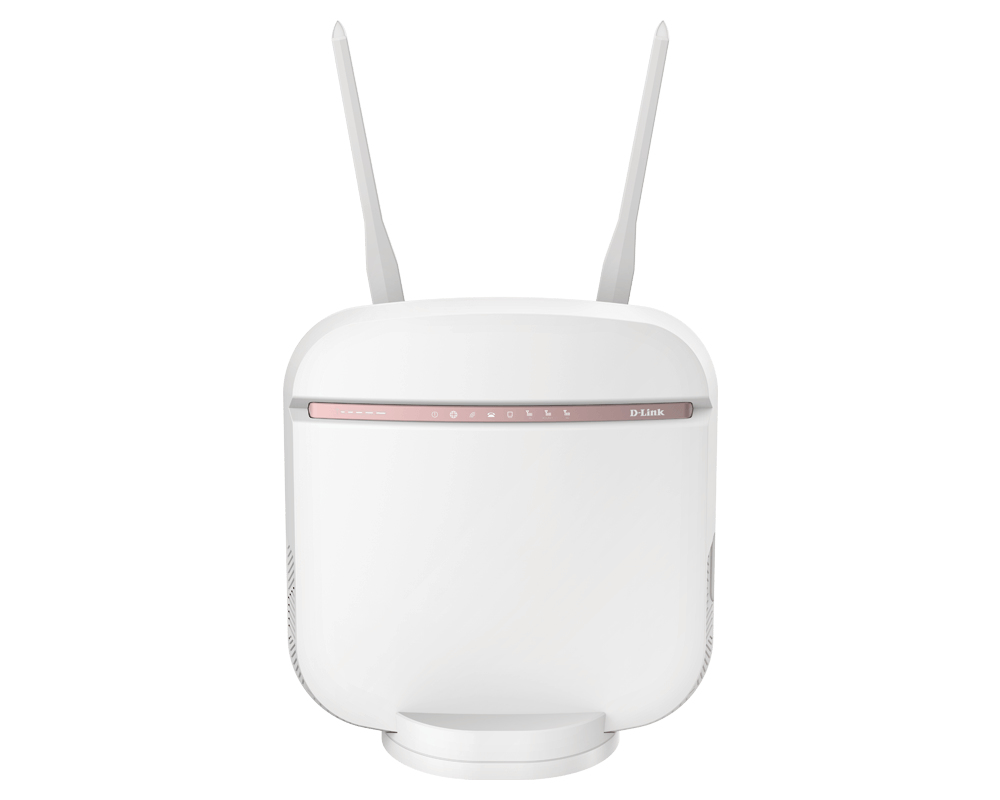

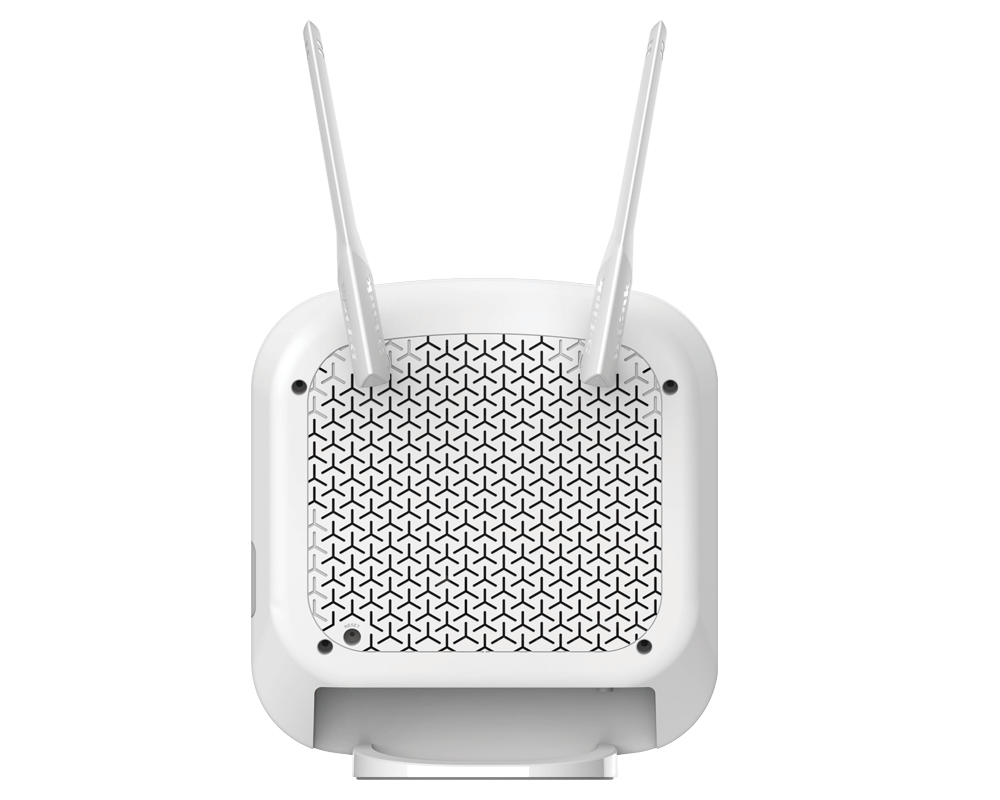

DWR-978 wireless router Gigabit Ethernet Dual-band (2.4 GHz
5 GHz) 5G White
Model DWR-978
60 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- Weight920 g
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Weight
- 920 g
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- D-Link
- Category
- Wireless Router
- Model
- DWR-978
- Part number
- DWR-978
- Also known as
- D-Link DWR-978 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 5G White
Specifications
60 specifications in 17 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 2600 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 800 Mbit/s |
| WLAN data transfer rate (second band) | 1733 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11k, IEEE 802.11r, IEEE 802.11v |
| VPN Passthrough | Yes |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | 5G |
| 3G | Yes |
| 4G | Yes |
| 5G | Yes |
| Dual SIM support | No |
| 3G standards | WCDMA |
| 4G standard | LTE-FDD |
| SIM card type | NanoSIM |
Ports & interfaces
| Specification | Value |
|---|---|

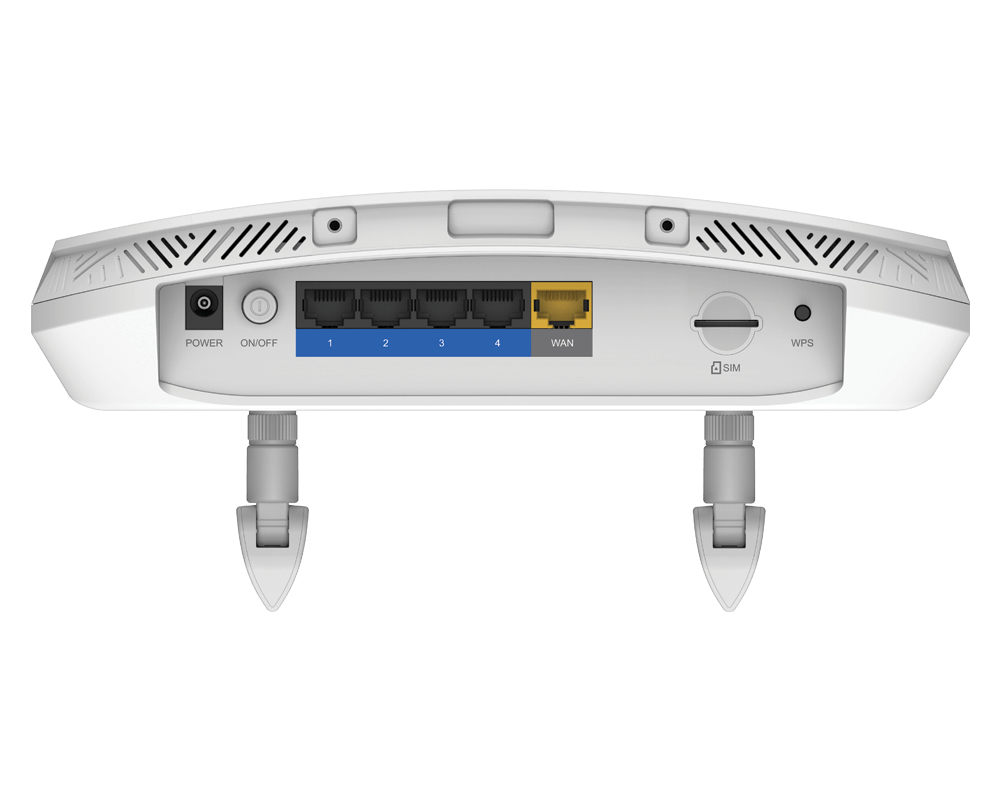

| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| LED indicators | LTE, Power, WAN, WLAN |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal & external |
| Antennas quantity | 8 |
| Detachable antenna(s) | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 1 A |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -10 - 70 °C |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 245 mm |
| Height | 55.2 mm |
| Weight | 920 g |
| Width | 234.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
