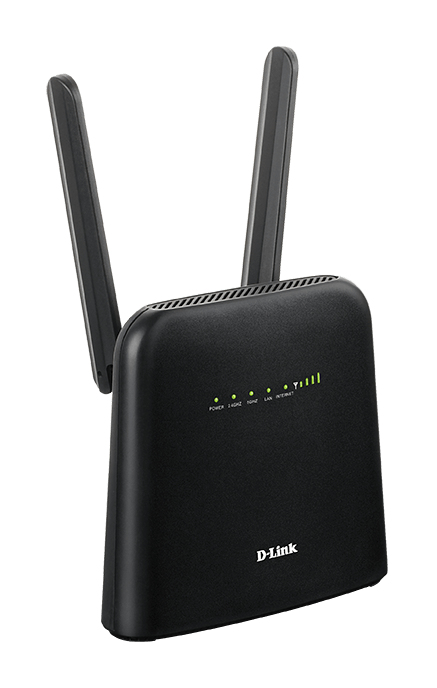

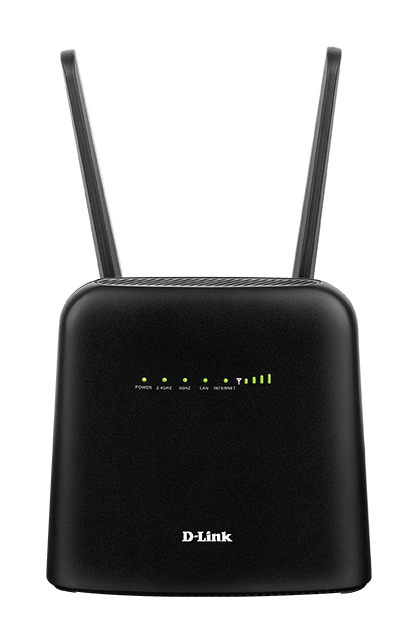

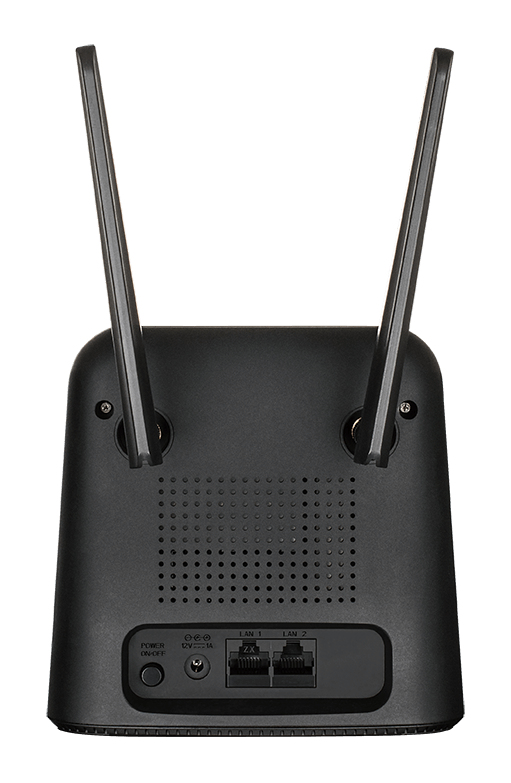

LTE Cat7 Wi-Fi AC1200 Router
Model DWR-960EAN 790069460111
55 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypePortable router
- Weight300 g
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Portable router
- Weight
- 300 g
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- D-Link
- Category
- Wireless Router
- Model
- DWR-960
- Part number
- DWR-960
- EAN / UPC
- 790069460111
- Also known as
- D-Link LTE Cat7 Wi-Fi AC1200 Router
Specifications
55 specifications in 17 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1200 Mbit/s |
| Wi-Fi standards | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 866 Mbit/s |
| WLAN data transfer rate (second band) | 300 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11ac, IEEE 802.11n |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | 4G |
| 3G | Yes |
| 4G | Yes |
| 2G standards | GPRS, GSM |
| 3G standards | UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 3G bands supported | 900,2100 MHz |
| 4G bands supported | 800,900,1800,2100,2600 MHz |
| GSM bands supported | 850,900,1800,1900 MHz |

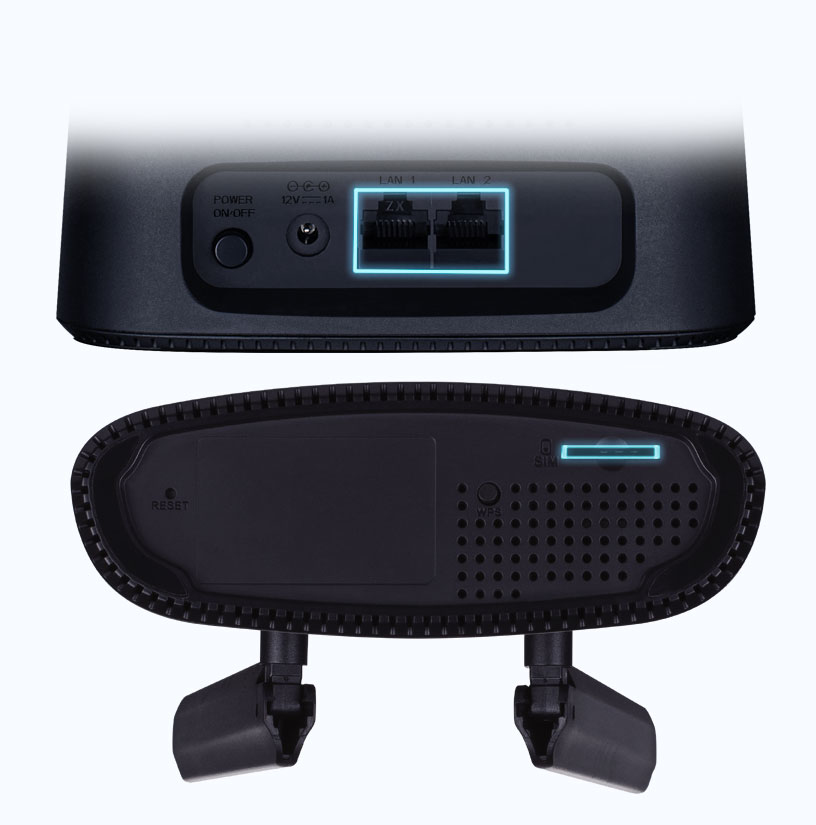

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA2 |
| Stateful Packet Inspection (SPI) | Yes |
| MAC address filtering | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Portable router |
| Product colour | Black |

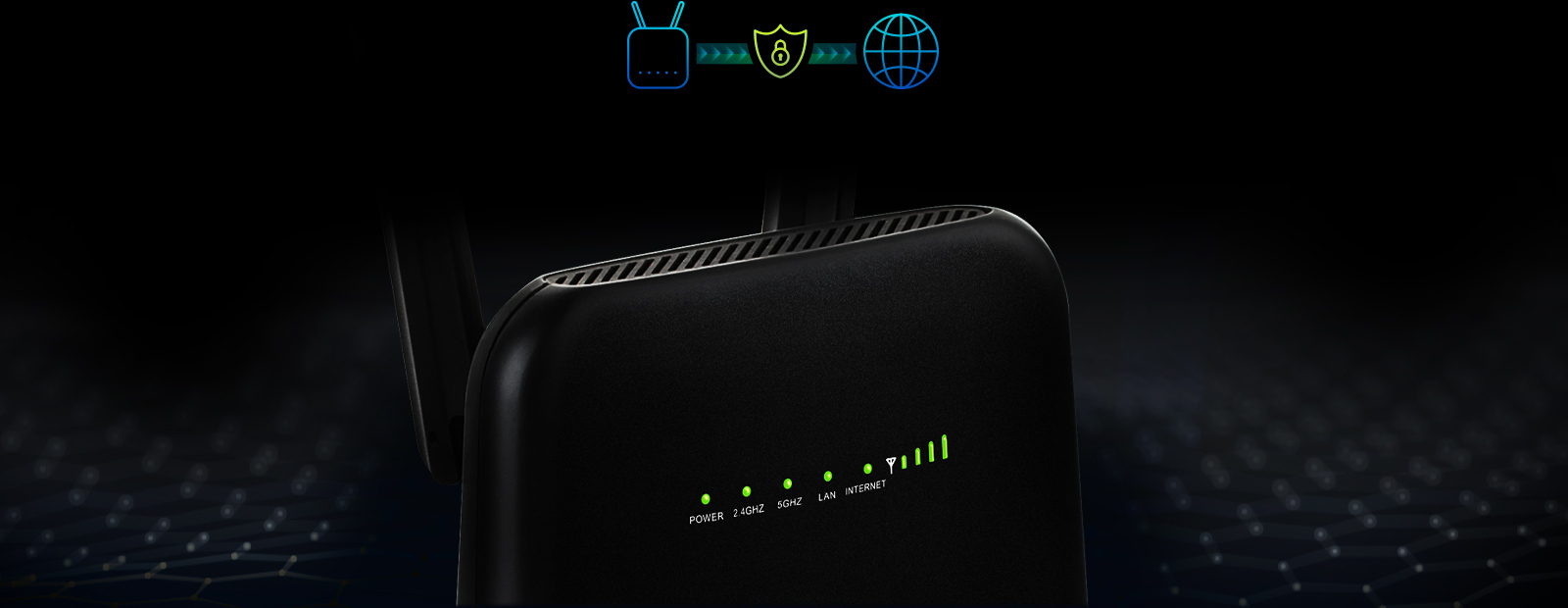

| LED indicators | LAN, Power, WLAN |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Antenna included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Detachable antenna(s) | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -10 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 126 mm |
| Height | 44 mm |
| Weight | 300 g |
| Width | 132 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
