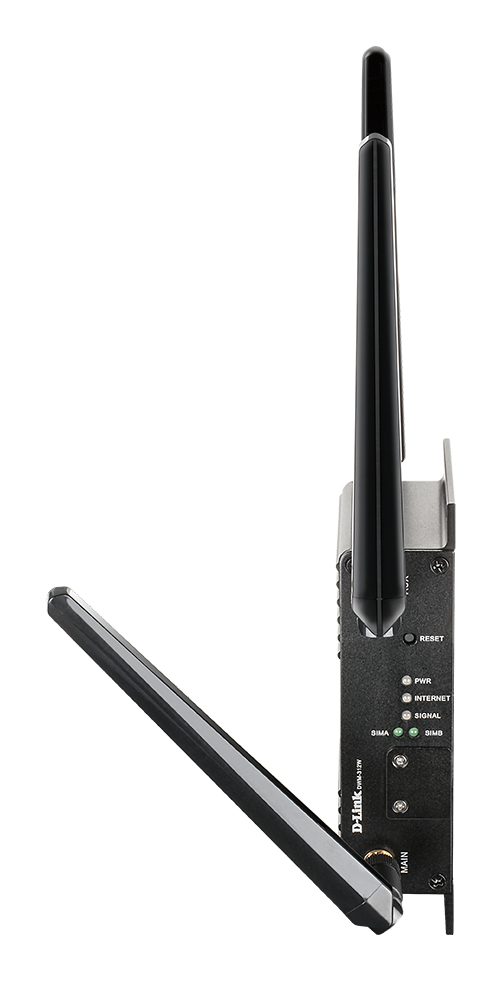

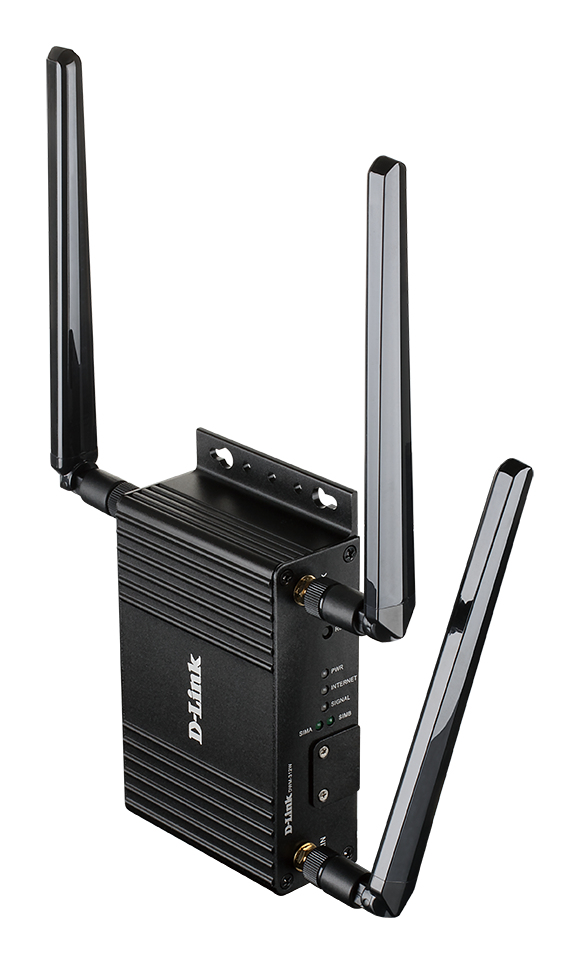

4G LTE M2M WiFi Router DWM-312W
Model DWM-312WEAN 790069453045
62 specifications
- SpeedWi-Fi 4 (802.11n)
- TypeDesktop/pole router
- Weight500 g
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandSingle-band (2.4 GHz)
Overview
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Desktop/pole router
- Weight
- 500 g
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Single-band (2.4 GHz)
- Brand
- D-Link
- Category
- Wireless Router
- Model
- DWM-312W
- Part number
- DWM-312W
- EAN / UPC
- 790069453045
- Also known as
- D-Link 4G LTE M2M WiFi Router DWM-312W
Specifications
62 specifications in 17 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.3i, IEEE 802.3u |
| Flow control support | Yes |
| Dynamic DNS (DDNS) | Yes |
| VPN Passthrough | Yes |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | 4G |
| Dual SIM support | Yes |
| 2G standards | Edge, GPRS, GSM |
| 3G standards | DC-HSDPA, HSPA, UMTS |

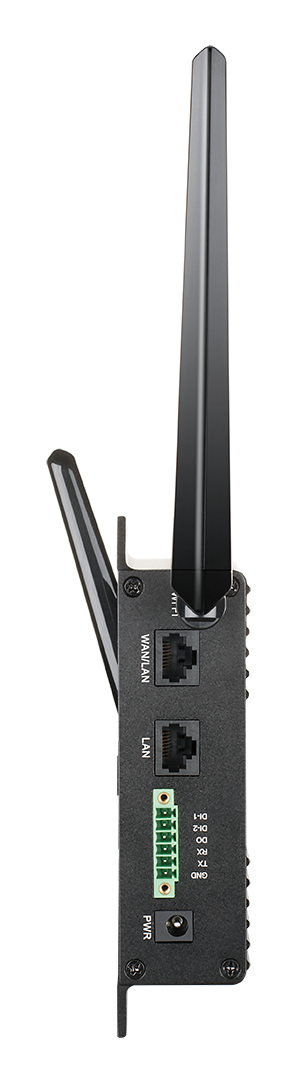

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit AES |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| DMZ support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| Routing protocols | BGP, OSPFv2 |
Design
| Specification | Value |
|---|---|
| Product type | Desktop/pole router |
| Product colour | Black |

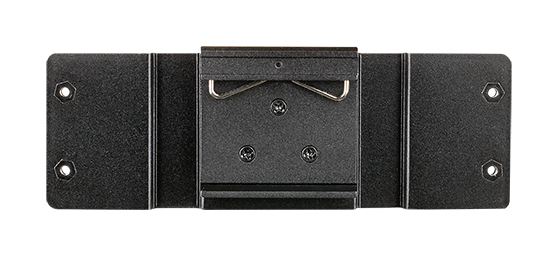

| Wall mountable | Yes |
| LED indicators | Activity, Power, Status |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Antenna included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna type | 1x1 |
| Antenna connector type | SMA |
| Antennas quantity | 3 |
Features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 9 - 36 V |
| Output current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -30 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 76 mm |
| Height | 32 mm |
| Weight | 500 g |
| Width | 134 mm |
Packaging data
| Specification | Value |
|---|---|
| Screws included | Yes |
