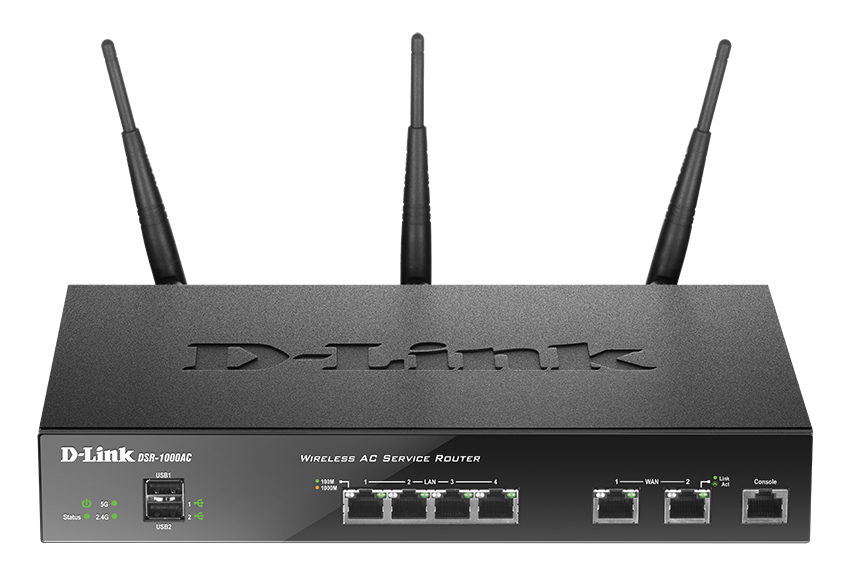

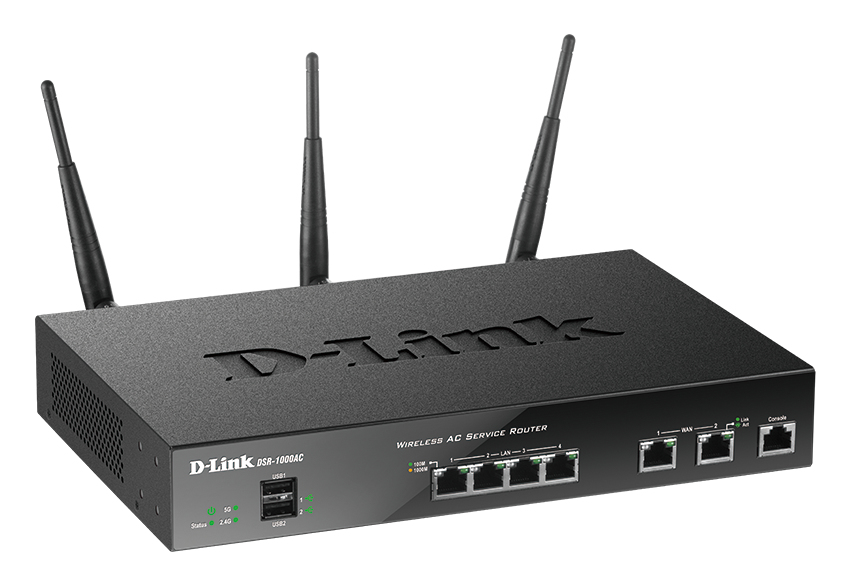

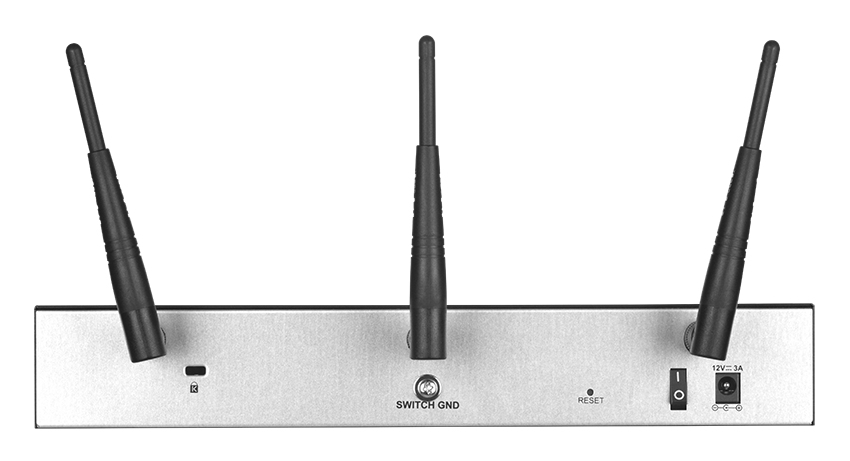

D-Link DSR-1000AC wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) Black

Model DSR-1000ACEAN 790069415517

70 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
Weight1.73 kg
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Weight: 1.73 kg
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Brand: D-Link
Category: Wireless Router
Model: DSR-1000AC
Part number: DSR-1000AC
EAN / UPC: 790069415517, 790069416606, 790069416699
Also known as: D-Link DSR-1000AC wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

70 specifications in 16 groups

WAN connection

Specification	Value
Ethernet WAN	Yes

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.1Q
Flow control support	Yes
VPN tunnels quantity	155
VPN support	3DES

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	2

Security

Specification	Value
Security algorithms	WEP, WPA, WPA-EAP, WPA2, WPS
Firewall	Yes
Guest access	Yes
Port-based Network Access Control (PNAC)	Yes
DoS attack prevention	Yes
Filtering	Yes
IP address filtering	Yes
URL filtering	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Black

Packaging content

Specification	Value
AC adapter included	No
Manual	Yes
Quick start guide	Yes

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	2 dBi
Antennas quantity	3

Features

Specification	Value
Mean time between failures (MTBF)	360000 h

Power

Specification	Value
Output voltage	12 V
Output current	3 A
Power consumption (typical)	23.1 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C

Weight & dimensions

Specification	Value
Depth	180 mm
Height	44 mm
Weight	1.73 kg
Width	280 mm

Packaging data

Specification	Value
Package width	273 mm
Package depth	396 mm
Package height	80 mm
Package weight	2.63 kg

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Master (outer) cases per pallet (air)	36 pc(s)
Master (outer) cases per pallet (sea)	48 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	429.8 kg
Pallet gross weight (sea)	565.8 kg
Pallet gross width	120 cm
Pallet height (air)	141.9 cm
Pallet height (sea)	184.2 cm
Products per pallet (air)	144 pc(s)
Products per pallet (sea)	192 pc(s)
Products per shipping (inner) case	4 pc(s)
Shipping (inner) case gross weight	11.3 kg
Shipping (inner) case height	42.8 cm
Shipping (inner) case length	35.4 cm
Shipping (inner) case net weight	10.5 kg
Shipping (inner) case width	29.6 cm

Other features

Specification	Value
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
WLAN data transfer rates supported	1300 Mbit/s
