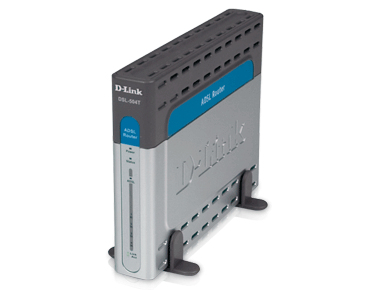

D-Link DSL 504T

D-Link DSL 504T

Model DSL 504TPart no. DSL-504TEAN 790069265198

31 specifications

Speed0.1 Gbit/s
Weight332 g
Ethernet WANYes
Ethernet LAN (RJ-45) ports0
Authentication methodPAP, CHAP
DHCP clientNo

See all specifications

Overview

Speed: 0.1 Gbit/s
Weight: 332 g
Ethernet WAN: Yes
Ethernet LAN (RJ-45) ports: 0
Authentication method: PAP, CHAP
DHCP client: No

Brand: D-Link
Category: Wireless Router
Model: DSL 504T
Part number: DSL-504T
EAN / UPC: 790069265198, 790069269745
Also known as: D-Link DSL 504T wireless router Fast Ethernet

Specifications

31 specifications in 12 groups

WAN connection

Specification	Value
Ethernet WAN	Yes

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u

DSL features

Specification	Value
ADSL	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	0

Management features

Specification	Value
Web-based management	Yes

Security

Specification	Value
Authentication method	PAP, CHAP
MAC address filtering	No

Protocols

Specification	Value
DHCP client	No
DHCP server	No
Switching protocols	Ethernet
Routing protocols	RIP-1, RIP-2
Management protocols	SNMP, Telnet, HTTP
Data link protocols	Ethernet, Fast Ethernet

Design

Specification	Value
LED indicators	Power

Power

Specification	Value
Power consumption (typical)	12 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	5 - 40 °C

Weight & dimensions

Specification	Value
Weight	332 g

Other features

Specification	Value
Data transfer rate	100 Mbit/s
Dimensions (WxDxH)	180 x 114 x 30 mm
Downstream data rate	8 Mbit/s
Maximum data transfer rate	0.1 Gbit/s
Networking features	TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, PPPoA
Power requirements	12 V DC 1.2A
Upstream data rate	1 Mbit/s
xDSL connection	Yes
Digital signal protocol	ADSL
I/O ports	4 x network - Ethernet 10Base-T/100Base-TX - RJ-45 1 x modem - ADSL - RJ-11 ( WAN ) 1 x management - RS-232 - 9 pin D-Sub (DB-9)
