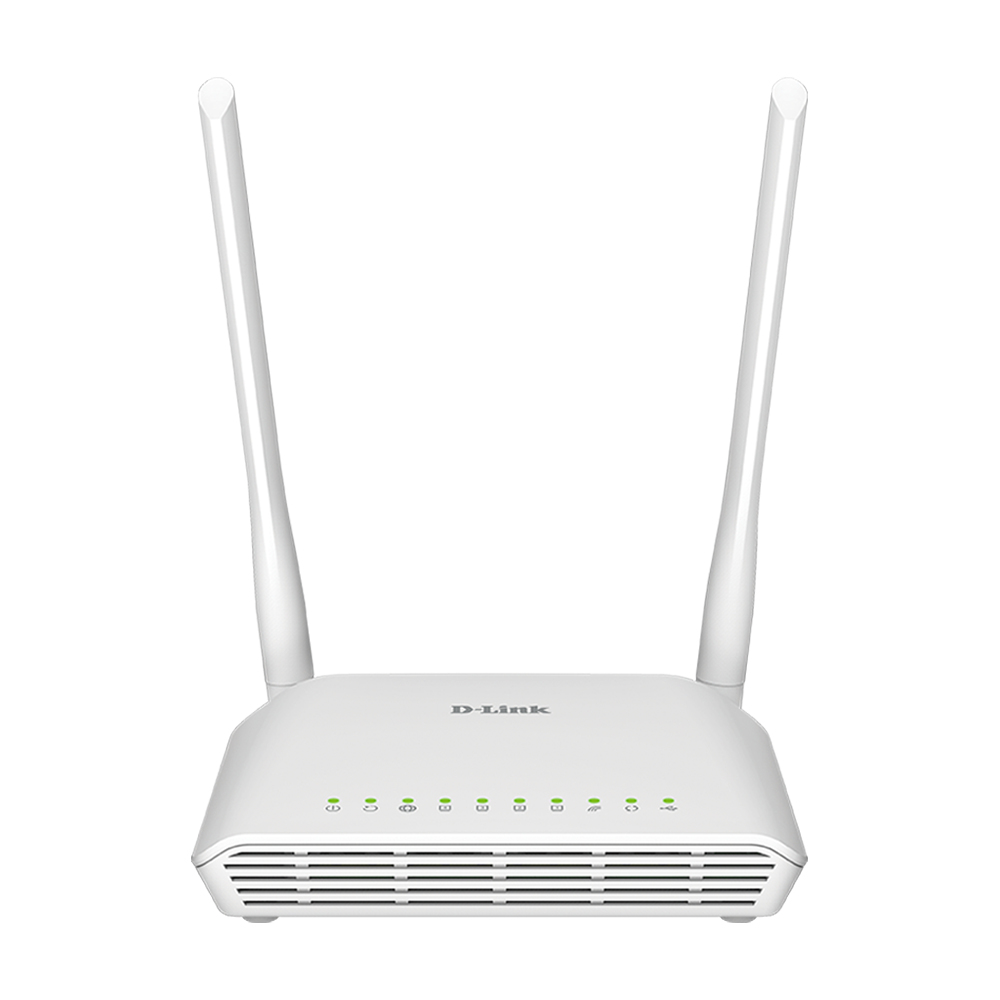

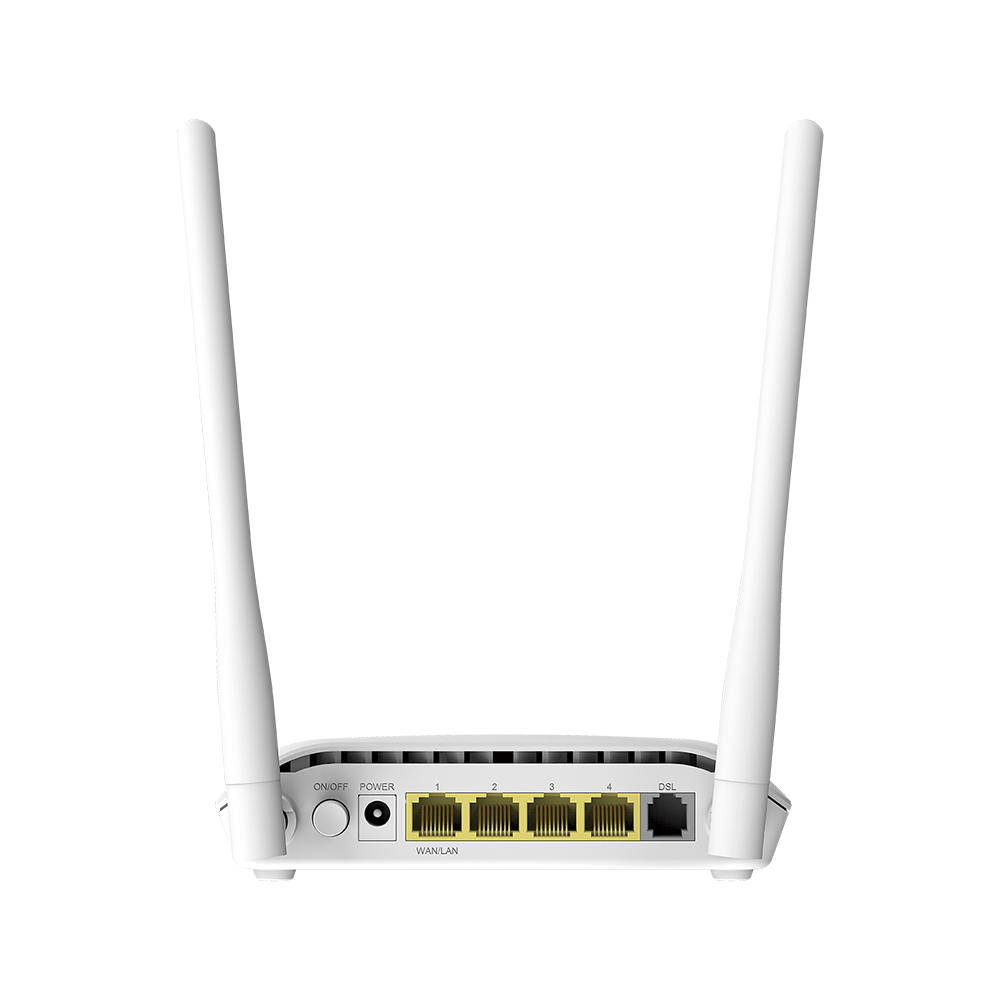

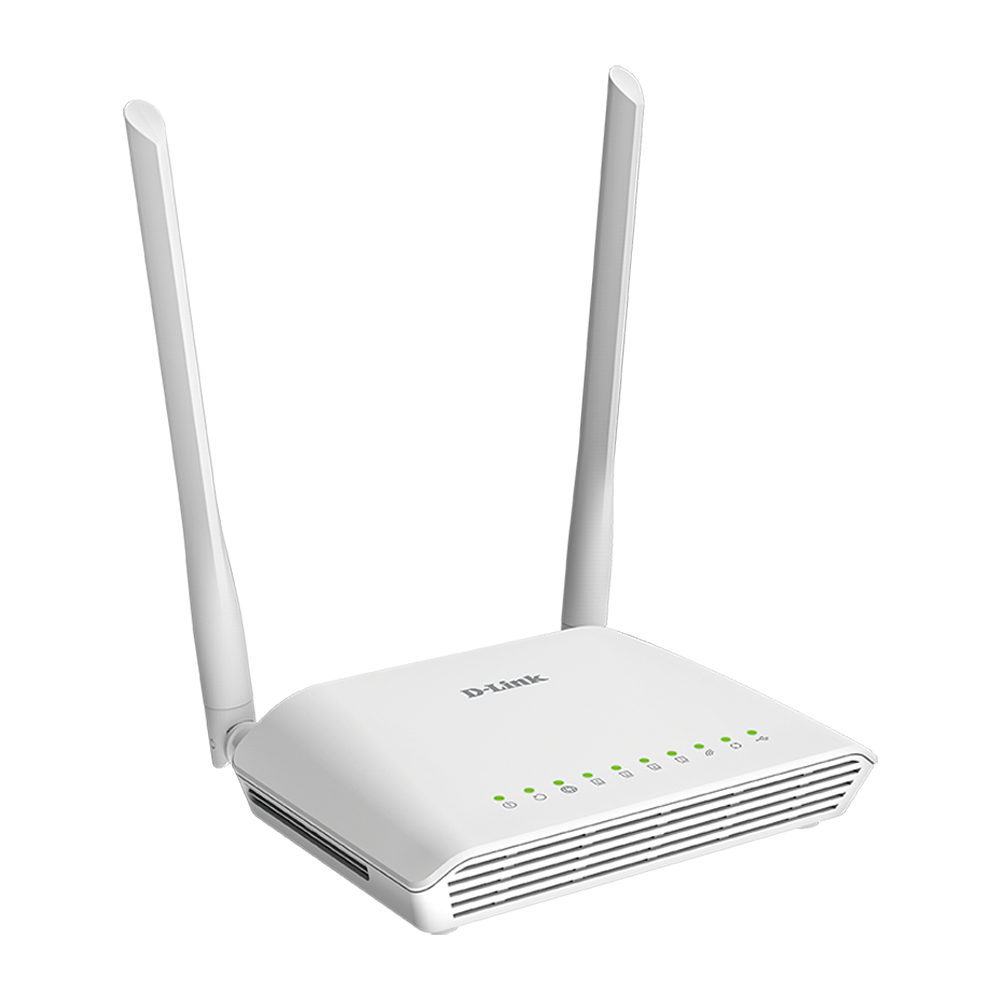

DSL-226 wireless router Fast Ethernet Single-band (2.4 GHz) White
Model DSL-226EAN 790069470745
39 specifications
- SpeedWi-Fi 4 (802.11n)
- TypeTabletop router
- Weight150 g
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandSingle-band (2.4 GHz)
Overview
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Tabletop router
- Weight
- 150 g
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Single-band (2.4 GHz)
- Brand
- D-Link
- Category
- Wireless Router
- Model
- DSL-226
- Part number
- DSL-226
- EAN / UPC
- 790069470745
- Also known as
- D-Link DSL-226 wireless router Fast Ethernet Single-band (2.4 GHz) White
Specifications
39 specifications in 14 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3i, IEEE 802.3u |
| Wireless Distribution System (WDS) bridge | Yes |
| VPN Passthrough | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA2, WPS |
| Stateful Packet Inspection (SPI) | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 100.1 mm |
| Height | 35 mm |
| Weight | 150 g |
| Width | 141.2 mm |
