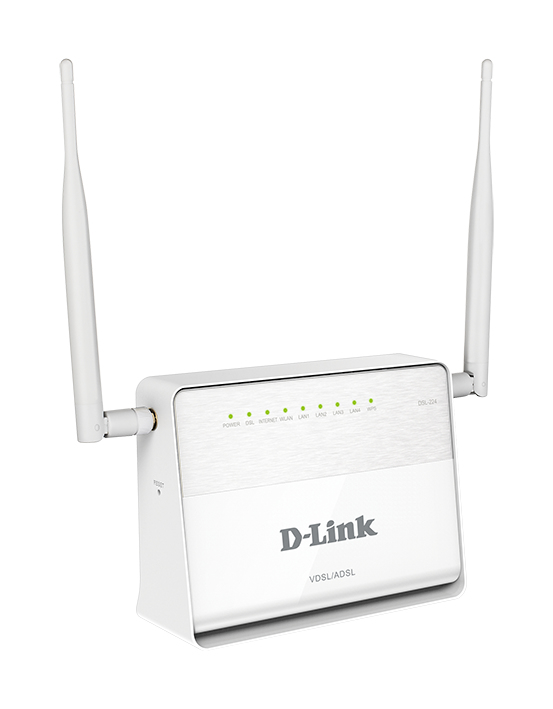

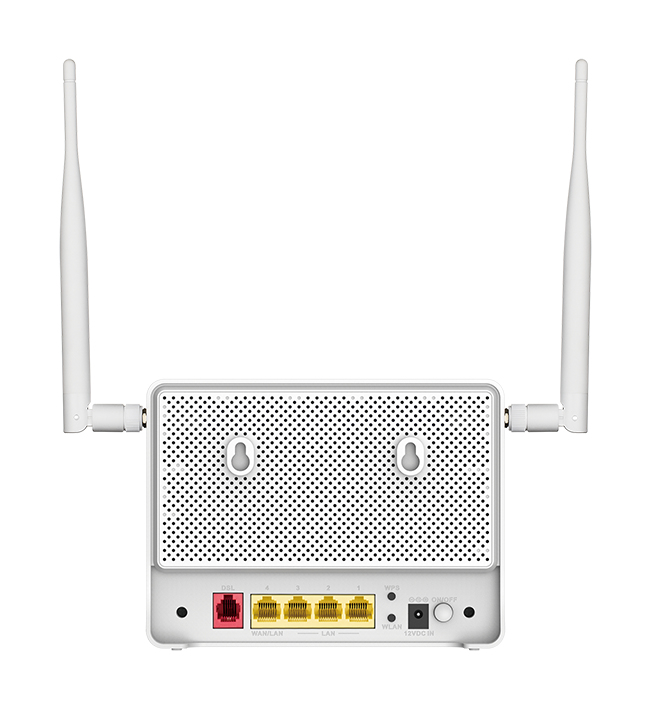

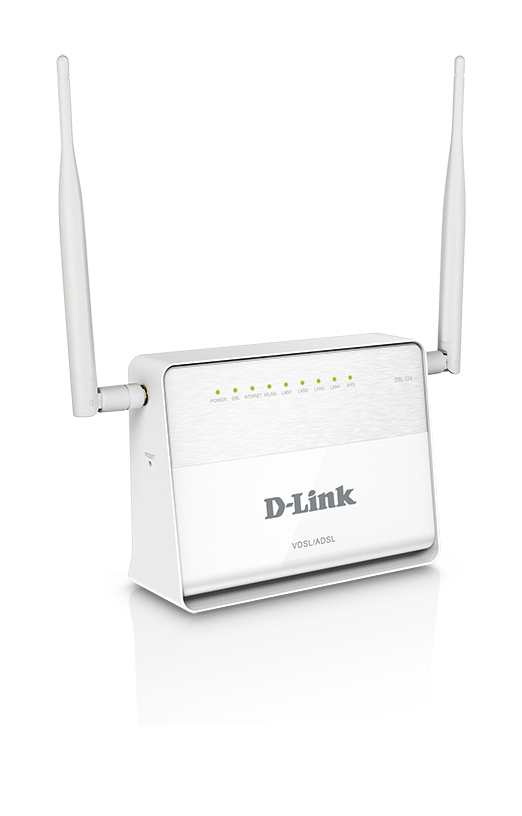

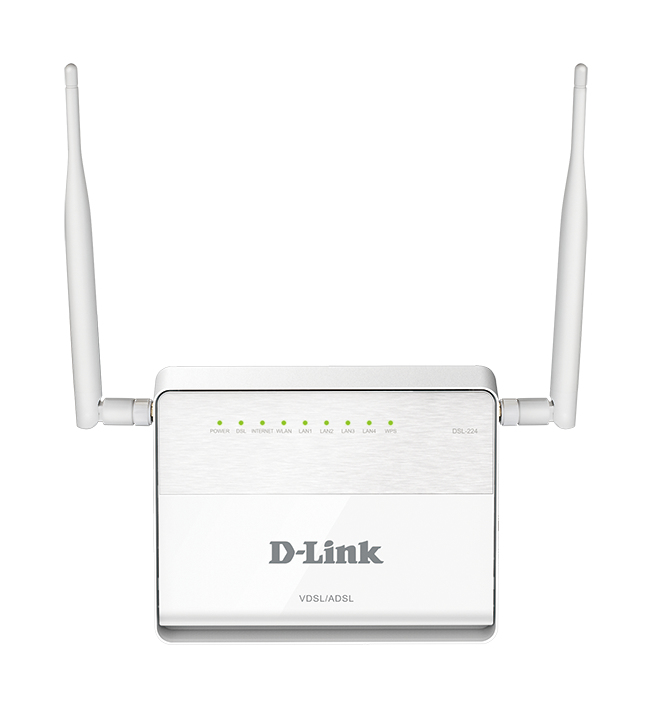

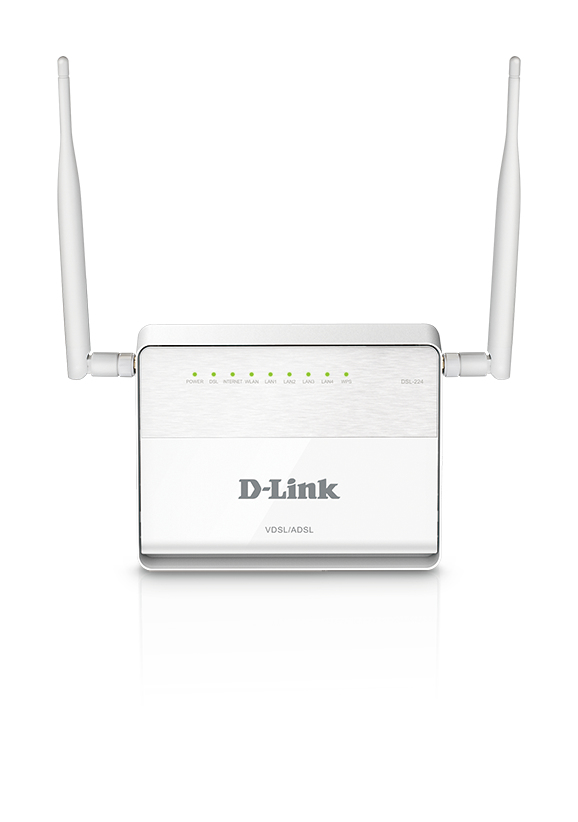

DSL-224 wireless router Fast Ethernet Single-band (2.4 GHz) White
Model DSL-224
64 specifications
- Memory32 MB
- SpeedWi-Fi 4 (802.11n)
- TypeTabletop router
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandSingle-band (2.4 GHz)
Overview
- Memory
- 32 MB
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Tabletop router
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Single-band (2.4 GHz)
- Brand
- D-Link
- Category
- Wireless Router
- Model
- DSL-224
- Part number
- DSL-224
- Also known as
- D-Link DSL-224 wireless router Fast Ethernet Single-band (2.4 GHz) White
Specifications
64 specifications in 17 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-11 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 100 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| VPN Passthrough | Yes |
| VPN support | IPSec/PPTP/L2TP/PPPoE |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| ADSL2 | Yes |
| VDSL | Yes |
| VDSL2 | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| RJ-11 ports quantity | 1 |
| Memory card slot(s) | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Web-based setup wizard | Yes |
| Quality of Service (QoS) support | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WDS, WEP, WMM, WPA, WPA2, WPS |
| Stateful Packet Inspection (SPI) | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| System event log | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| LED indicators | DSL, LAN, Power, WAN, WLAN, WPS |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna gain level (max) | 2 dBi |
| Antennas quantity | 2 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Internal memory | 32 MB |
| Flash memory | 8 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.4 Tiger |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 26 mm |
| Height | 114 mm |
| Width | 172 mm |
