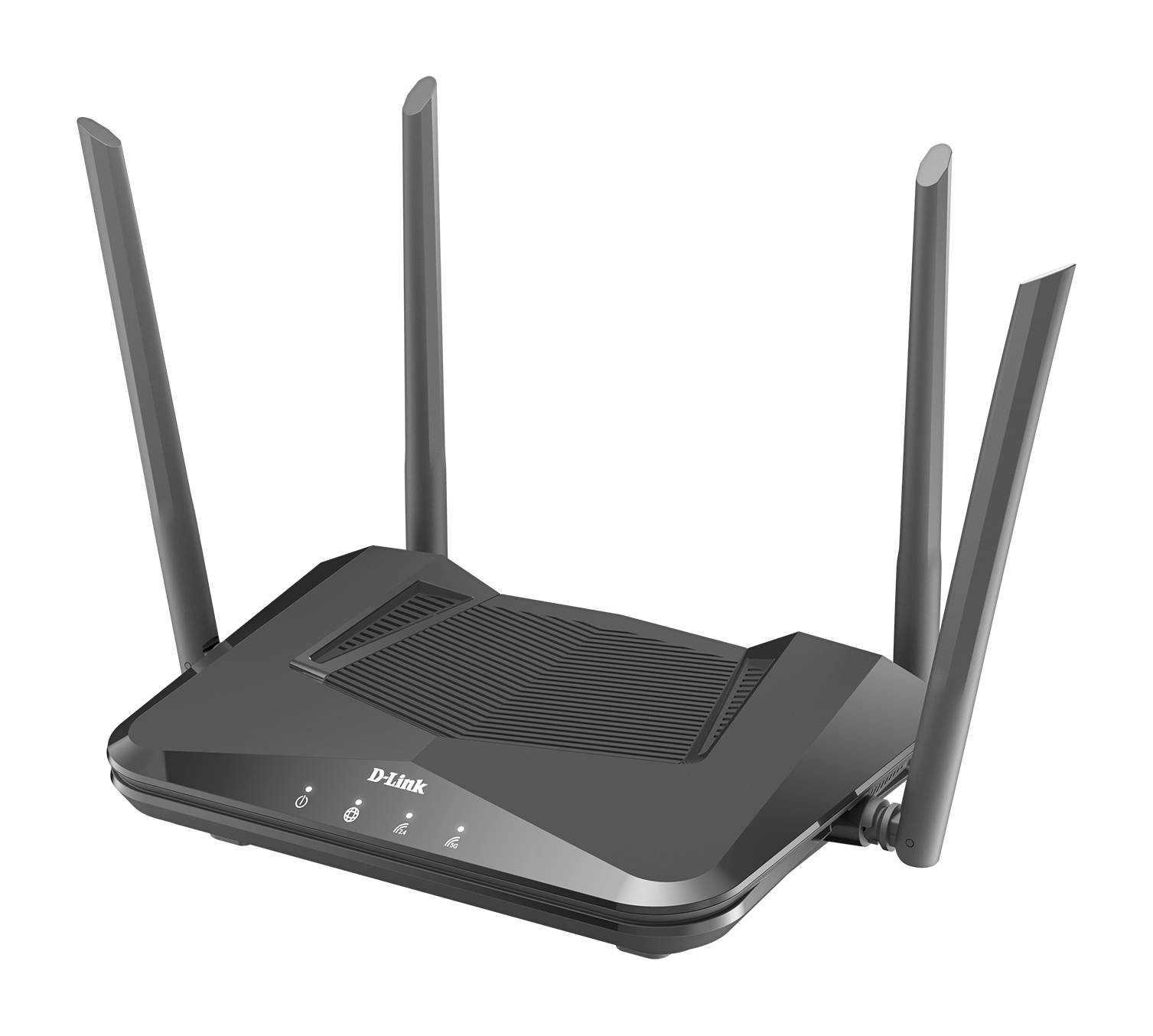

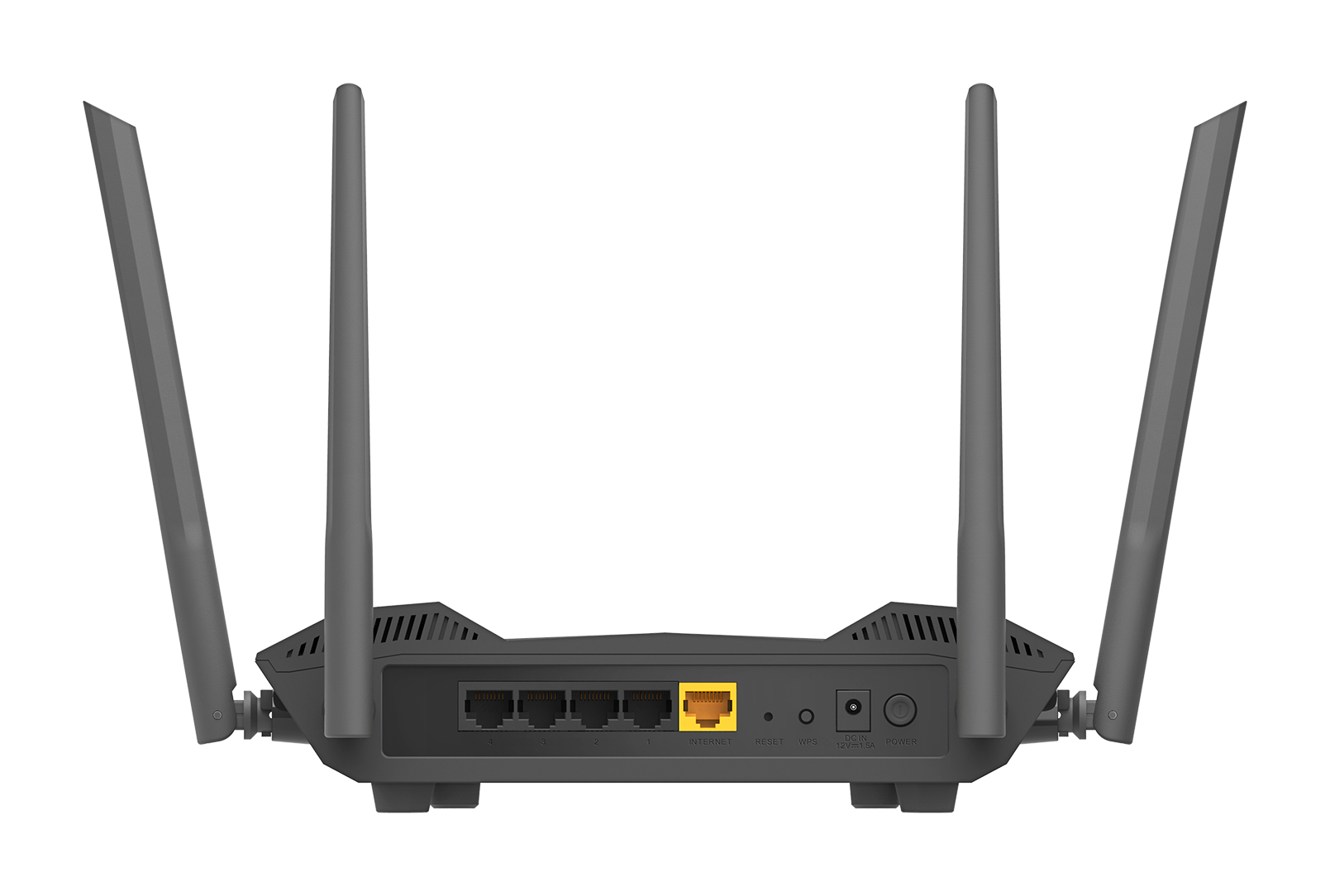

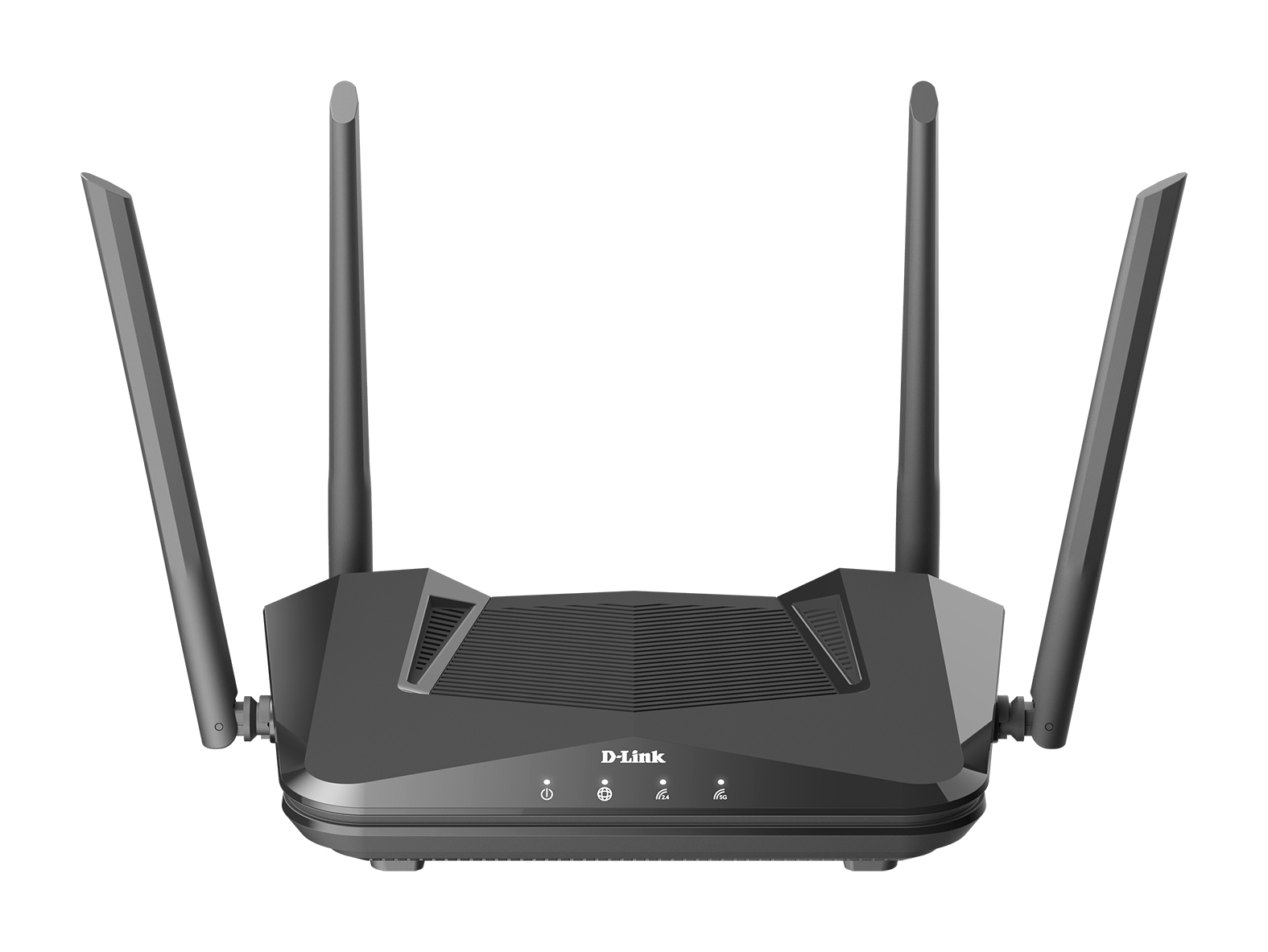

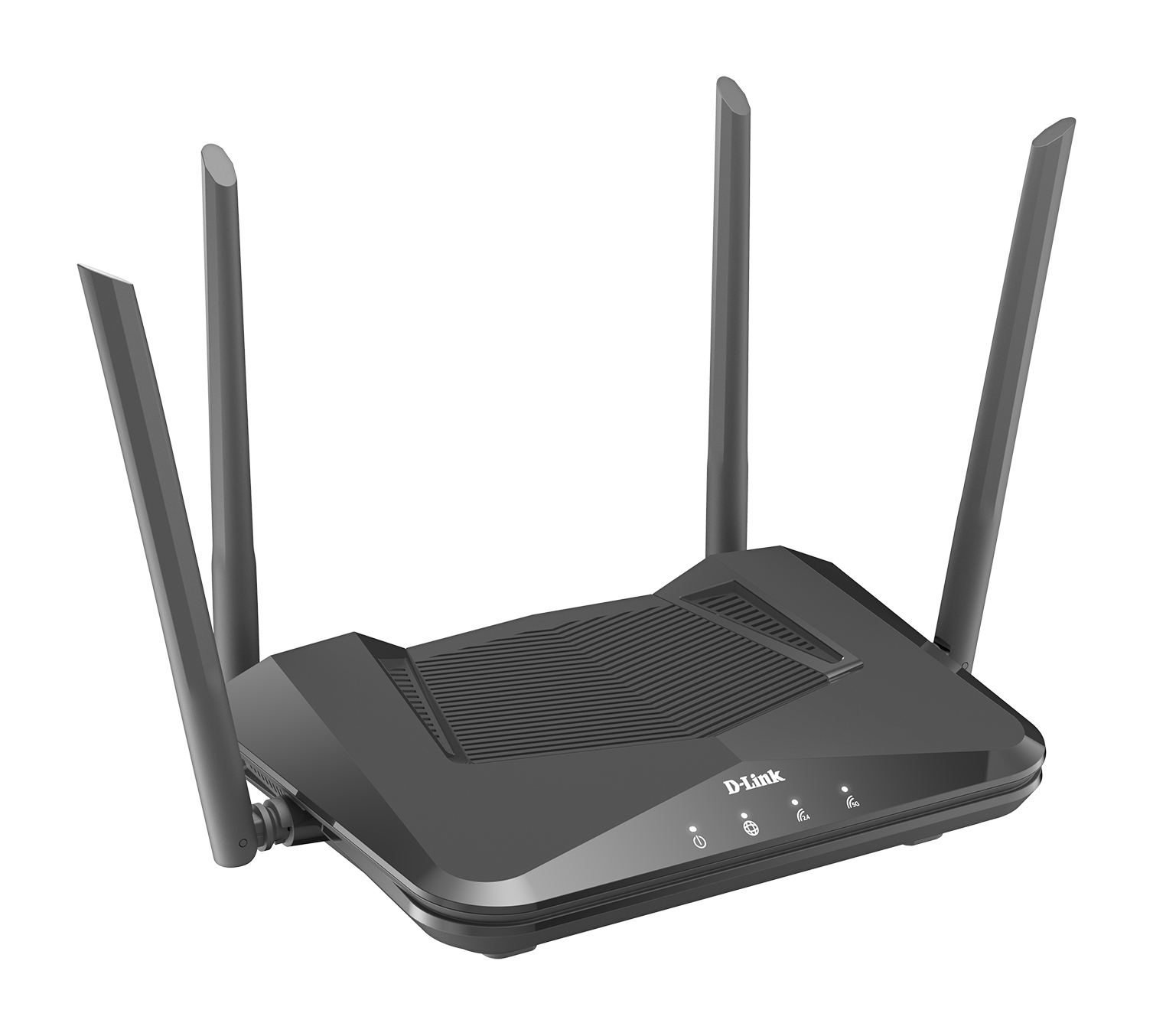

D-Link DIR-X1560 wireless router Gigabit Ethernet Dual-band (2.4 GHz

DIR-X1560 wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) Black

Model DIR-X1560EAN 790069451560

55 specifications

Memory256 MB
SpeedWi-Fi 6 (802.11ax)
TypeTabletop router
Weight410 g
ColourBlack
Ethernet WANYes

See all specifications

Overview

Memory: 256 MB
Speed: Wi-Fi 6 (802.11ax)
Type: Tabletop router
Weight: 410 g
Colour: Black
Ethernet WAN: Yes

Brand: D-Link
Category: Wireless Router
Model: DIR-X1560
Part number: DIR-X1560
EAN / UPC: 790069451560, 790069452482, 790069453229
Also known as: D-Link DIR-X1560 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

55 specifications in 16 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1200 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	1200 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Multicast support	Yes
VPN support	QuickVPN

Mobile network

Specification	Value
3G	No
4G	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB port	No
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	WPA2, WPA3, WPS
Firewall	Yes
Guest access	Yes
Network address translation (NAT)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
LED indicators	LAN, Power, WLAN
On/off switch	Yes

Certificates

Specification	Value
Certification	FCC, CE, IC

Antenna

Specification	Value
Antenna design	External
Antennas quantity	4

Features

Specification	Value
Internal memory	256 MB
Flash memory	128 MB

Power

Specification	Value
Power source type	DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	12 V
Output current	1.5 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 65 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Weight & dimensions

Specification	Value
Depth	166.5 mm
Height	194.2 mm
Weight	410 g
Width	251.6 mm

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
