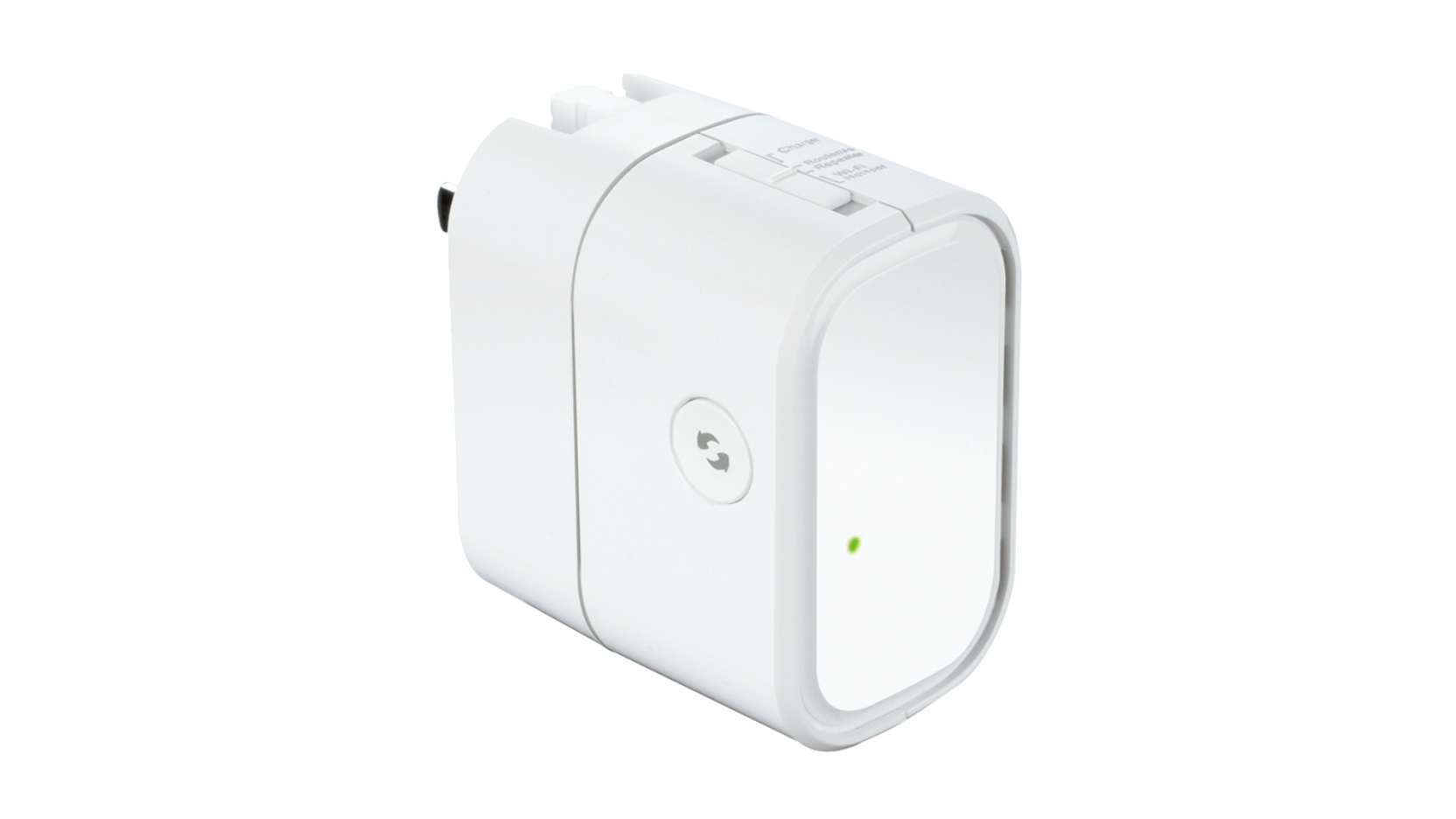

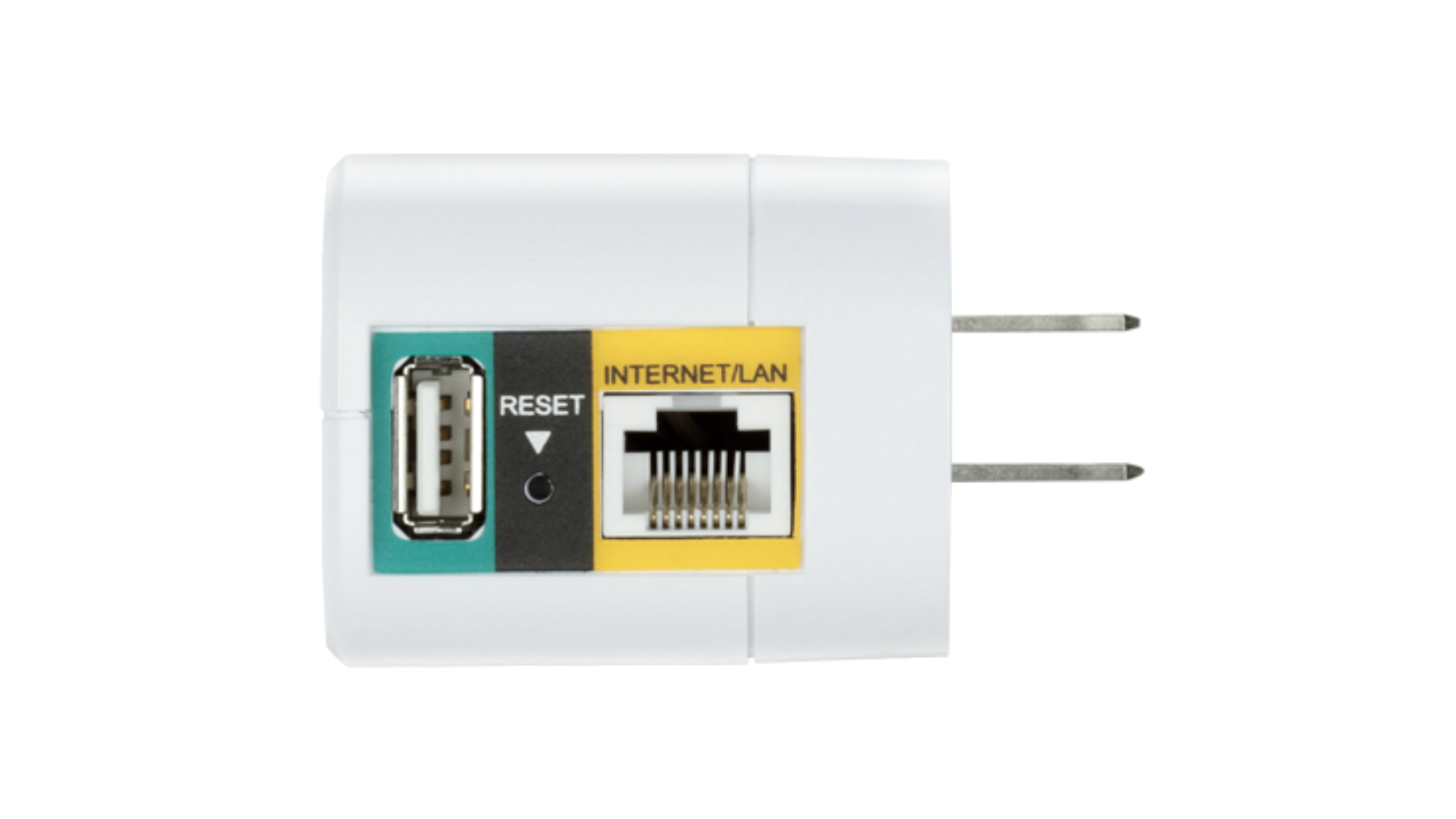

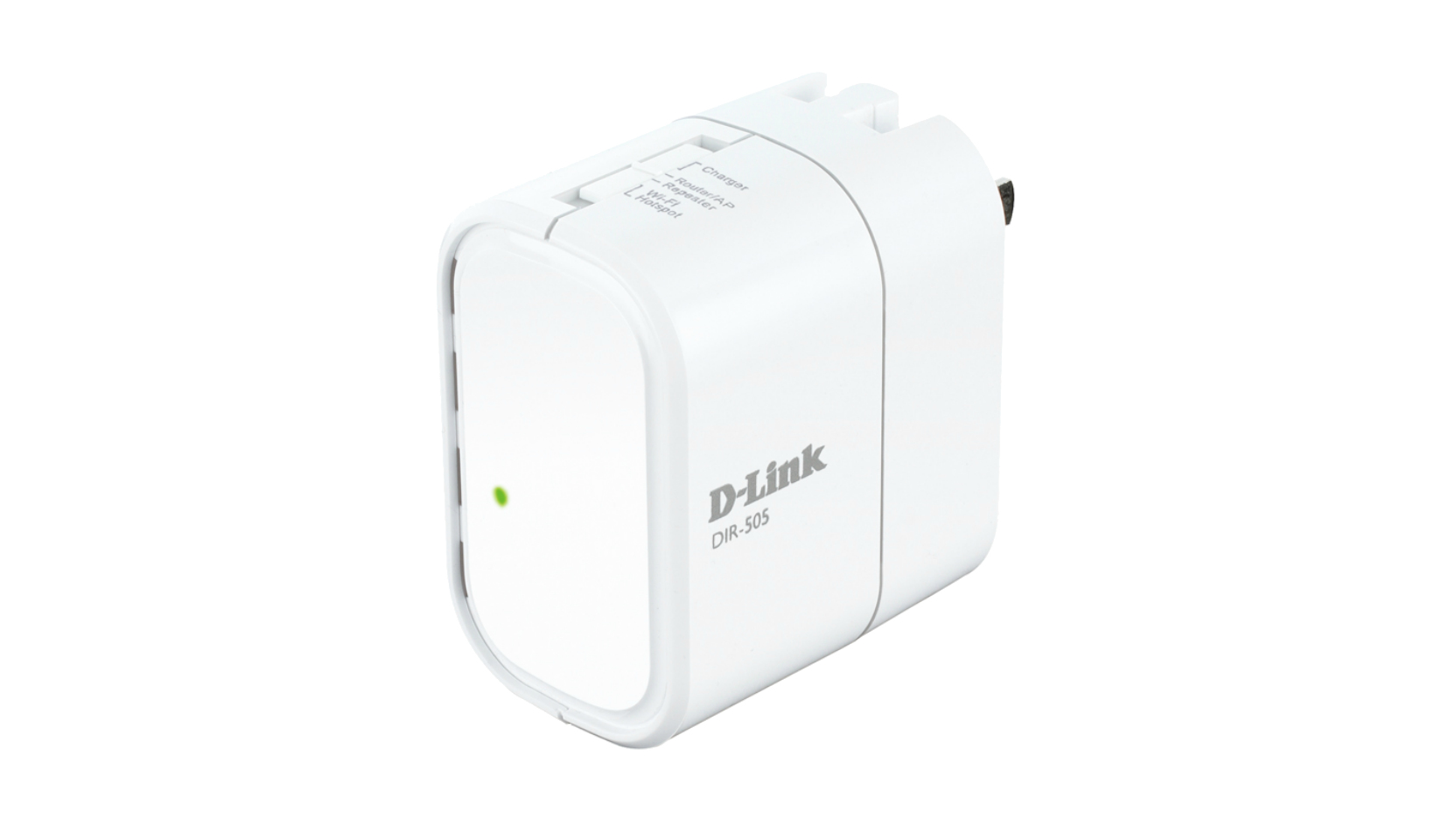

D-Link DIR-505 wireless router
Model DIR-505Part no. DIR-505/FR
18 specifications
- Weight106 g
- Ethernet LANYes
- Ethernet LAN (RJ-45) ports1
- Security algorithmsWEP, WPA, WPA2
- AC input voltage100-240 V
- Operating relative humidity (H-H)0 - 90%
Overview
- Weight
- 106 g
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Security algorithms
- WEP, WPA, WPA2
- AC input voltage
- 100-240 V
- Operating relative humidity (H-H)
- 0 - 90%
- Brand
- D-Link
- Category
- Wireless Router
- Model
- DIR-505
- Part number
- DIR-505/FR
- Also known as
- D-Link DIR-505 wireless router
Specifications
18 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA2 |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, IC, C-Tick UL, DLNA, Wi-Fi |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 42 mm |
| Height | 51 mm |
| Weight | 106 g |
| Width | 68 mm |
Other features
| Specification | Value |
|---|---|
| USB version | 2.0 |
