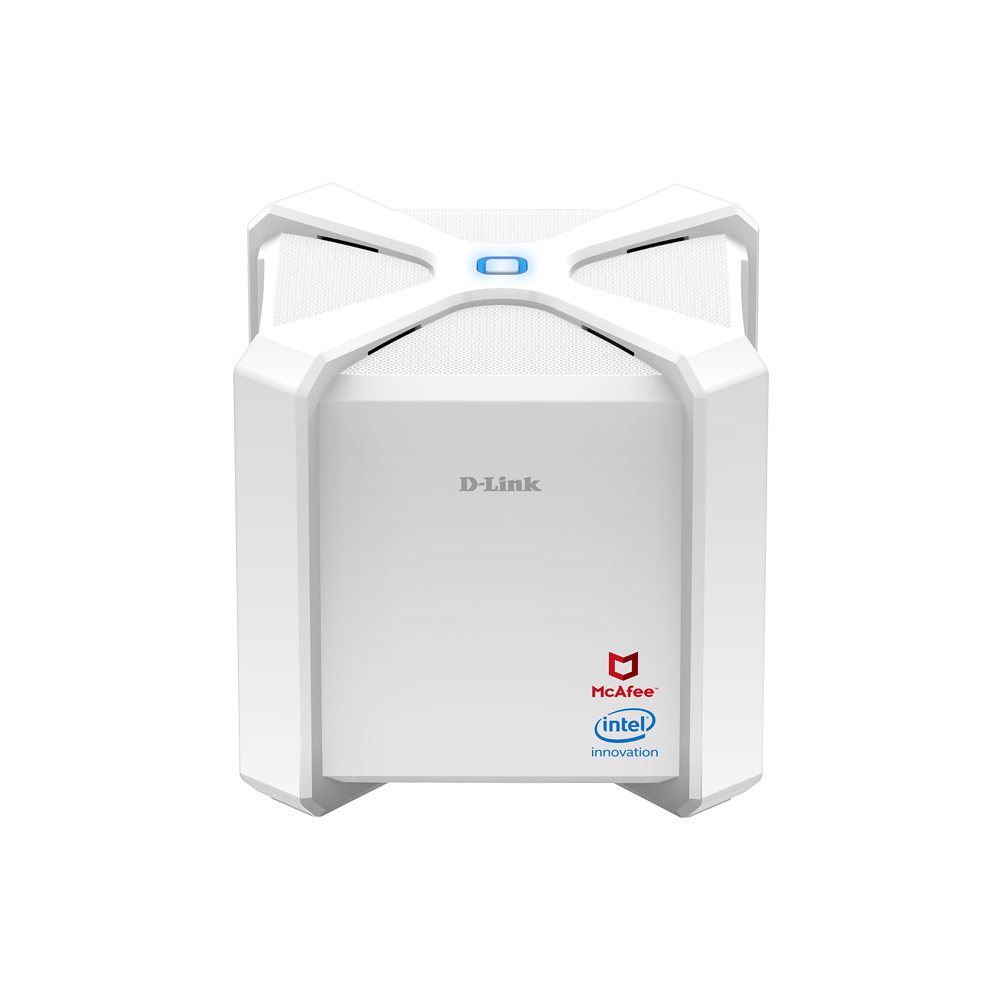

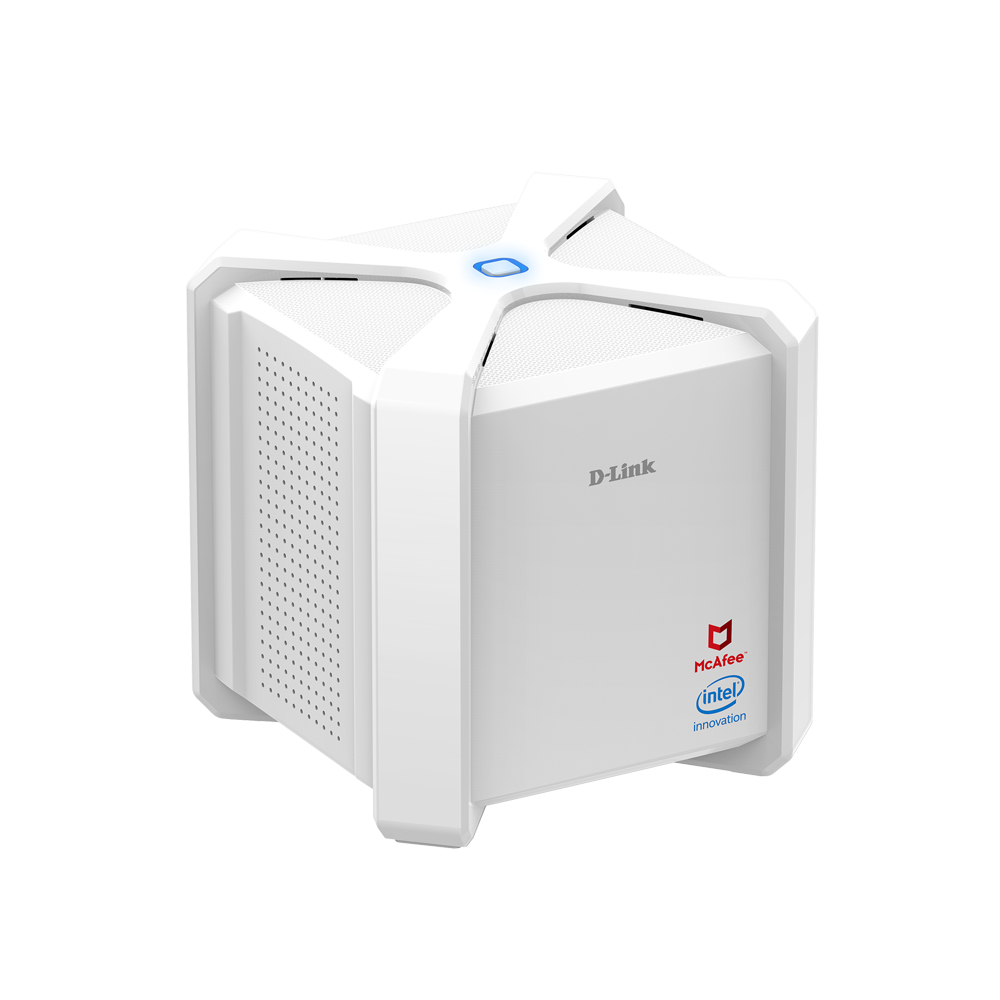

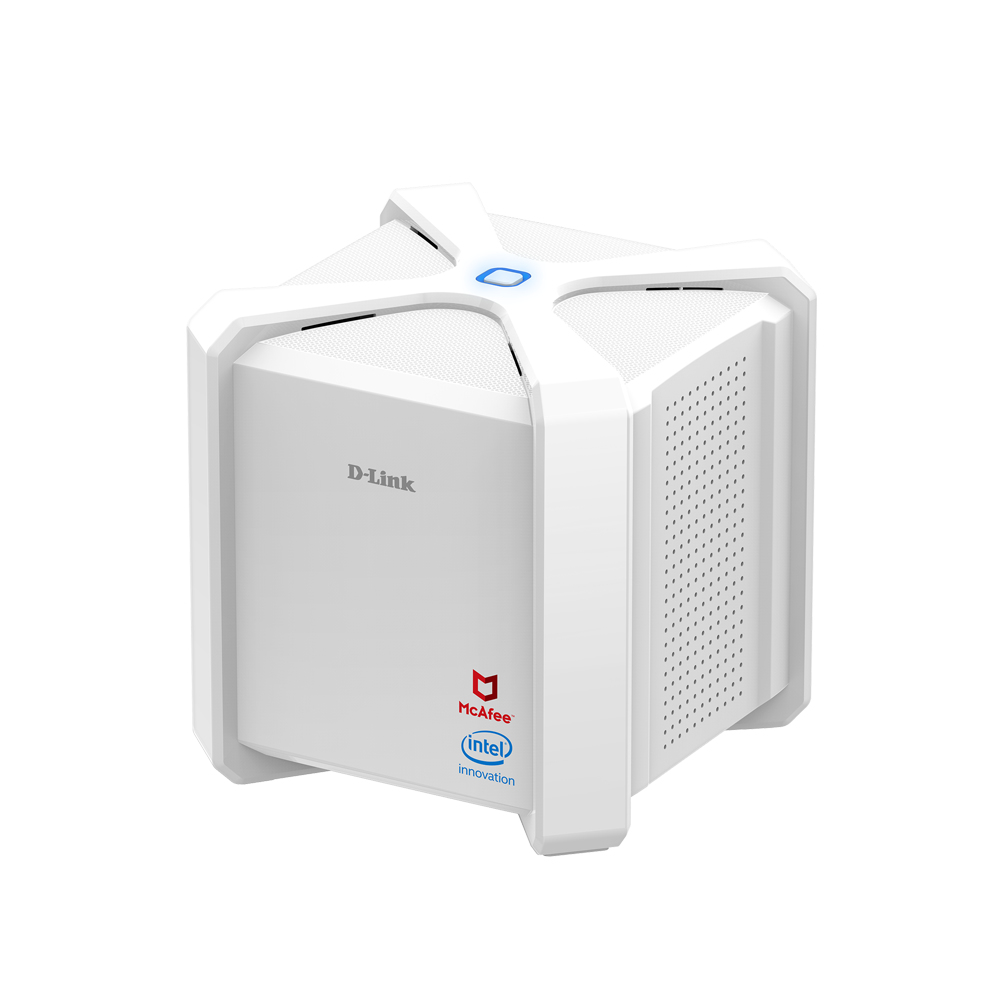

DIR-2680 wireless router Gigabit Ethernet Dual-band (2.4 GHz
5 GHz) White
Model DIR-2680EAN 790069441448
49 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- Weight855 g
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Weight
- 855 g
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- D-Link
- Category
- Wireless Router
- Model
- DIR-2680
- Part numbers
- DIR-2680, DIR-2680-US-W
- EAN / UPC
- 790069441448, 790069440311
- Also known as
- D-Link DIR-2680 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White
Specifications
49 specifications in 13 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 2533 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 800 Mbit/s |
| WLAN data transfer rate (second band) | 1733 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Port forwarding | Yes |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |

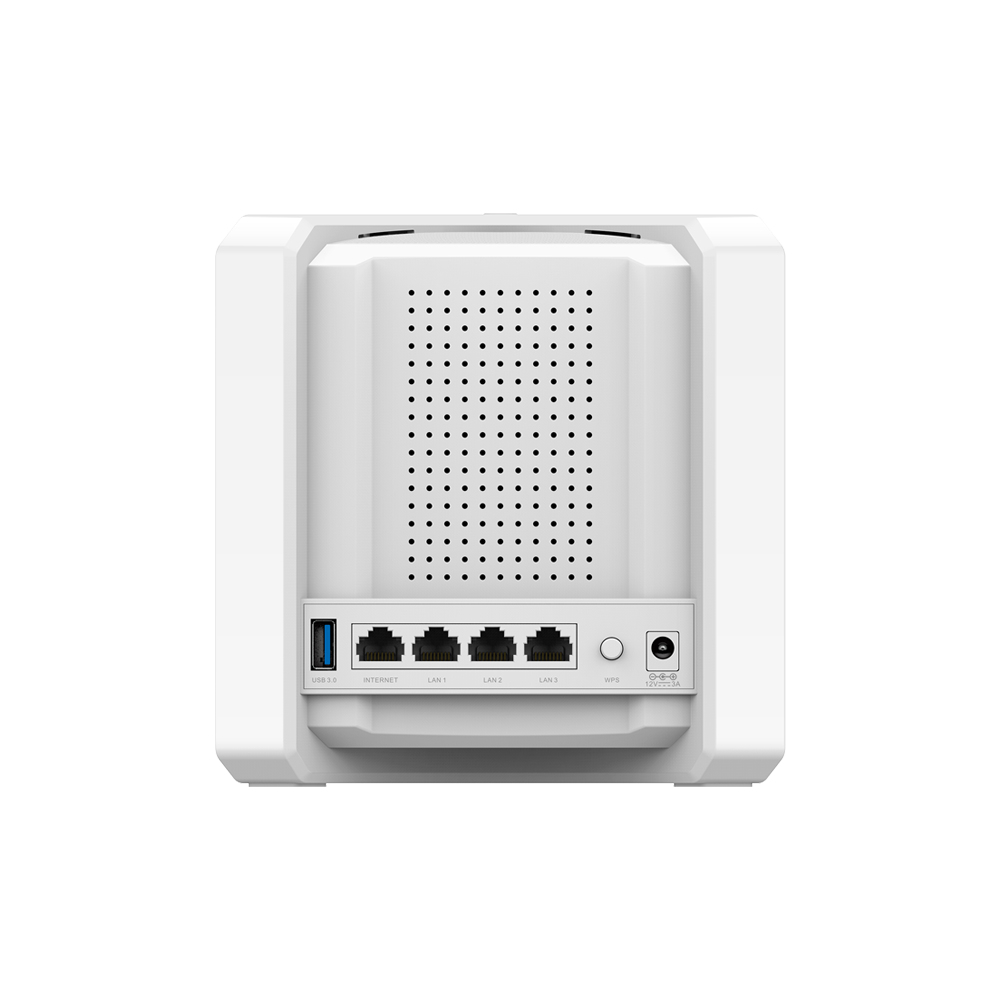

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPS |
| Parental control | Yes |
| DMZ support | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
Features
| Specification | Value |
|---|---|
| Works with Amazon Alexa | Yes |
| Works with the Google Assistant | Yes |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -20 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 160 mm |
| Height | 160 mm |
| Weight | 855 g |
| Width | 160 mm |
