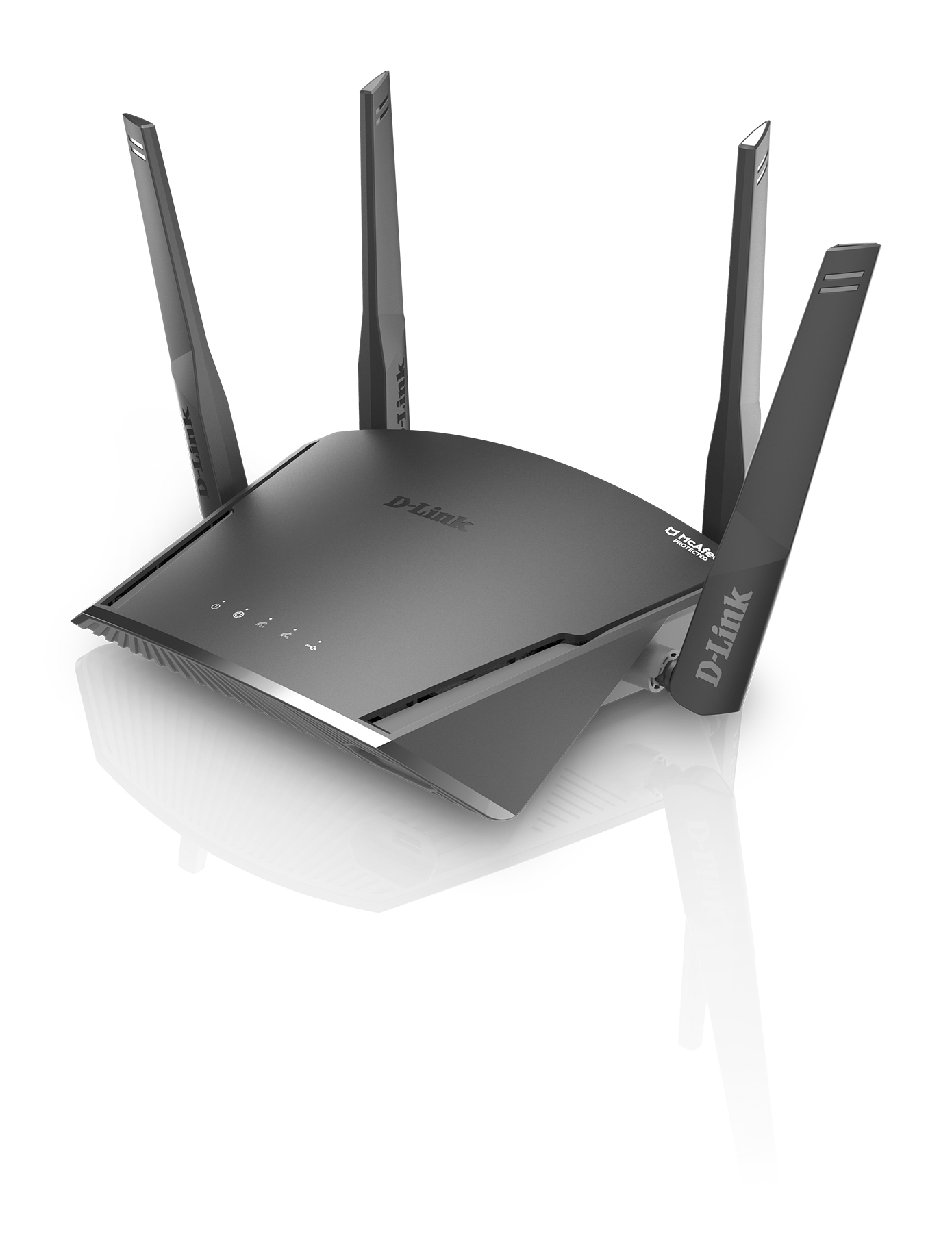

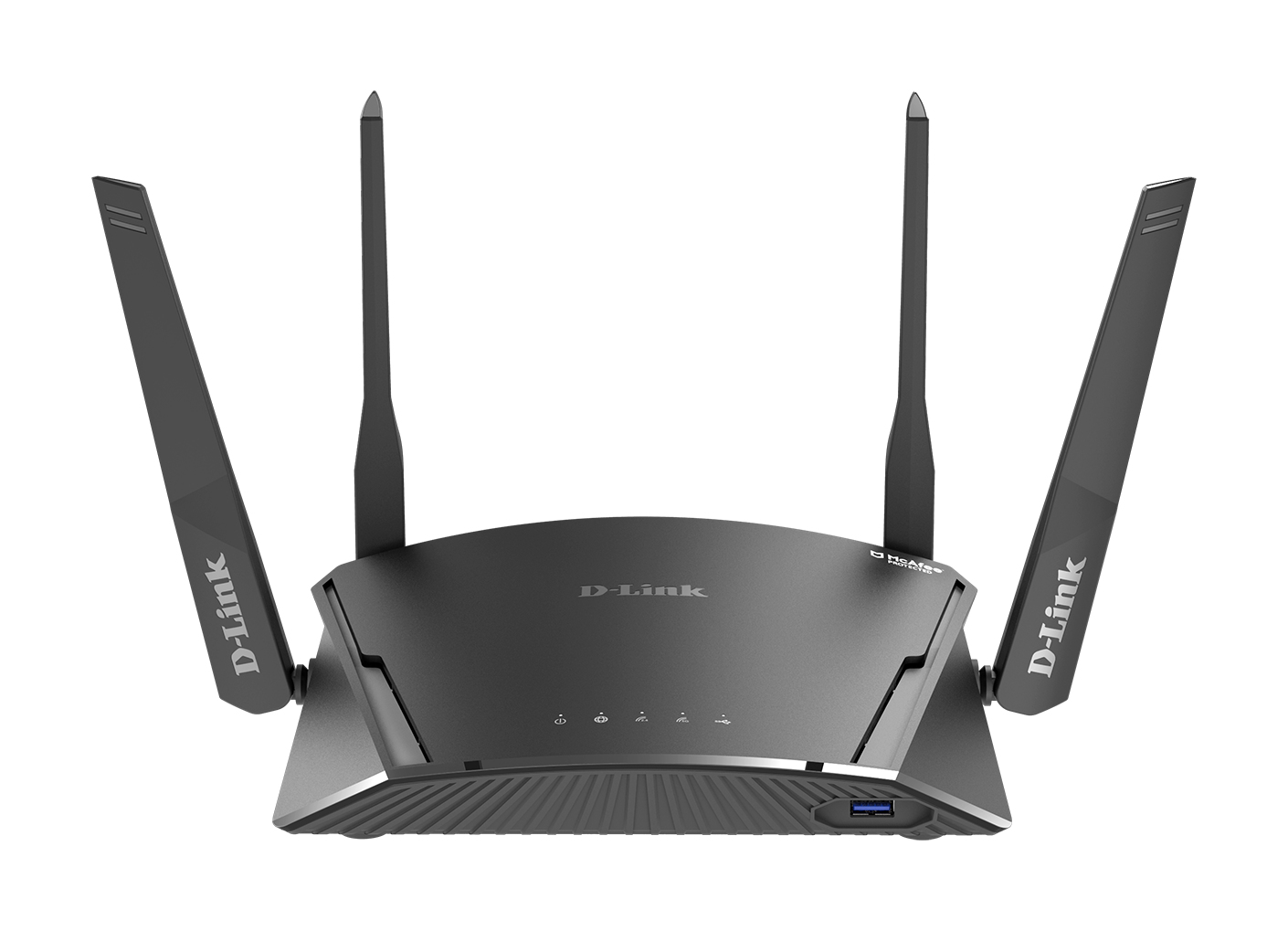

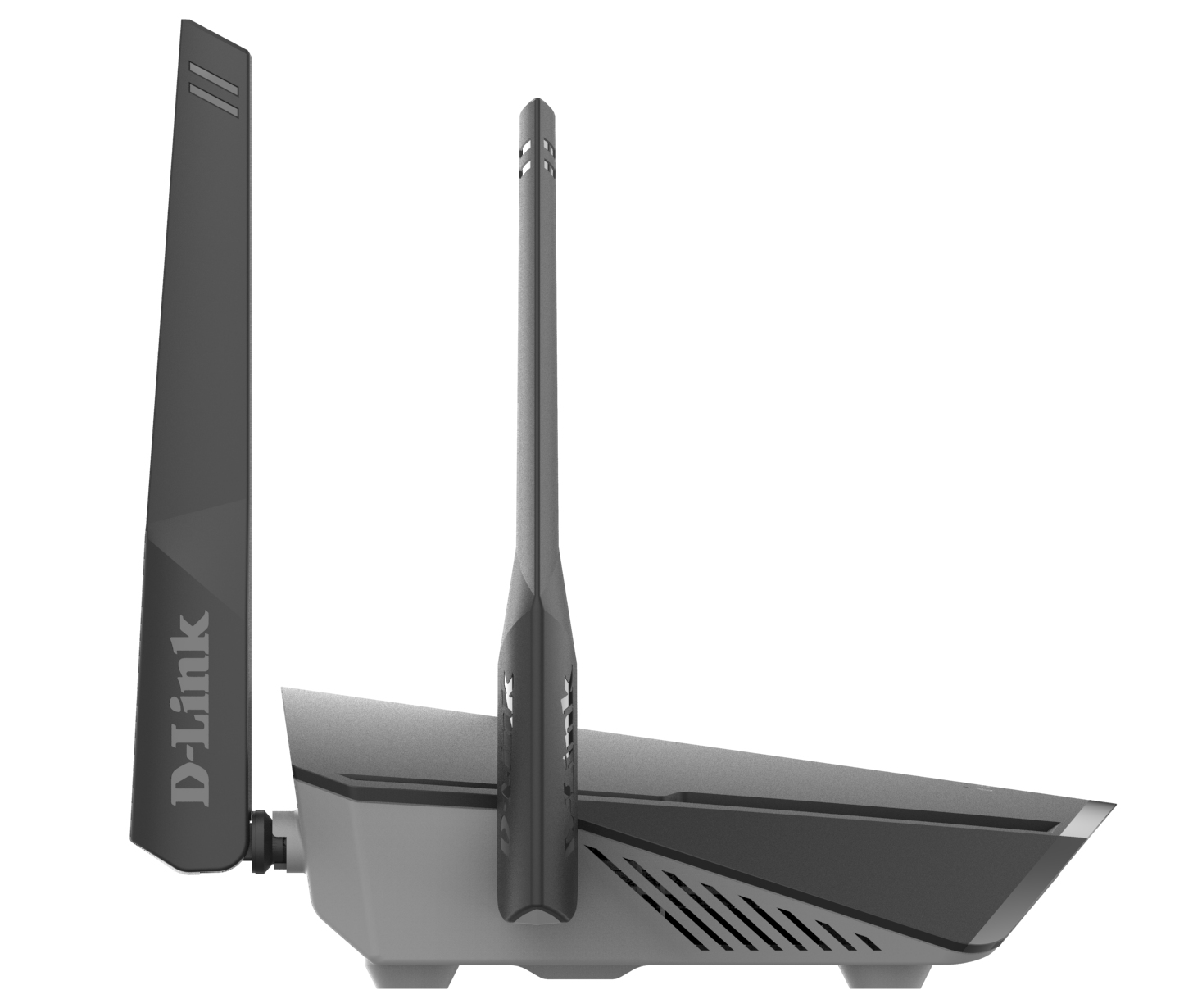

DIR-1960 wireless router Gigabit Ethernet Dual-band (2.4 GHz
5 GHz) Black
Model DIR-1960EAN 790069443695
66 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- Weight593 g
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Weight
- 593 g
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- D-Link
- Category
- Wireless Router
- Model
- DIR-1960
- Part number
- DIR-1960
- EAN / UPC
- 790069443695, 790069446405
- Also known as
- D-Link DIR-1960 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Specifications
66 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1900 Mbit/s |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 600 Mbit/s |
| WLAN data transfer rate (second band) | 1300 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3u |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |

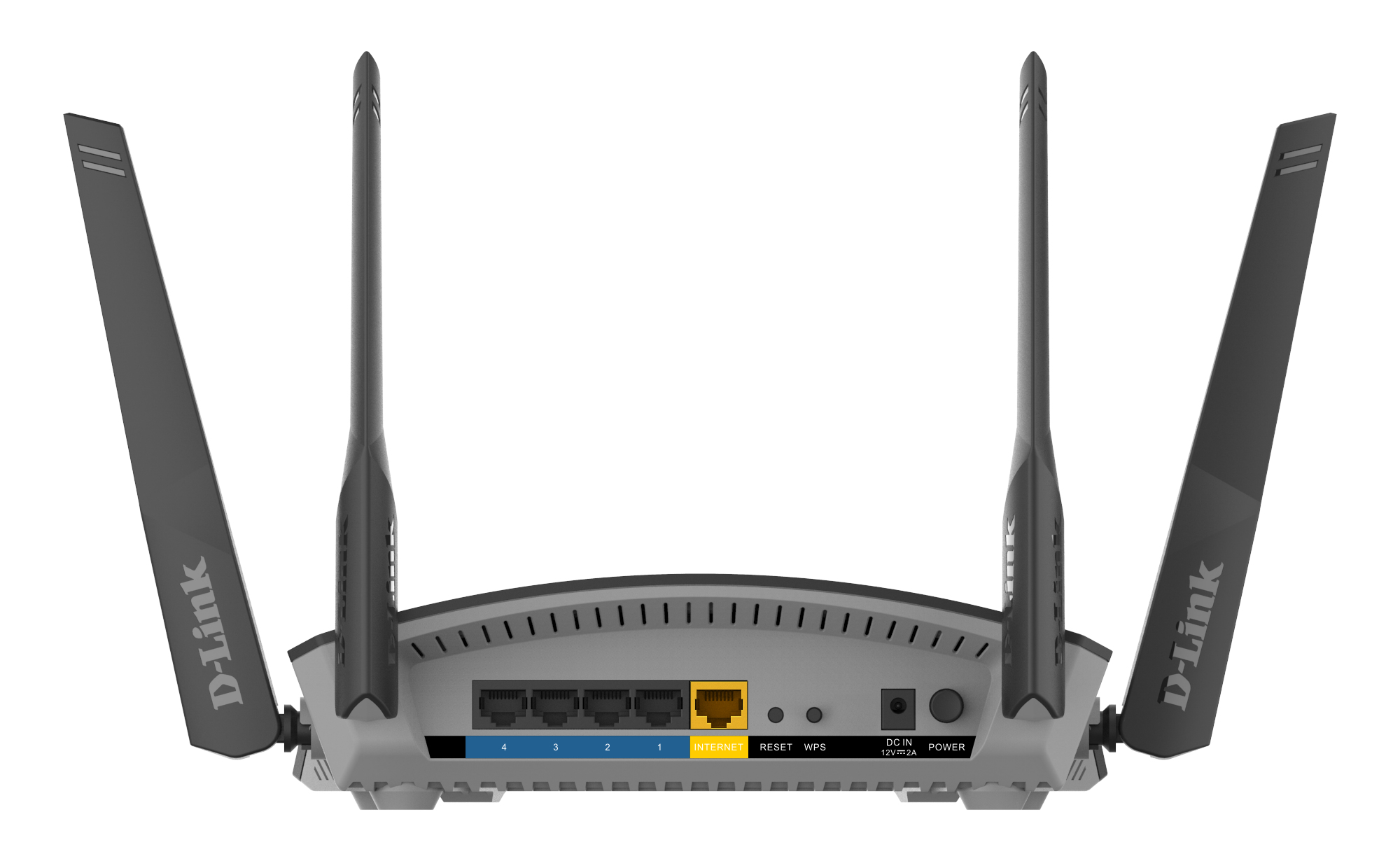

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Memory card slot(s) | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPS |
| Firewall | Yes |
| DMZ support | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, IC, CE |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 4 |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Output current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 176.6 mm |
| Height | 65 mm |
| Weight | 593 g |
| Width | 222.9 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 280 mm |
| Package depth | 330 mm |
| Package height | 125 mm |
| Package weight | 1.24 kg |
| Number of products included | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Master (outer) cases per pallet (sea) | 40 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross weight (air) | 162.6 kg |
| Pallet gross weight (sea) | 257.6 kg |
| Pallet gross width | 110 cm |
| Pallet height (air) | 121.8 cm |
| Pallet height (sea) | 194 cm |
| Products per pallet (air) | 96 pc(s) |
| Products per pallet (sea) | 160 pc(s) |
| Products per shipping (inner) case | 4 pc(s) |
| Shipping (inner) case gross weight | 5.94 kg |
| Shipping (inner) case height | 36.1 cm |
| Shipping (inner) case length | 53.1 cm |
| Shipping (inner) case net weight | 4.94 kg |
| Shipping (inner) case width | 29.7 cm |
