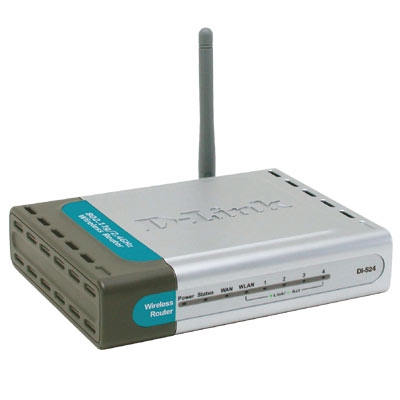

DI-524/B wireless router
Model DI-524/BEAN 790069282539
28 specifications
- Speed0.054 Gbit/s
- Weight220 g
- ModulationOFDM
- Full duplexYes
- Security algorithmsWPA
- LED indicatorsPower, Status, WAN, WLAN
Overview
- Speed
- 0.054 Gbit/s
- Weight
- 220 g
- Modulation
- OFDM
- Full duplex
- Yes
- Security algorithms
- WPA
- LED indicators
- Power, Status, WAN, WLAN
- Brand
- D-Link
- Category
- Wireless Router
- Model
- DI-524/B
- Part number
- DI-524/B
- EAN / UPC
- 790069282539, 5051749525175
- Also known as
- D-Link DI-524/B wireless router
Specifications
28 specifications in 9 groups
Wireless LAN features
| Specification | Value |
|---|---|
| Modulation | OFDM |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u |
| Full duplex | Yes |
| Supports ISDN connection | No |
| VPN support | PPTP L2TP IPSec |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA |
| Firewall security | VPN Pass-through, Domain Blocking, Scheduling |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| Network address translation (NAT) | Yes |
Design
| Specification | Value |
|---|---|
| LED indicators | Power, Status, WAN, WLAN |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna connector type | RP-SMA |
Features
| Specification | Value |
|---|---|
| Safety | FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 220 g |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 109 x 142 x 31 mm |
| Frequency range | 2.4 - 2.462 GHz |
| Indoor range | 100 m |
| Management platform | Web-based, DHCP Server |
| Maximum data transfer rate | 0.054 Gbit/s |
| Networking features | Wireless LAN, Ethernet LAN |
| Outdoor range | 400 m |
| Supported data transfer rates | 10/100 Mbps |
| xDSL connection | No |
| I/O ports | 4x 10/100 Ethernet 1x 10/100 WAN 1x Power |
