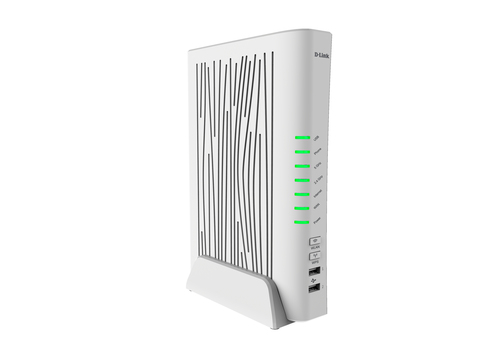

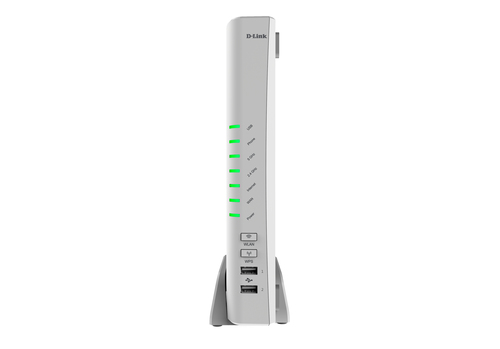

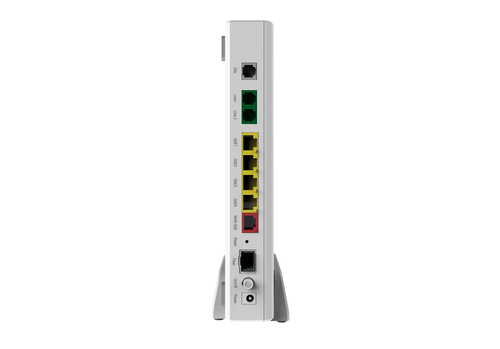

D-Link AC2200 wireless router Gigabit Ethernet Dual-band (2.4 GHz

AC2200 wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) White

Model AC2200Part no. DVA-5593EAN 790069445408

54 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
Weight630 g
ColourWhite
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Weight: 630 g
Colour: White
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Brand: D-Link
Category: Wireless Router
Model: AC2200
Part number: DVA-5593
EAN / UPC: 790069445408, 790069445422
Also known as: D-Link AC2200 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White

Specifications

54 specifications in 16 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	Yes

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2200 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	450 Mbit/s
WLAN data transfer rate (second band)	1700 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Mobile network

Specification	Value
3G	No
4G	No

DSL features

Specification	Value
ADSL	Yes
ADSL2+	Yes
VDSL	Yes
DSL specification	T1.413i2, G.992.1, G.dmt, G.992.2, G.lite, G.992.3 (G.bis/ADSL2), G.992.5 (ADSL2+), ITU G.994.1(G.hs), ITU G.993.2 Annex Q, 8b/12a/12b/17a/35b, G.vector, ATM/PTM, G.INP, CBR,UBR,VBR-rt, VBR-nrt, ITU-T I.610 F4/F5 OAM

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
RJ-11 ports quantity	3
Memory card slot(s)	No

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	802.1x RADIUS, WPA, WPA2
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	White
On/off switch	Yes

Certificates

Specification	Value
Certification	RoHS, CE

Antenna

Specification	Value
Antenna design	Internal
Antennas quantity	7

Power

Specification	Value
Power source type	AC
AC input voltage	100 - 240 V
Output voltage	12 V
Output current	3 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Weight & dimensions

Specification	Value
Depth	165 mm
Height	235 mm
Weight	630 g
Width	70.6 mm
