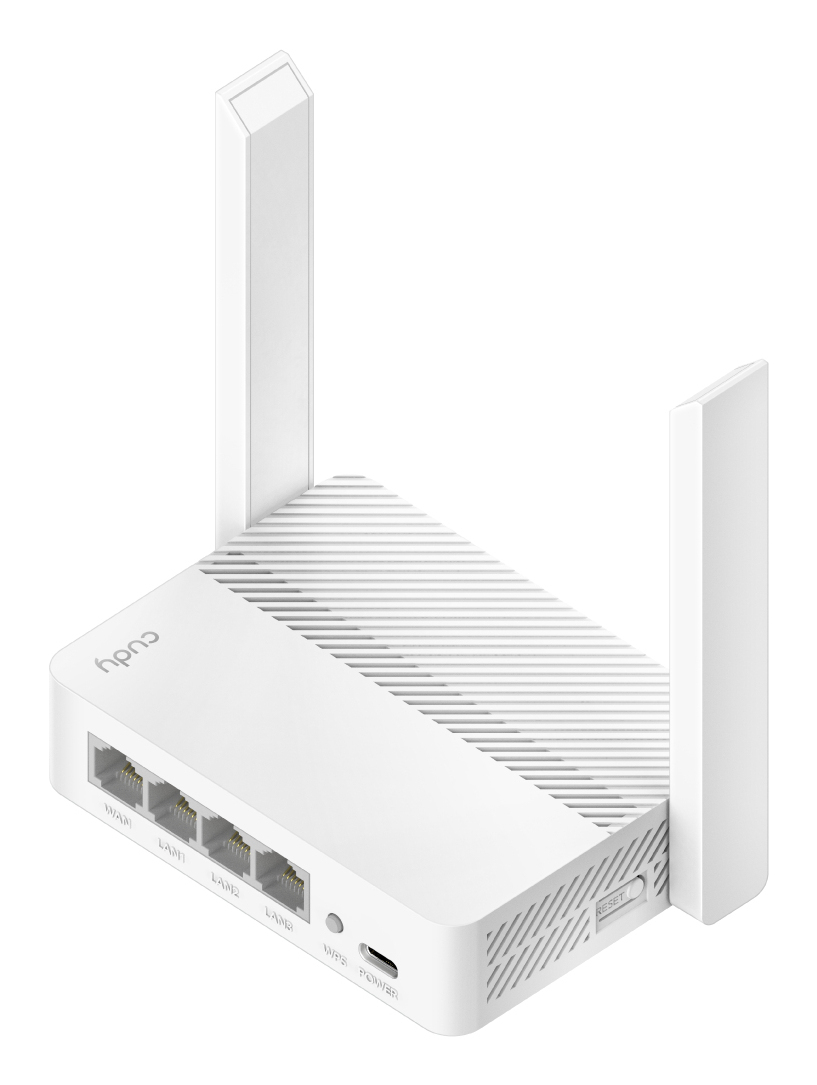

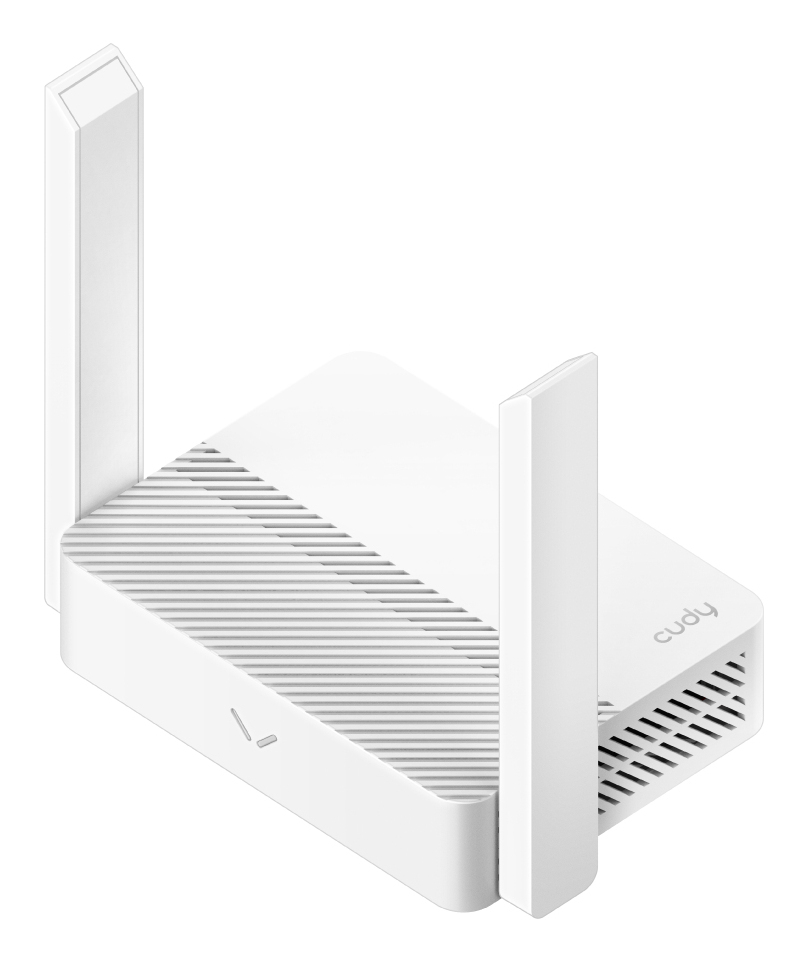

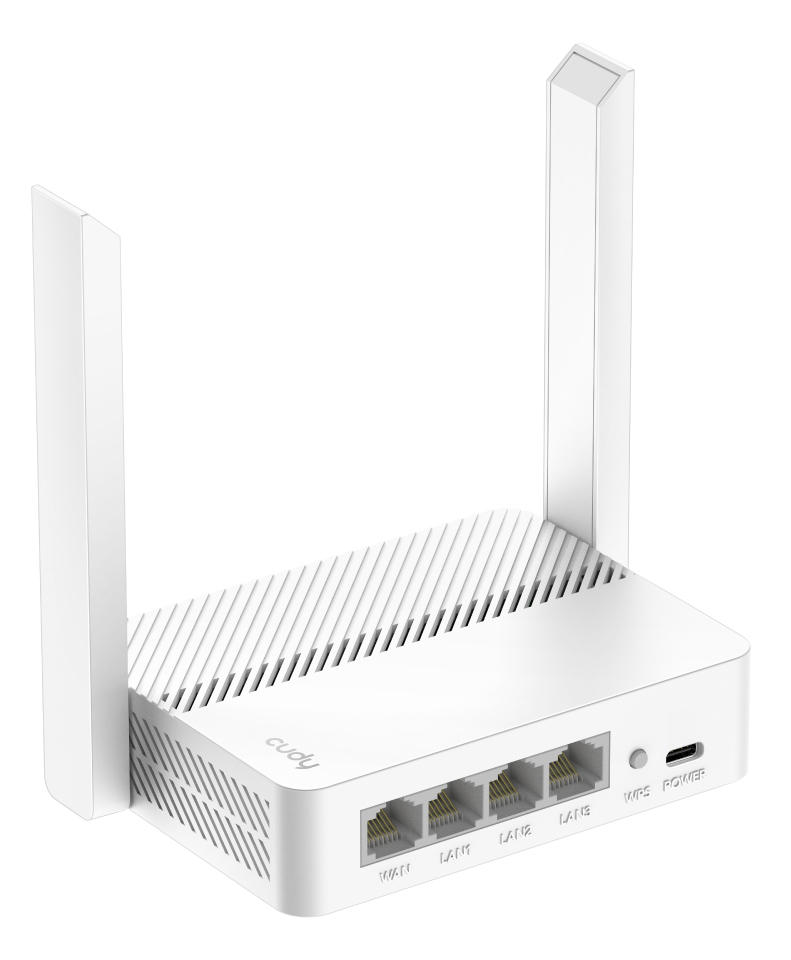

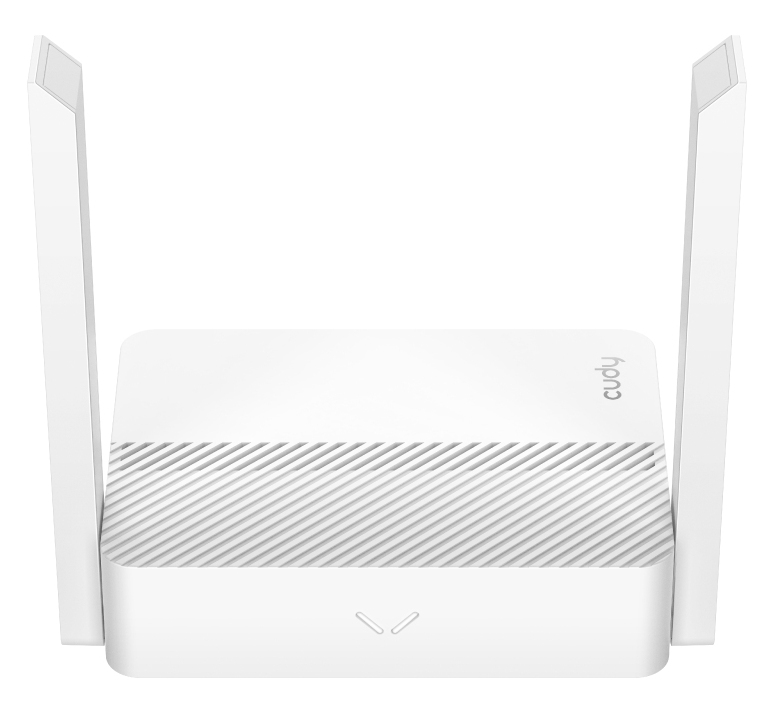

WR300 wireless router Fast Ethernet Single-band (2.4 GHz) White
Model WR300EAN 6971690790028
68 specifications
- SpeedWi-Fi 4 (802.11n)
- TypeTabletop router
- Weight120 g
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandSingle-band (2.4 GHz)
Overview
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Tabletop router
- Weight
- 120 g
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Single-band (2.4 GHz)
- Brand
- Cudy
- Category
- Wireless Router
- Model
- WR300
- Part number
- WR300
- EAN / UPC
- 6971690790028
- Also known as
- Cudy WR300 wireless router Fast Ethernet Single-band (2.4 GHz) White
Specifications
68 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Port forwarding | Yes |
| Port triggering | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| VPN Passthrough | Yes |
| Receiver sensitivity | 5GHz 11a 6Mbps : -96dBm, 11a 54Mbps: -79dBm 11ac HT20: -71dBm, 11ac HT40: -66dBm, 11ac HT80: -63dBm, 11n HT20: -72dBm, 11n HT40: -71dBm；2.4GHz 11g 54M: -77dBm 11n HT20: -74dBm, 11n HT40: -72dBm |

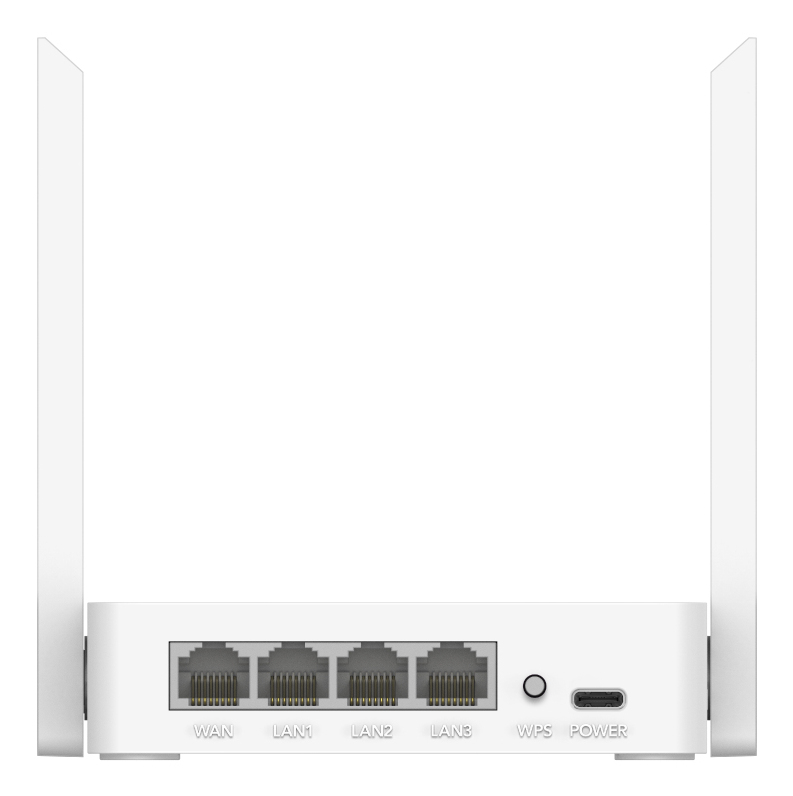

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MIMO | Yes |
| MU-MIMO technology | Yes |
| Remote management | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Firewall | Yes |
| Firewall security | DoS, SPI Firewall；IP Address Filter/MAC Address Filter/Domain Filter；IP and MAC Address Binding |
| Guest access | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| IGMP snooping | Yes |
| DMZ support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| Wall mountable | Yes |
| LED indicators | Activity, Power |
| On/off switch | Yes |

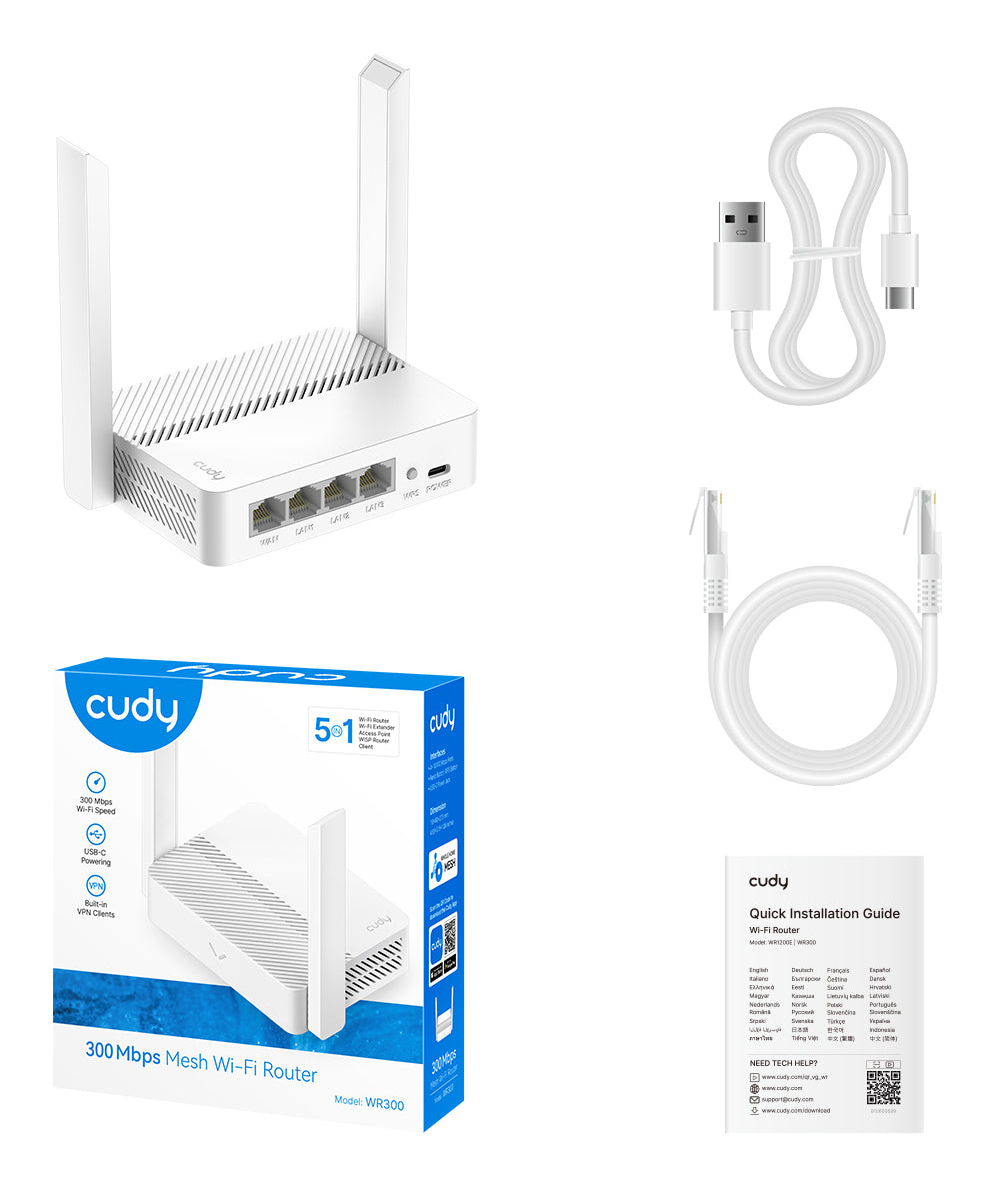

Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 5 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 80 mm |
| Height | 27.5 mm |
| Weight | 120 g |
| Width | 118 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 176 mm |
| Package depth | 140.5 mm |
| Package height | 56 mm |
| Package weight | 336 g |
| Package type | Box |
| Number of products included | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Supported WAN type | Dynamic IP/Static IP/PPPoE |
| Supported protocols | IPv4, IPv6 |
