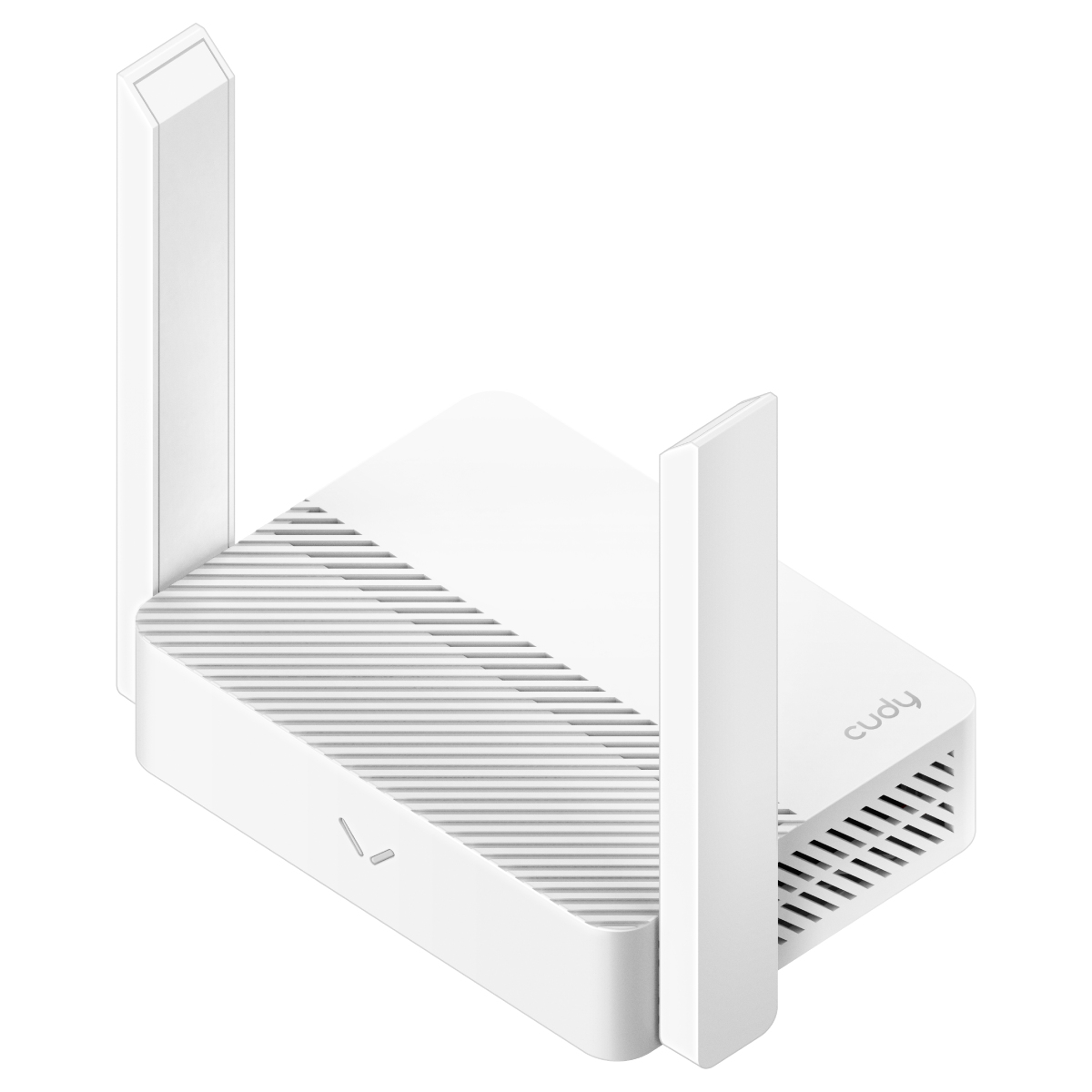

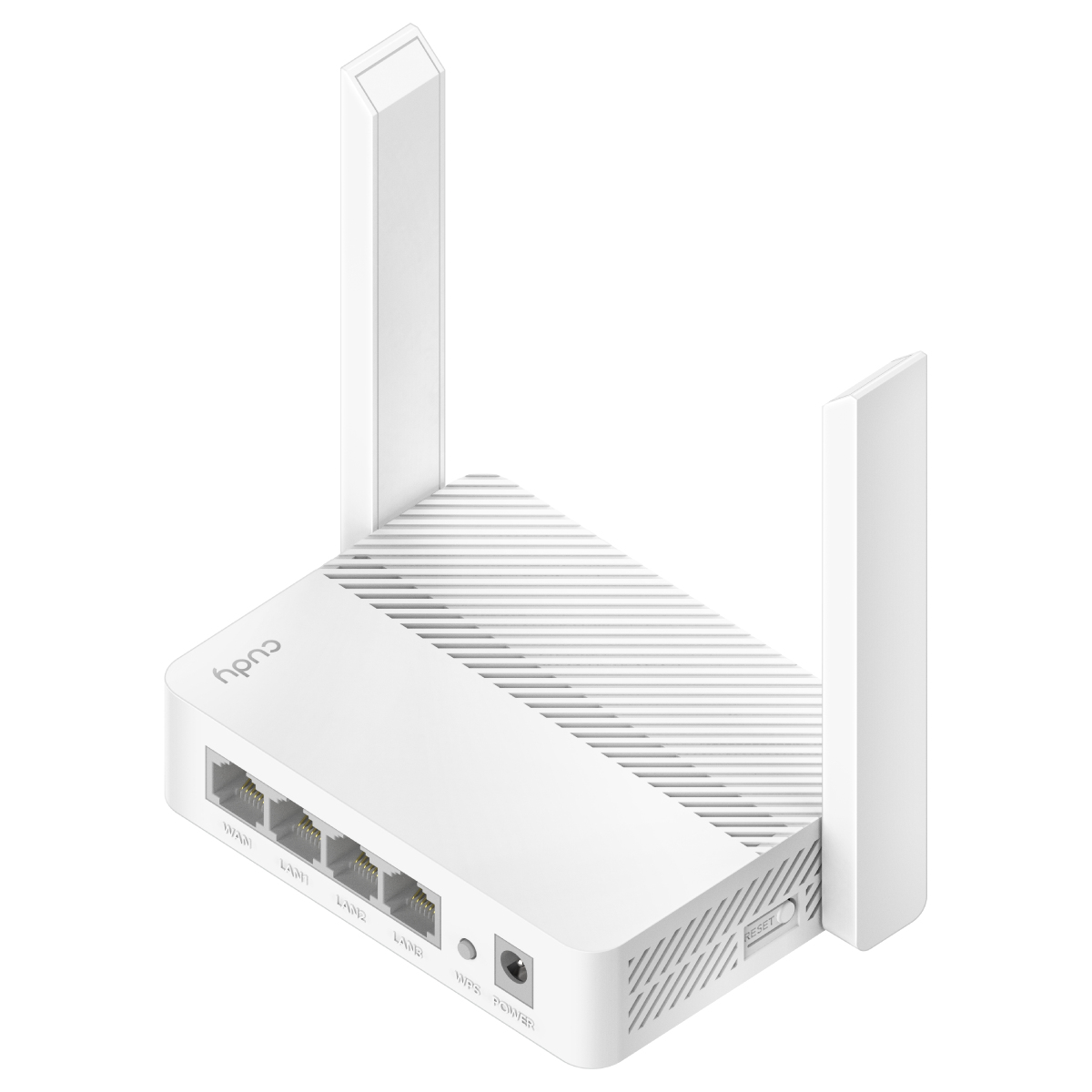

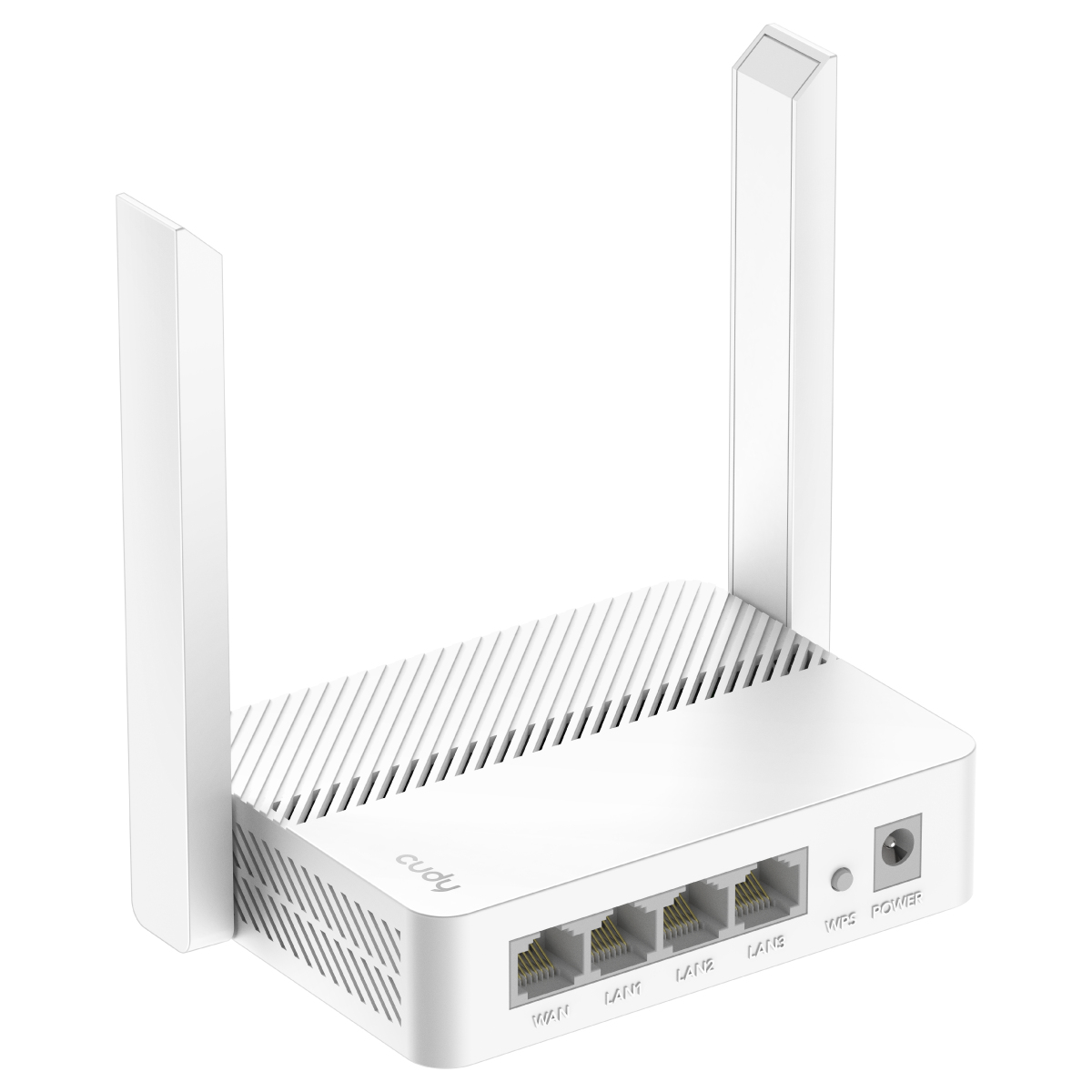

WR1200E wireless router Fast Ethernet Dual-band (2.4 GHz
5 GHz) White
Model WR1200EEAN 6971690793371
68 specifications
- Memory64 MB
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- Weight100 g
- ColourWhite
- Ethernet WANYes
Overview
- Memory
- 64 MB
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Weight
- 100 g
- Colour
- White
- Ethernet WAN
- Yes
- Brand
- Cudy
- Category
- Wireless Router
- Model
- WR1200E
- Part number
- WR1200E
- EAN / UPC
- 6971690793371
- Also known as
- Cudy WR1200E wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) White
Specifications
68 specifications in 16 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Modulation | 256-QAM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Port forwarding | Yes |
| Port triggering | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |

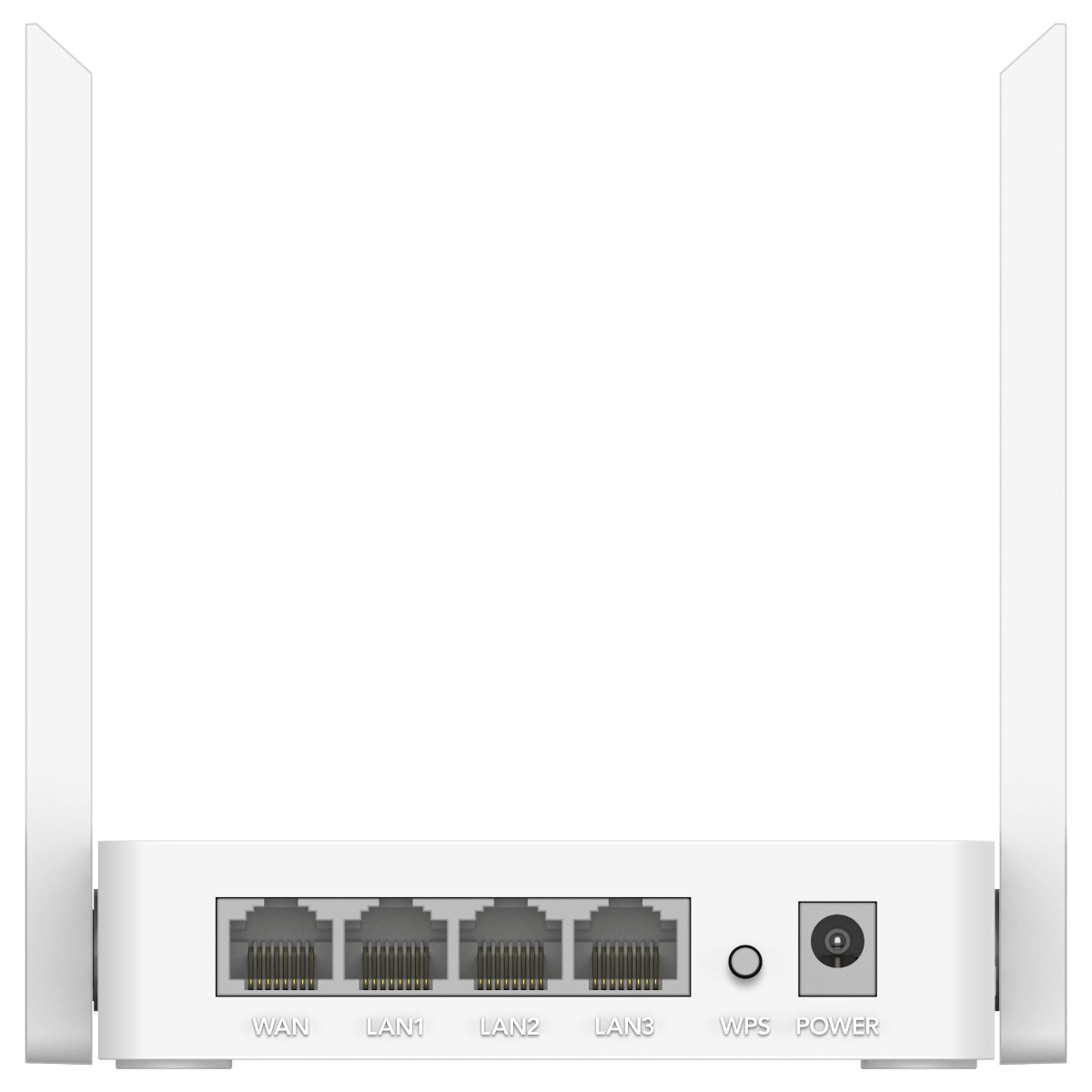

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB port | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
| MIMO | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Firewall | Yes |
| Guest access | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| IGMP snooping | Yes |
| DMZ support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |

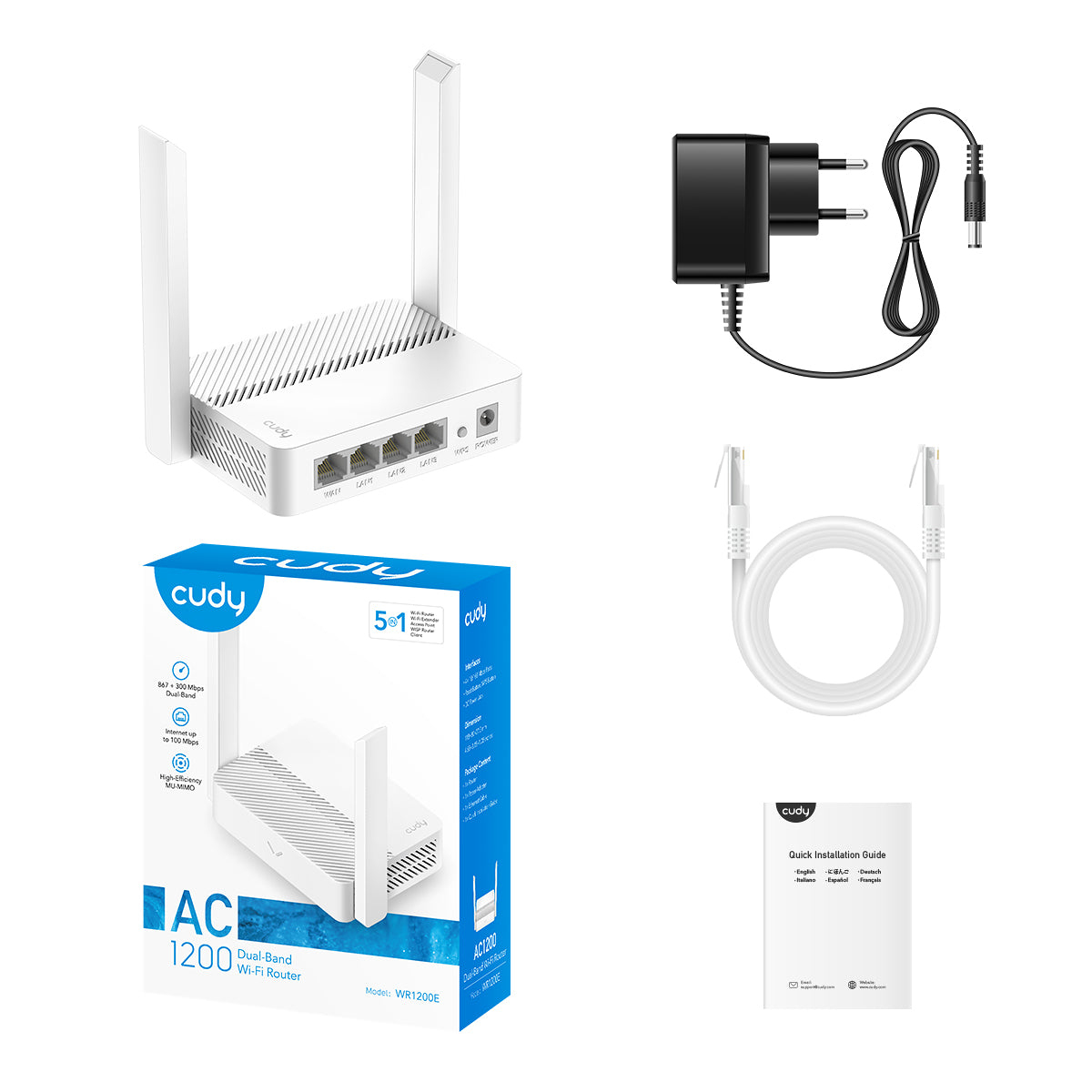

Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna gain level (max) | 4.93 dBi |
| Antennas quantity | 2 |
| Detachable antenna(s) | No |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 580 MHz |
| Processor cores | 1 |
| Internal memory | 64 MB |
| Internal memory type | DDR2 |
| Flash memory | 8 MB |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 80 mm |
| Height | 27.5 mm |
| Weight | 100 g |
| Width | 118 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 176 mm |
| Package depth | 140.5 mm |
| Package height | 56 mm |
| Package weight | 350 g |
