Cudy WR1200 wireless router Fast Ethernet Dual-band (2.4 GHz

WR1200 wireless router Fast Ethernet Dual-band (2.4 GHz

5 GHz) White

Model WR1200EAN 6971690792077

76 specifications

Memory64 MB
SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
Weight259 g
ColourWhite
Ethernet WANYes

See all specifications

Overview

Memory: 64 MB
Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Weight: 259 g
Colour: White
Ethernet WAN: Yes

Brand: Cudy
Category: Wireless Router
Model: WR1200
Part number: WR1200
EAN / UPC: 6971690792077
Also known as: Cudy WR1200 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) White

Specifications

76 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
Wireless radio	Yes
VPN support	PPTP/L2TP/OpenVPN/WireGuard

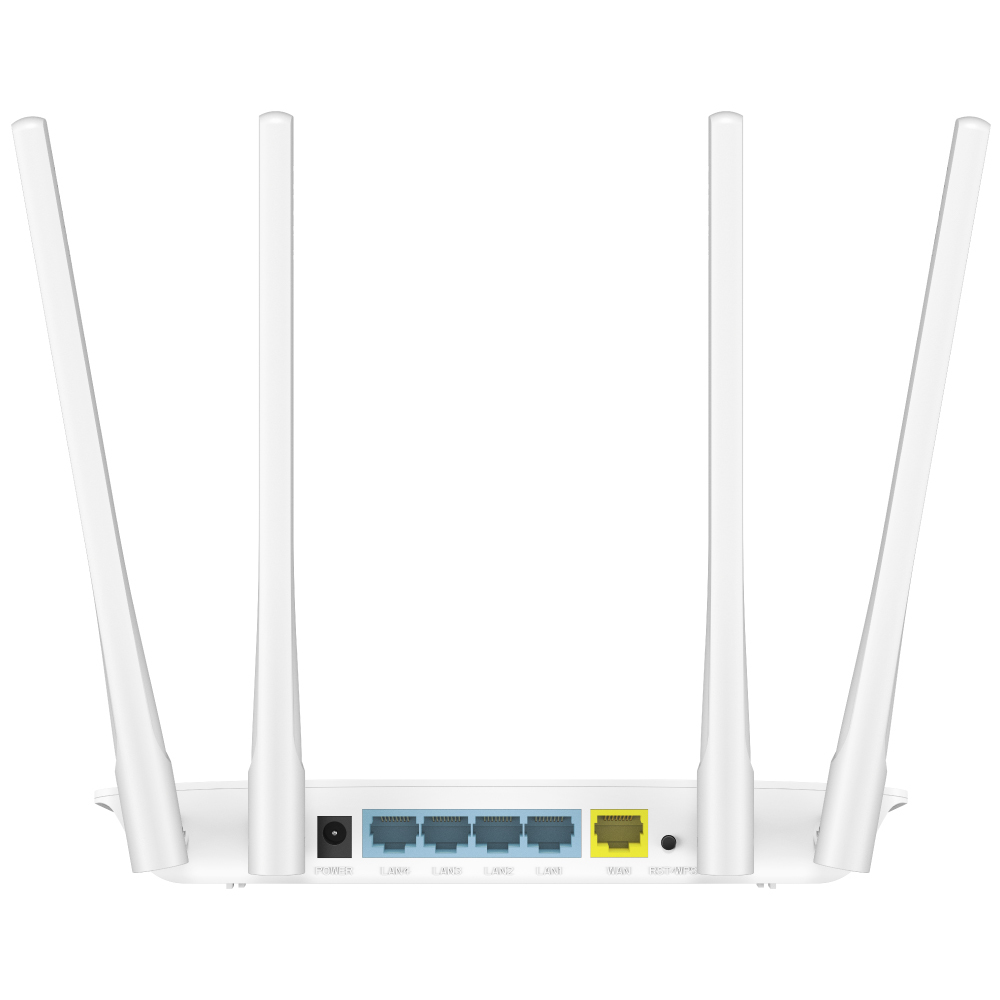

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Reset button	Yes
Intelligent Mesh technology	Yes
WPS push button	Yes
MIMO	Yes
MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	WPA, WPA2, WPA3
Firewall	Yes
Guest access	Yes
Parental control	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
IGMP snooping	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	White

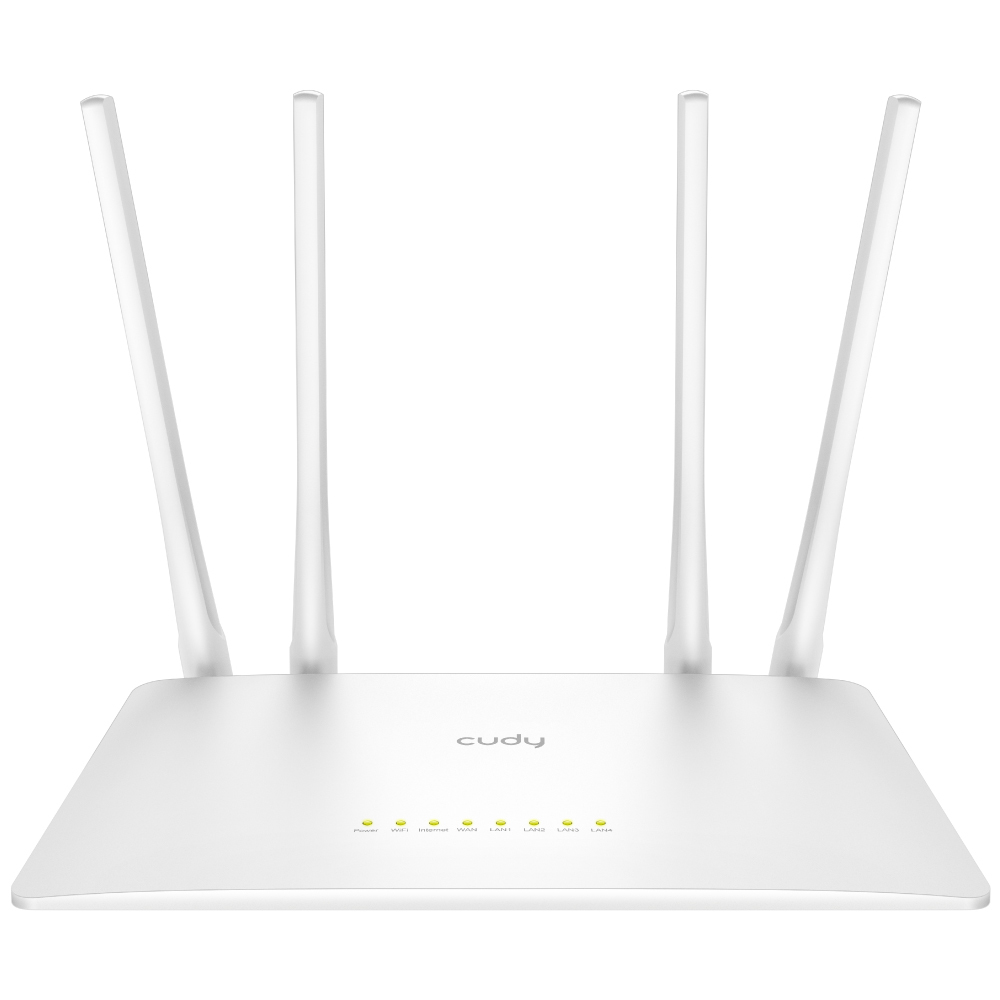

LED indicators	LAN, Power, WAN, WLAN

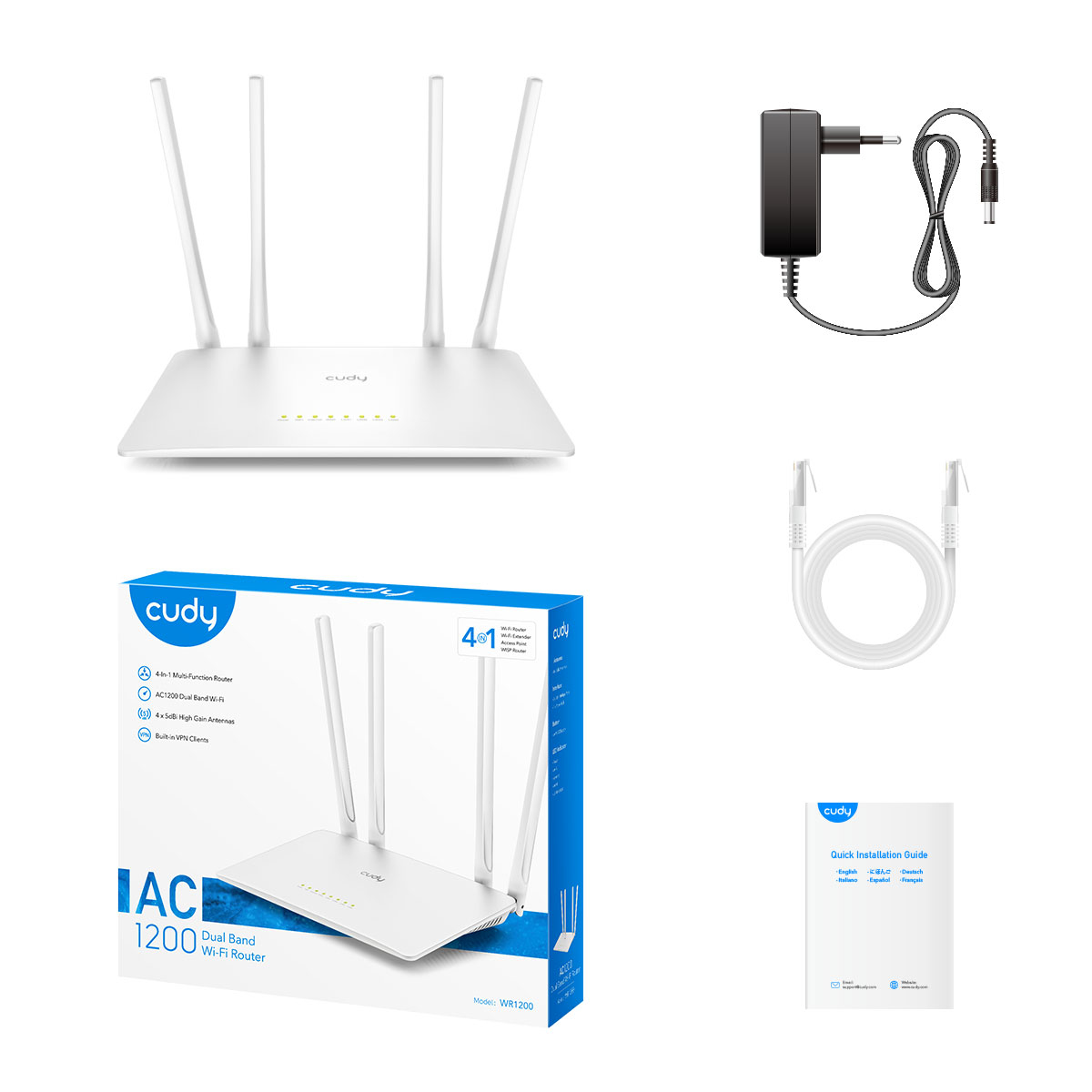

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	5 dBi
Antennas quantity	4

Features

Specification	Value
Internal memory	64 MB
Flash memory	8 MB

Power

Specification	Value
Power source type	DC
Output voltage	12 V
Output current	1 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported	MacOS
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	135 mm
Height	30 mm
Weight	259 g
Width	220 mm

Packaging data

Specification	Value
Package width	290 mm
Package depth	250 mm
Package height	64 mm
Package weight	651 g
Package type	Box
Number of products included	1 pc(s)

Other features

Specification	Value
Supported WAN type	Dynamic IP/Static IP/PPPoE
Supported protocols	IPv6
