Cudy WR11000 wireless router 2.5 Gigabit Ethernet Tri-band (2.4 GHz

WR11000 wireless router 2.5 Gigabit Ethernet Tri-band (2.4 GHz

5 GHz / 6 GHz) Black

Model WR11000EAN 6971690793357

78 specifications

Memory512 MB
SpeedWi-Fi 7 (802.11be)
TypeTabletop router
Weight643.4 g
ColourBlack
Ethernet WANYes

See all specifications

Overview

Memory: 512 MB
Speed: Wi-Fi 7 (802.11be)
Type: Tabletop router
Weight: 643.4 g
Colour: Black
Ethernet WAN: Yes

Brand: Cudy
Category: Wireless Router
Model: WR11000
Part number: WR11000
EAN / UPC: 6971690793357
Also known as: Cudy WR11000 wireless router 2.5 Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 6 GHz) Black

Specifications

78 specifications in 16 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN data transfer rate (max)	5765 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN data transfer rate (first band)	688 Mbit/s
WLAN data transfer rate (second band)	4324 Mbit/s
WLAN data transfer rate (third band)	5765 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	2.5 Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Port triggering	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
Number of guest networks (6 GHz)	1
VPN server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB port	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Wake-on-LAN ready	Yes
Reset button	Yes
WPS push button	Yes
MIMO	Yes
MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	WPA, WPA2, WPA3
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
URL filtering	Yes
IGMP snooping	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
Wall mountable	Yes
LED indicators	LAN, System, WLAN, WPS

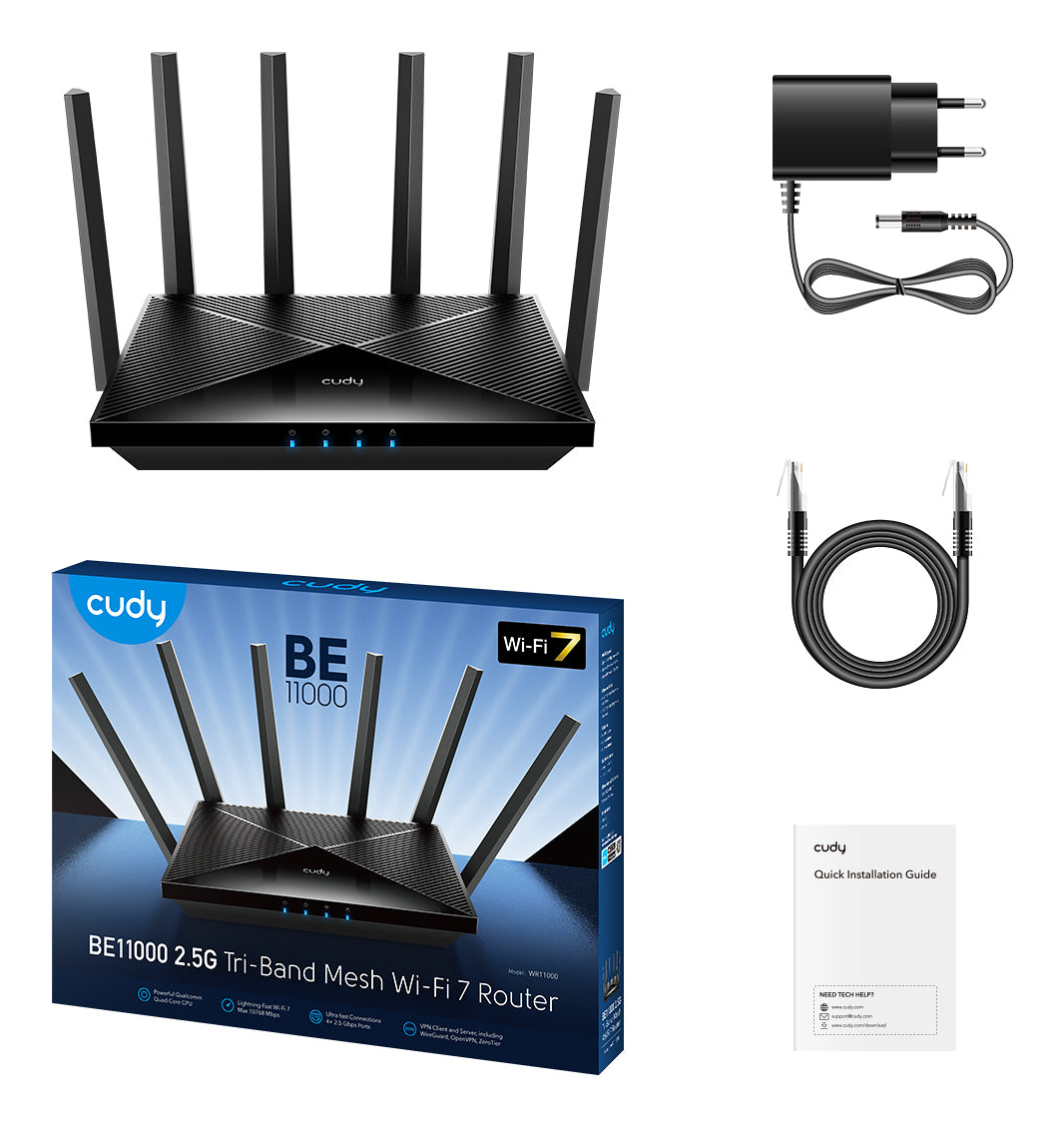

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Compliance certificates	CE, Federal Communications Commission (FCC)

Antenna

Specification	Value
Antenna design	External
Antenna type	2x2
Antenna gain level (max)	5 dBi
Antennas quantity	6
Detachable antenna(s)	No

Features

Specification	Value
Built-in processor	Yes
Processor architecture	ARM Cortex-A53
Processor frequency	1500 MHz
Processor cores	4
Internal memory	512 MB
Internal memory type	DDR4
Flash memory	128 MB

Power

Specification	Value
Power source type	DC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output voltage	12 V
Output current	2 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 70 °C

Weight & dimensions

Specification	Value
Depth	152.5 mm
Height	48.2 mm
Weight	643.4 g
Width	253 mm

Packaging data

Specification	Value
Package width	431 mm
Package depth	324 mm
Package height	58 mm
Package weight	1.24 kg
