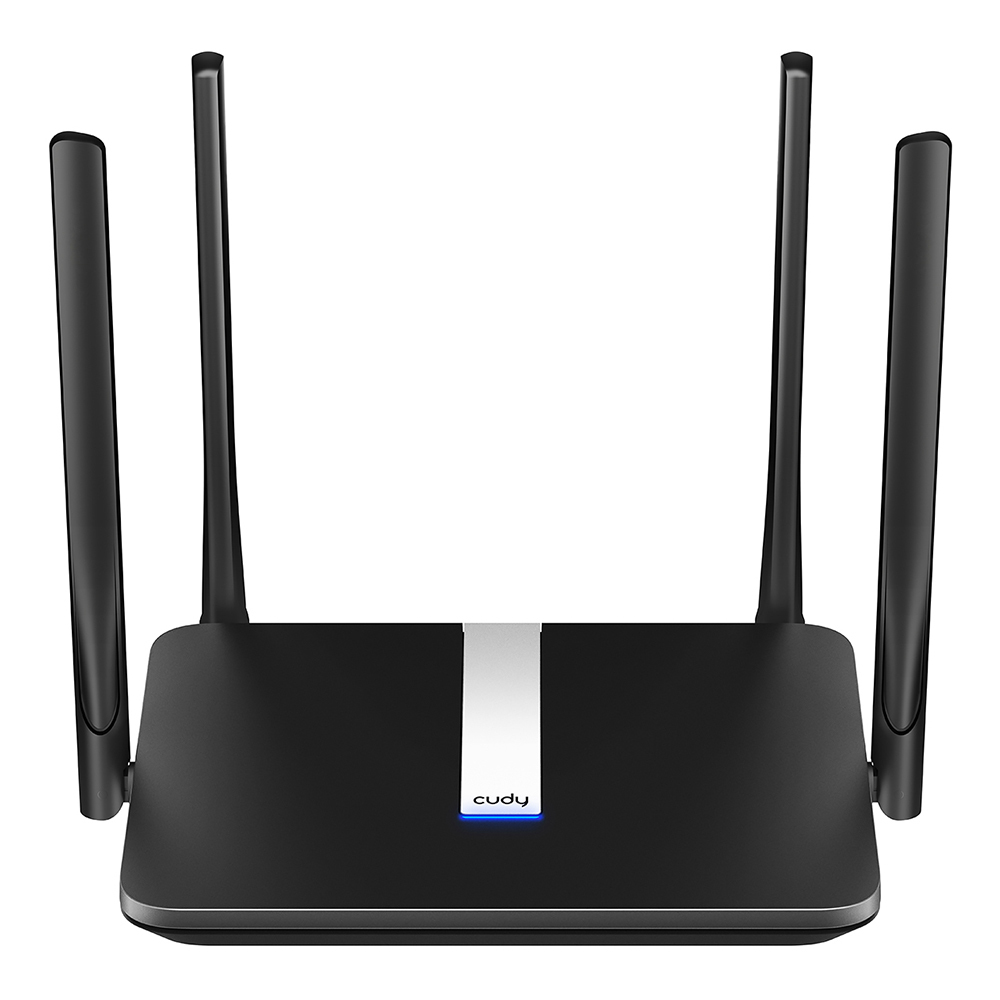

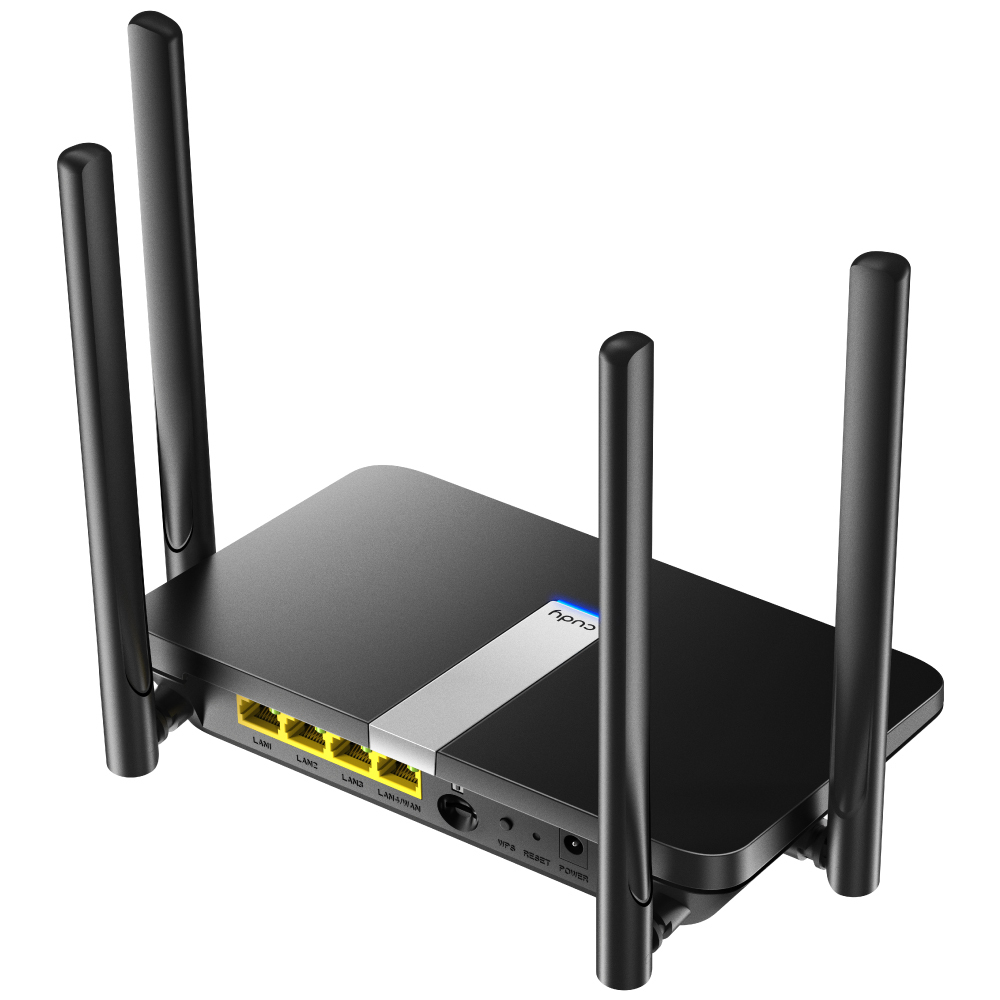

Cudy LT500 wireless router Fast Ethernet Dual-band (2.4 GHz

LT500 wireless router Fast Ethernet Dual-band (2.4 GHz

5 GHz) 4G Black

Model LT500EAN 6971690791209

78 specifications

Memory128 MB
SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
Weight308 g
ColourBlack
Ethernet WANYes

See all specifications

Overview

Memory: 128 MB
Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Weight: 308 g
Colour: Black
Ethernet WAN: Yes

Brand: Cudy
Category: Wireless Router
Model: LT500
Part numbers: LT500, LT500 OUTDOOR_EU
EAN / UPC: 6971690791209, 6971690792848
Also known as: Cudy LT500 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) 4G Black

Specifications

78 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	Yes
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Port forwarding	Yes
Port triggering	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
Wireless radio	Yes
VPN support	PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier

Mobile network

Specification	Value
Mobile network generation	4G
4G	Yes
2G standards	Edge, GSM
3G standards	WCDMA
4G standard	LTE-TDD & LTE-FDD
SIM card type	NanoSIM

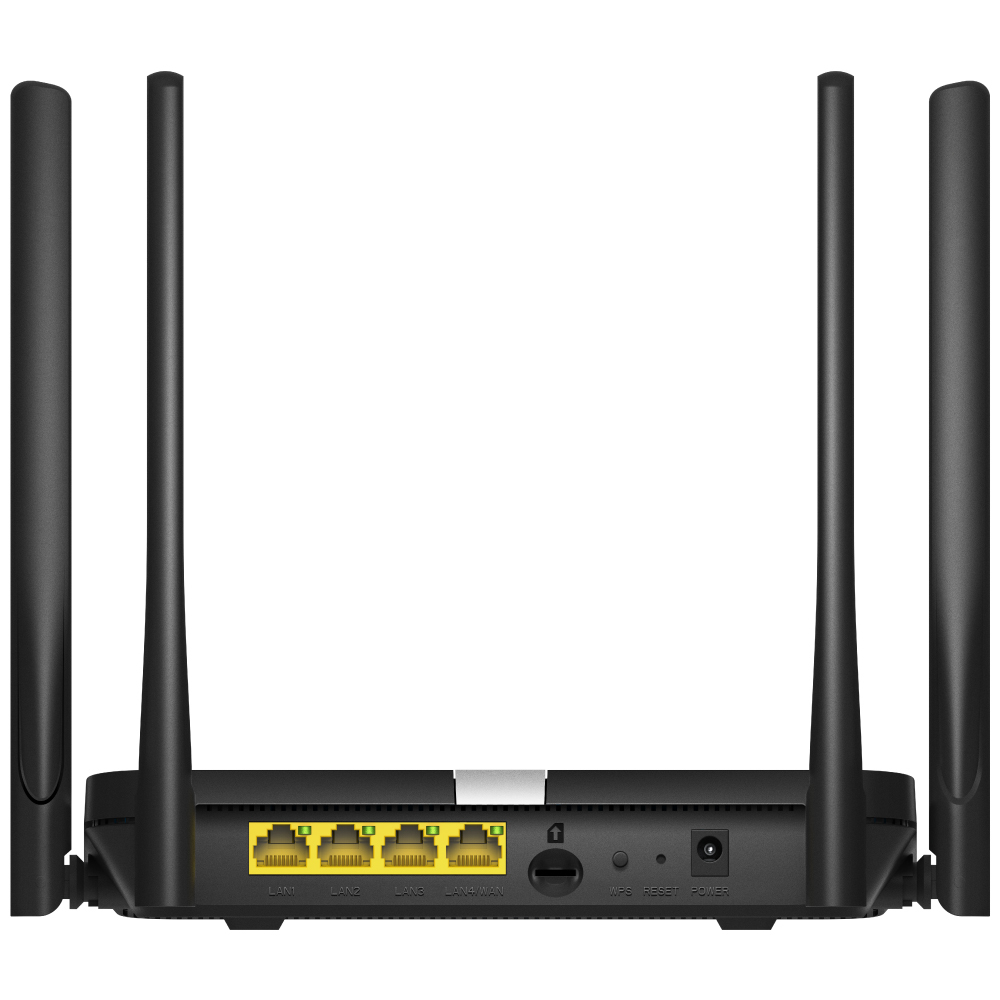

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Reset button	Yes
WPS push button	Yes
MIMO	Yes
MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	WPA, WPA2, WPA3
Guest access	Yes
Parental control	Yes
MAC address filtering	Yes
IP address filtering	Yes
IGMP snooping	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
LED indicators	Link, Power, System

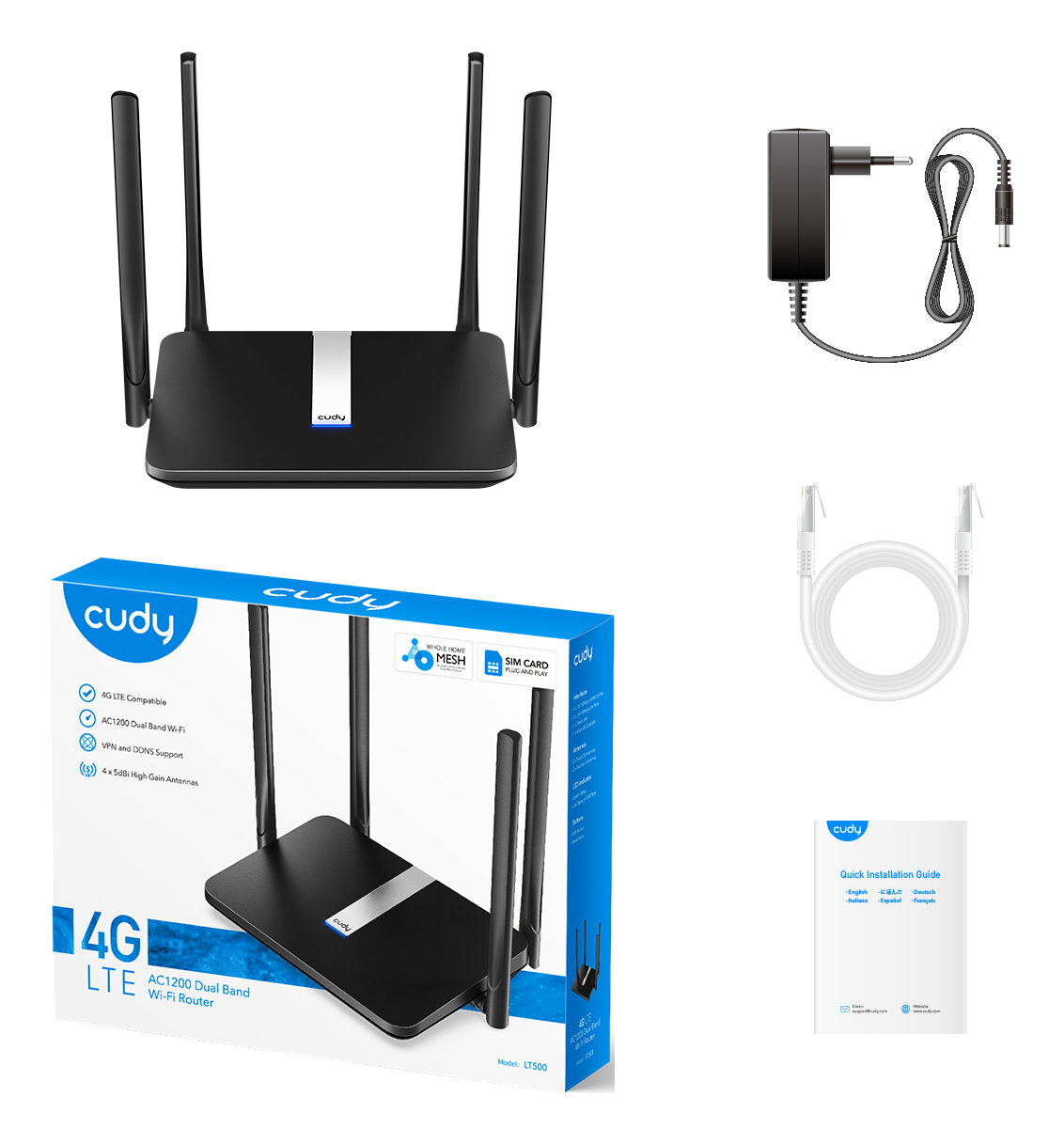

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	5 dBi
Antennas quantity	4

Features

Specification	Value
Internal memory	128 MB
Flash memory	16 MB

Power

Specification	Value
Power source type	DC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output voltage	12 V
Output current	1 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 98SE, Windows Vista, Windows XP
Mac operating systems supported	MacOS
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	133.2 mm
Height	38.3 mm
Weight	308 g
Width	204.8 mm

Packaging data

Specification	Value
Package width	340 mm
Package depth	275 mm
Package height	60 mm
Package weight	714 g
Package type	Box
Number of products included	1 pc(s)
