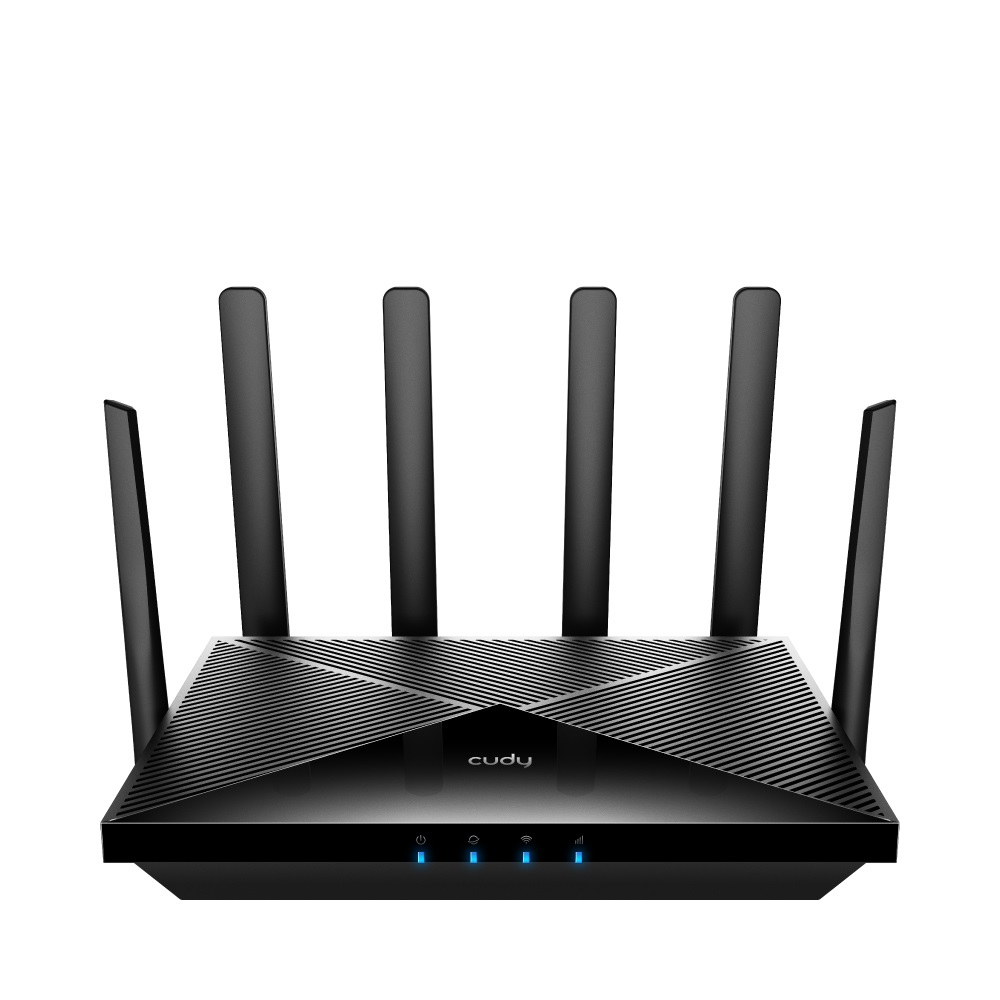

Cudy LT12 wireless router Gigabit Ethernet Dual-band (2.4 GHz

LT12 wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) 4G Black

Model LT12Part no. LT12_EU

75 specifications

Memory256 MB
SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)

See all specifications

Overview

Memory: 256 MB
Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Brand: Cudy
Category: Wireless Router
Model: LT12
Part number: LT12_EU
Also known as: Cudy LT12 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 4G Black

Specifications

75 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	Yes
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Modulation	256-QAM

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
VPN support	PPTP/L2TP/OpenVPN/WireGuard/Zerotier

Mobile network

Specification	Value
Mobile network generation	4G
Dual SIM support	Yes
3G standards	DC-HSPA+, WCDMA
4G standard	LTE-TDD & LTE-FDD
Short Message Service (SMS)	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
DC-in jack	Yes

Management features

Specification	Value
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes
MIMO	Yes
MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	WPA, WPA2, WPA3
Firewall	Yes
Firewall security	Mac Filter, IP Filter, Domain Filter
Schedule access	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4/IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
LED indicators	Power, WLAN
On/off switch	Yes

Packaging content

Specification	Value

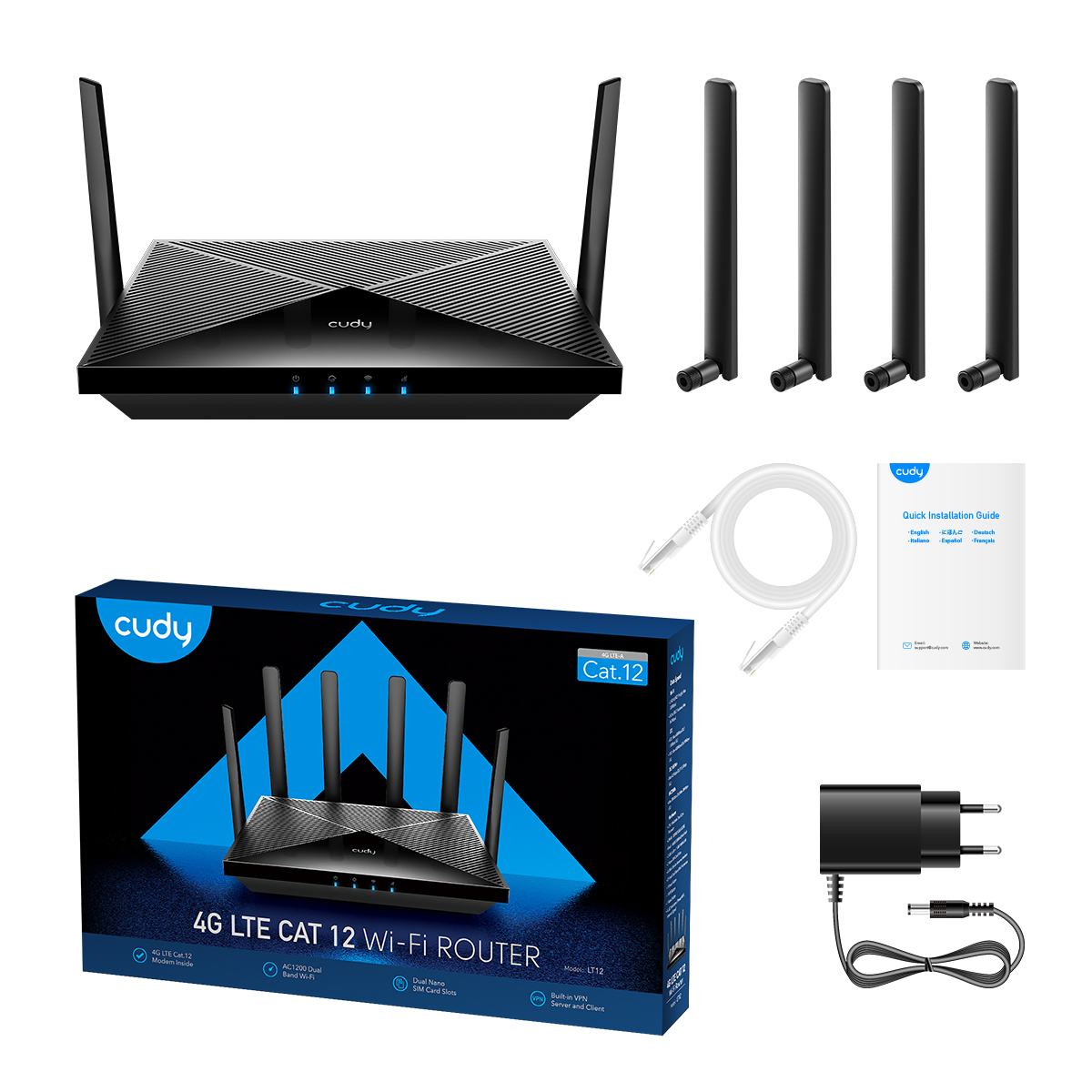

Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Antenna

Specification	Value
Antenna design	External
Antenna connector type	SMA
Antennas quantity	6
Detachable antenna(s)	Yes

Features

Specification	Value
Built-in processor	Yes
Processor manufacturer	MediaTek
Processor frequency	880 MHz
Processor cores	2
Internal memory	256 MB
Internal memory type	DDR3
Flash memory	16 MB

Power

Specification	Value
Power source type	DC
AC input voltage	90 - 260 V
Output voltage	12 V
Output current	1.5 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 2000, Win
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	253 mm
Height	48.2 mm
Width	152.5 mm

Packaging data

Specification	Value
Package width	265 mm
Package depth	415 mm
Package height	90 mm
