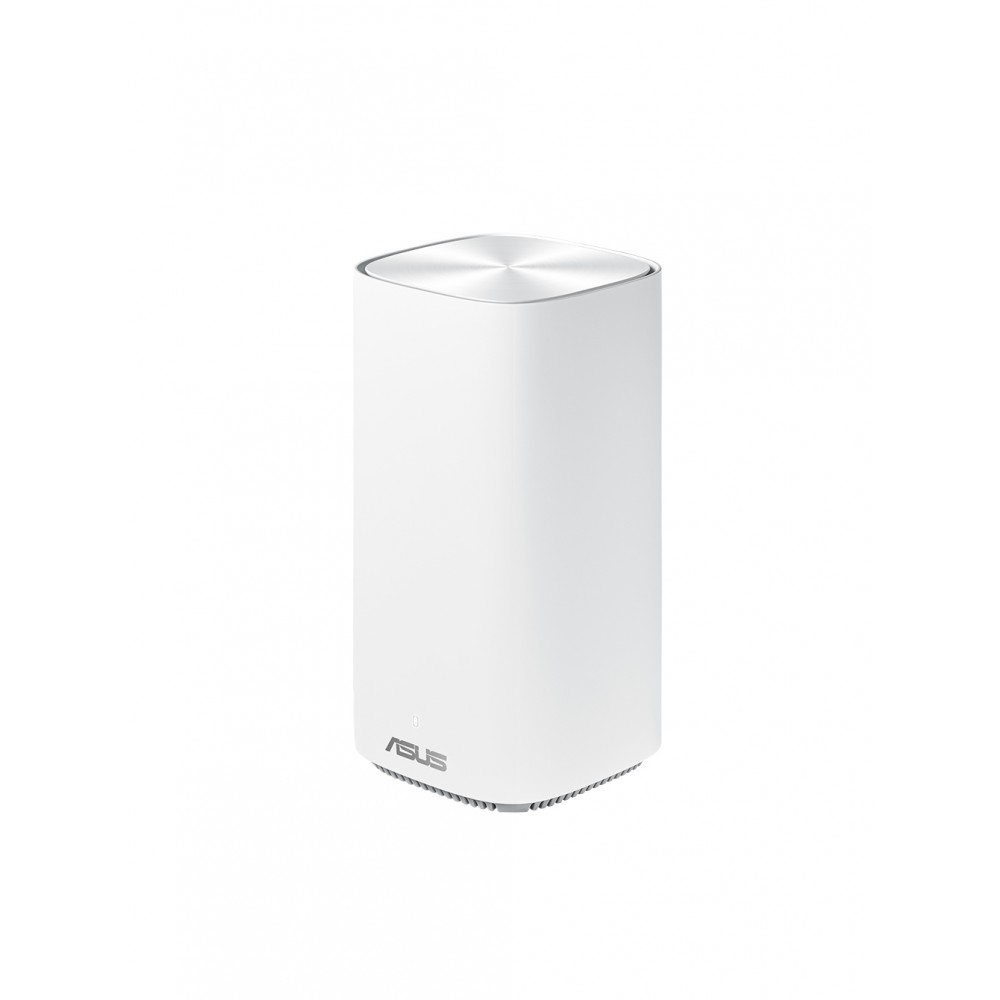

ASUS ZenWiFi AC Mini (CD6)

ZenWiFi AC Mini (CD6)

Model ZenWiFi AC Mini (CD6)Part no. 90IG05S0-BO9410EAN 4718017600460

74 specifications

Memory128 MB
SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
Weight257 g
ColourWhite
Ethernet WANYes

See all specifications

Overview

Memory: 128 MB
Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Weight: 257 g
Colour: White
Ethernet WAN: Yes

Brand: ASUS
Category: Wireless Router
Model: ZenWiFi AC Mini (CD6)
Part number: 90IG05S0-BO9410
EAN / UPC: 4718017600460
Also known as: ASUS ZenWiFi AC Mini (CD6) wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White

Specifications

74 specifications in 19 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1467 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
Static route	Yes
Wireless Distribution System (WDS) bridge	Yes

Mobile network

Specification	Value
3G	No
4G	Yes
5G	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB port	No
Maximum memory card size	128 GB
DC-in jack	Yes

Management features

Specification	Value
Bandwidth control	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
Intelligent Mesh technology	Yes
WPS push button	Yes
MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	802.1x RADIUS, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPS
Firewall	Yes
Guest access	Yes
Parental control	Yes
MAC address filtering	Yes
MAC address table	64 entries
System event log	Yes
DMZ support	Yes
Network address translation (NAT)	Yes
NAT functionality	PPTP, L2TP, IPSec

Protocols

Specification	Value
DHCP client	No
DHCP server	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	White
LED indicators	Power

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Warranty card	Yes
Quick start guide	Yes

Antenna

Specification	Value
Antenna design	Internal
Antennas quantity	4

Features

Specification	Value
Built-in processor	Yes
Processor frequency	2400 MHz
Internal memory	128 MB
Flash memory	32 MB
Works with Amazon Alexa	Yes

Power

Specification	Value
Power source type	DC
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	12 V
Output current	1 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	50 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	20 - 90%
Storage temperature (T-T)	0 - 70 °C

System requirements

Specification	Value
Mobile operating systems supported	Yes

Weight & dimensions

Specification	Value
Weight	257 g

Packaging data

Specification	Value
Number of products included	2 pc(s)

Logistics data

Specification	Value
Harmonized System (HS) code	85176990

Other features

Specification	Value
Input current	1 A
