ZenWiFi AC
Model ZenWiFi ACPart no. 90IG04T0-MA1R4T
45 specifications
- Memory256 MB
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- Weight730 g
- ColourWhite
- Ethernet WANYes
Overview
- Memory
- 256 MB
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Weight
- 730 g
- Colour
- White
- Ethernet WAN
- Yes
- Brand
- ASUS
- Category
- Wireless Router
- Model
- ZenWiFi AC
- Part numbers
- 90IG04T0-MA1R4T, 90IG04T0-MA1R2T
- Also known as
- ASUS ZenWiFi AC wireless router Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 5 GHz) White
Specifications
45 specifications in 13 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1733 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| SSID-based VLAN assignment | Yes |
| Media server | Yes |
| Printer server | Yes |
| VPN server | IPSec Pass-Through, PPTP Pass-Through, PPTP Server, OpenVPN Server |
| VPN support | IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP server, OpenVPN server, PPTP client, L2TP client, OpenVPN client |

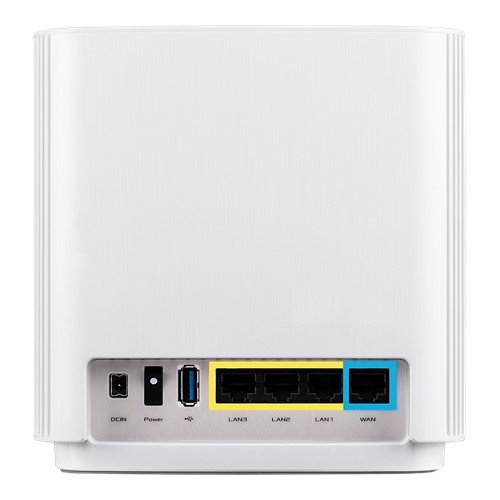

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPS |
| System event log | Yes |
| DMZ support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| LED indicators | Power |
| On/off switch | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
| Antennas quantity | 6 |
Features
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 128 MB |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 19 V |
| Output current | 1.75 A |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | macOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 75 mm |
| Height | 162 mm |
| Weight | 730 g |
| Width | 160 mm |
