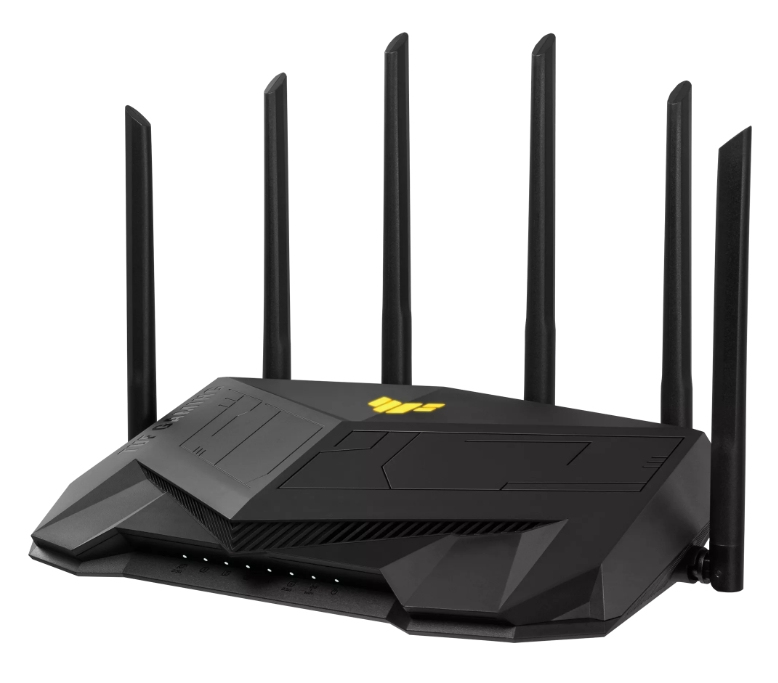

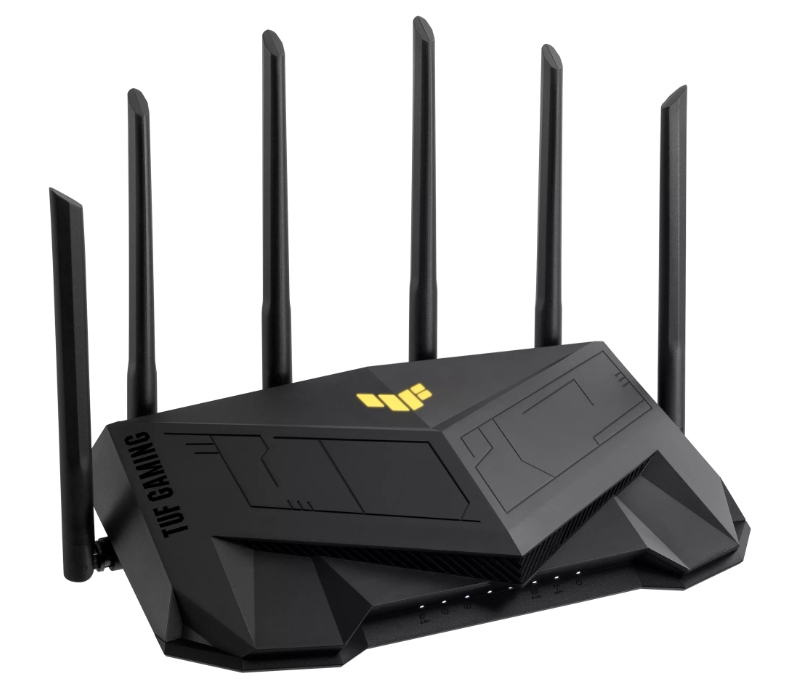

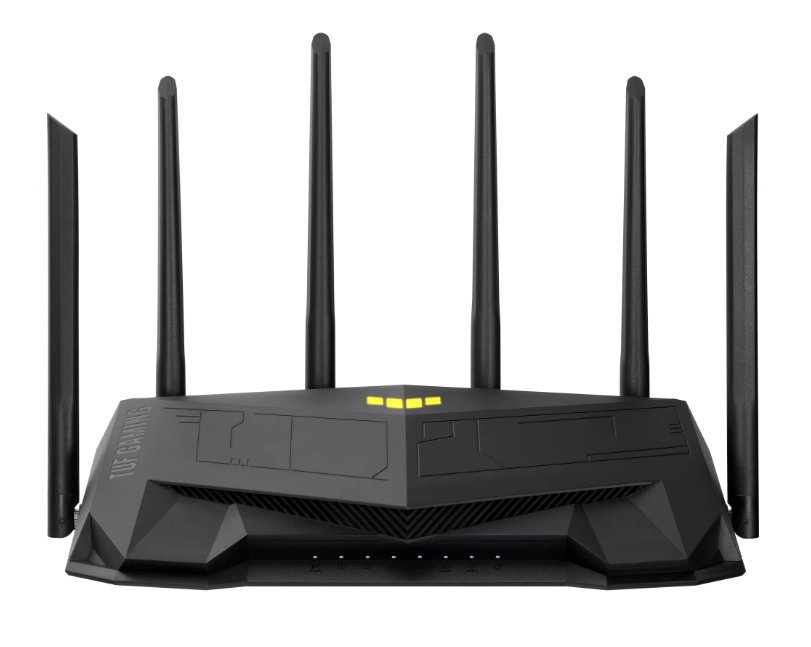

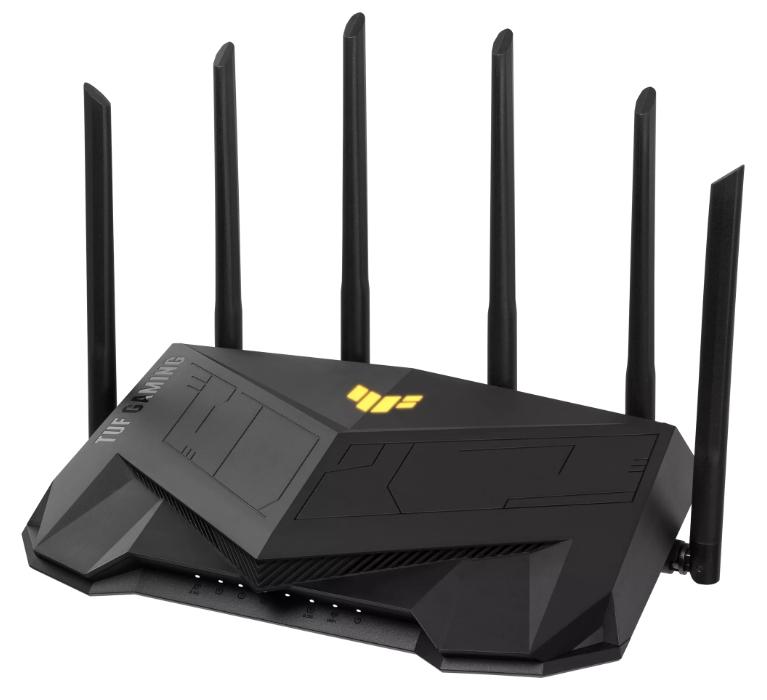

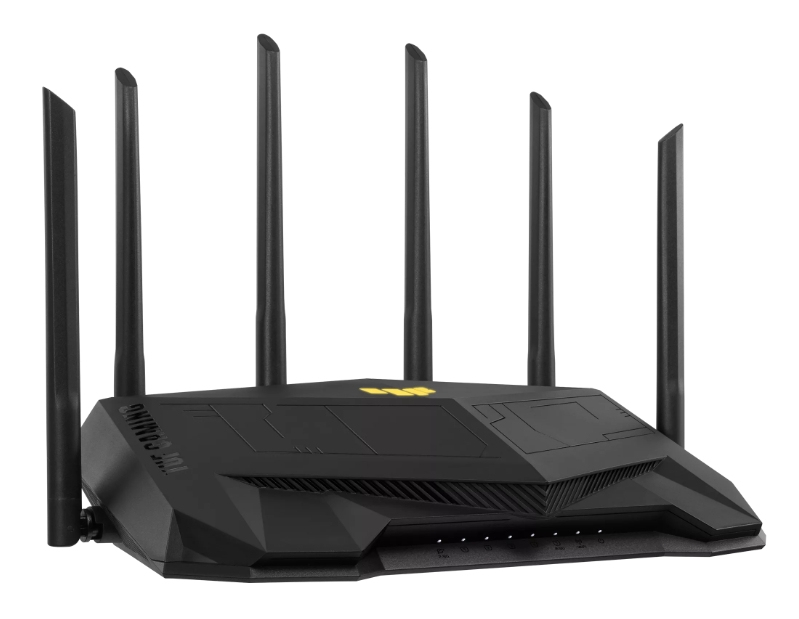

TUF Gaming AX6000 (TUF-AX6000)
Model TUF Gaming AX6000 (TUF-AX6000)Part no. 90IG07X0-MO3C00EAN 195553897006
73 specifications
- Memory512 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- Weight696 g
- ColourBlack
- Ethernet WANYes
Overview
- Memory
- 512 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Weight
- 696 g
- Colour
- Black
- Ethernet WAN
- Yes
- Brand
- ASUS
- Category
- Wireless Router
- Model
- TUF Gaming AX6000 (TUF-AX6000)
- Part number
- 90IG07X0-MO3C00
- EAN / UPC
- 195553897006, 197105020399, 4711081897002, 4711081897026
- Also known as
- ASUS TUF Gaming AX6000 (TUF-AX6000) wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Specifications
73 specifications in 14 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 4804 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 1148 Mbit/s |
| WLAN data transfer rate (second band) | 4804 Mbit/s |
| Modulation | 1024-QAM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| SSID-based VLAN assignment | Yes |
| Media server | Yes |
| VPN support | VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion |

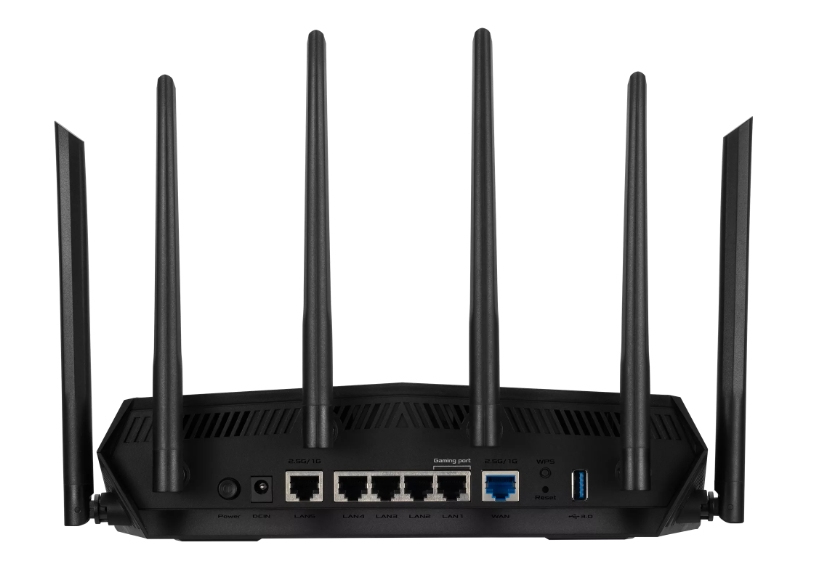

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Bandwidth control | Yes |
| Quality of Service (QoS) support | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| Intelligent Mesh technology | Yes |
| WPS push button | Yes |
| MIMO | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Firewall | Yes |
| Guest access | Yes |
| Schedule access | Yes |
| Parental control | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| MAC address table | 64 entries |
| URL filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| NAT functionality | PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| LED indicators | LAN, Power, WAN, WLAN |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Antenna included | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna type | 4x4 |
| Antennas quantity | 6 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 2 MHz |
| Processor cores | 4 |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Works with Amazon Alexa | Yes |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Output current | 2.5 A |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 696 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Number of products included | 1 pc(s) |
