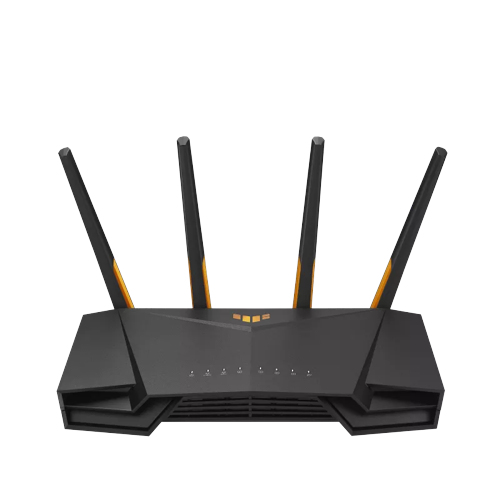

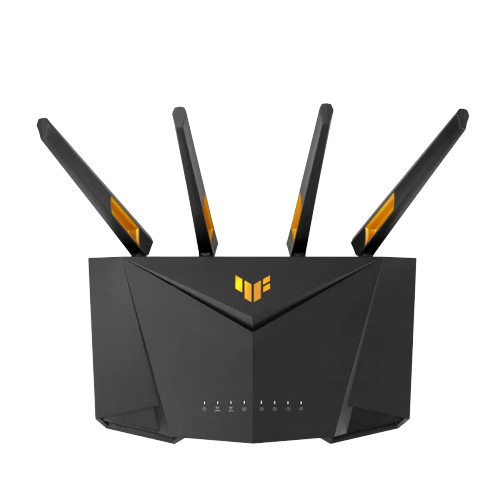

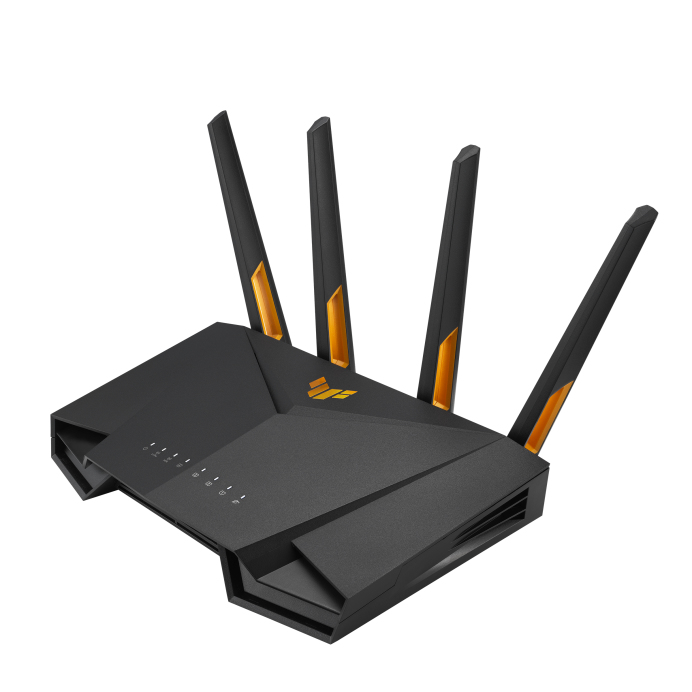

TUF Gaming AX3000 V2
Model TUF Gaming AX3000 V2Part no. 90IG0790-MU9B00EAN 4711081760351
68 specifications
- Memory512 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- Weight570 g
- ColourBlack, Orange
- Ethernet WANYes
Overview
- Memory
- 512 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Weight
- 570 g
- Colour
- Black, Orange
- Ethernet WAN
- Yes
- Brand
- ASUS
- Category
- Wireless Router
- Model
- TUF Gaming AX3000 V2
- Part numbers
- 90IG0790-MU9B00, 90IG0790-MO3B00
- EAN / UPC
- 4711081760351, 4711081760344, 4718017623902
- Also known as
- ASUS TUF Gaming AX3000 V2 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black, Orange
Specifications
68 specifications in 14 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| 3G/4G USB modem compatibility | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 3 |
| Number of guest networks (5 GHz) | 3 |
| Support Samba (storage) | Yes |
| Built-in FTP server | Yes |
| Media server | Yes |
| VPN server | OVPN, IPSec, PPTP |

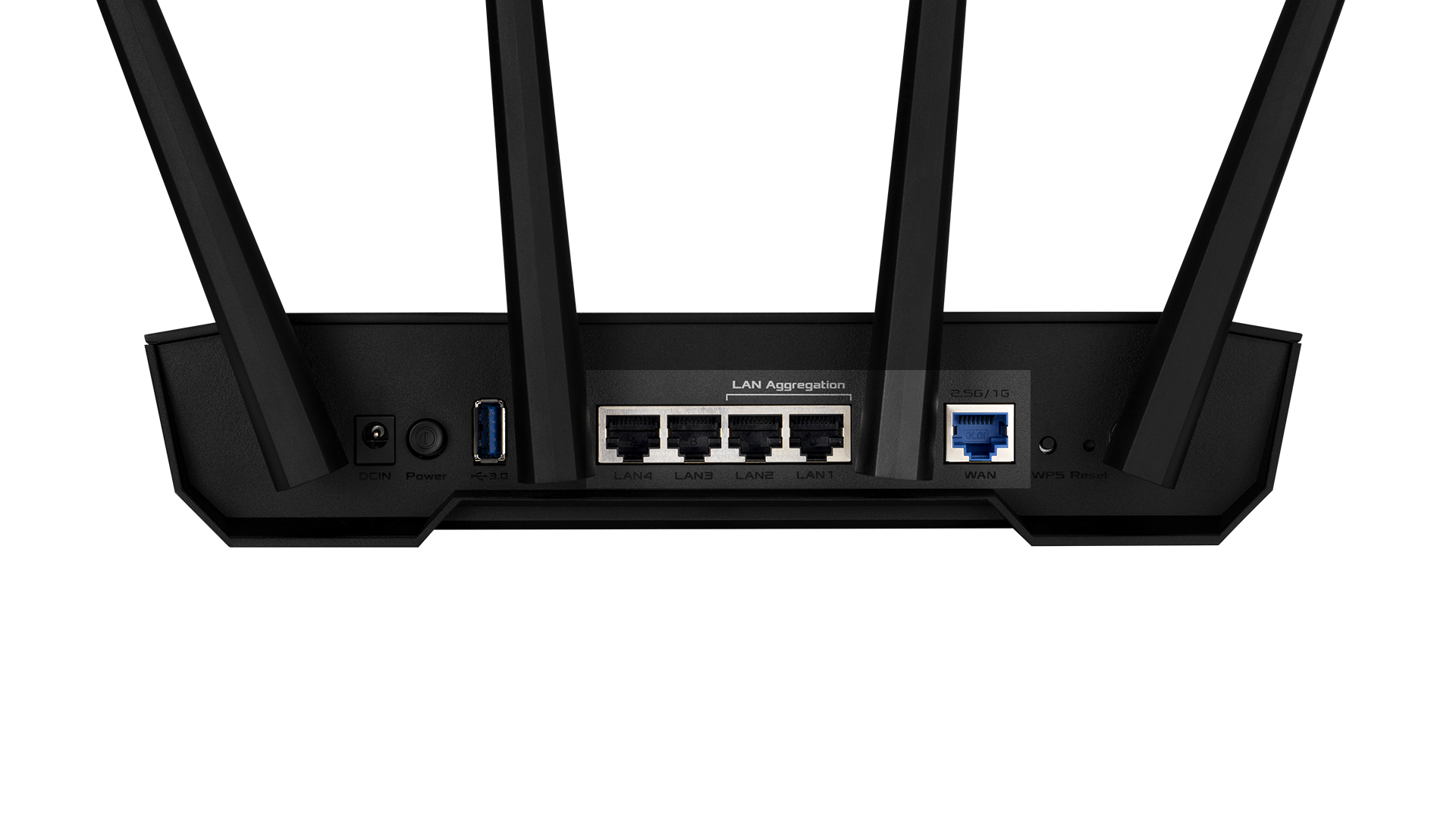

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Management features
| Specification | Value |
|---|---|
| Bandwidth control | Yes |
| Quality of Service (QoS) support | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| Intelligent Mesh technology | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPS |
| Firewall | Yes |
| Guest access | Yes |
| Parental control | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| MAC address table | 64 entries |
| System event log | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| NAT functionality | PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black, Orange |
| LED indicators | LAN, Power, Status, WAN |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 4 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1500 MHz |
| Processor cores | 3 |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Works with Amazon Alexa | Yes |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 19 V |
| Output current | 1.75 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 178 mm |
| Height | 186 mm |
| Weight | 570 g |
| Width | 265 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 375 mm |
| Package depth | 368 mm |
| Package height | 89 mm |
| Package type | Box |
