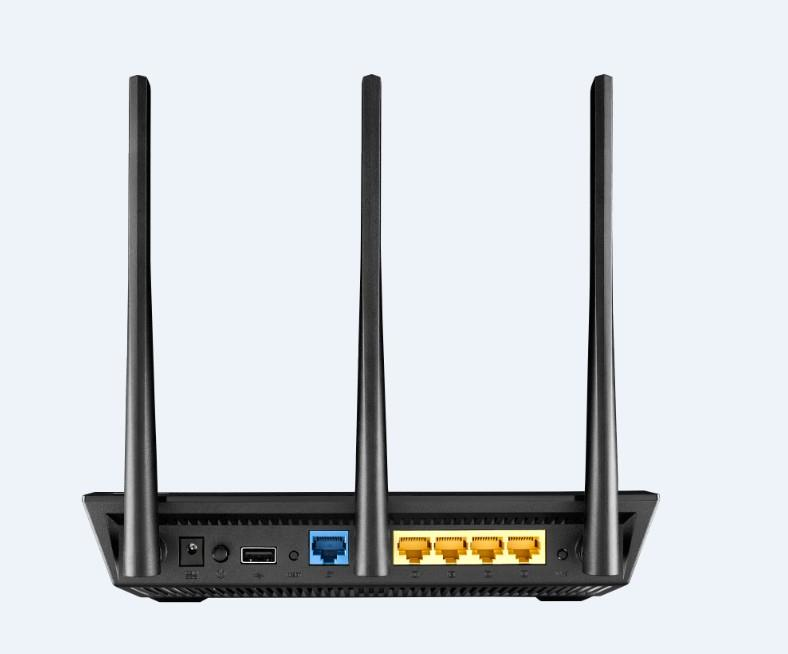

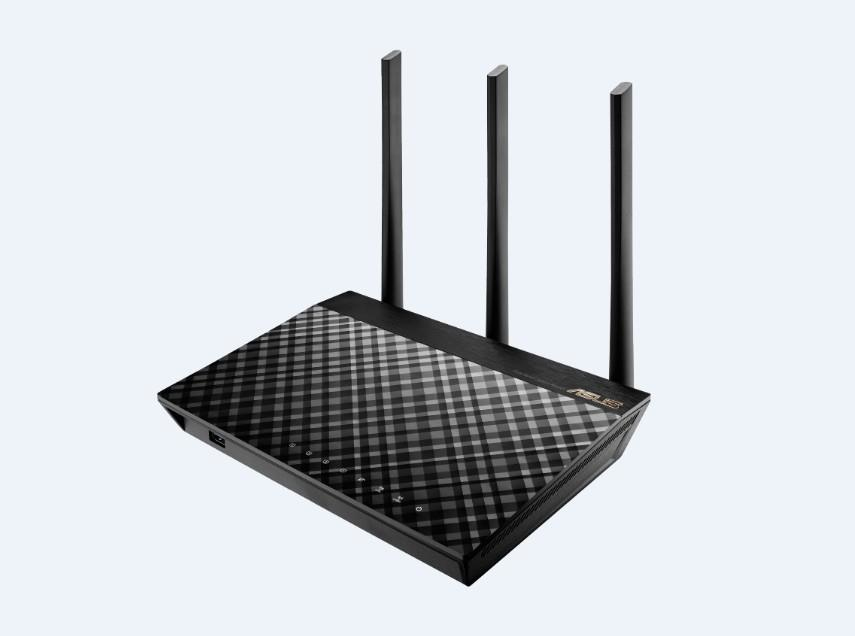

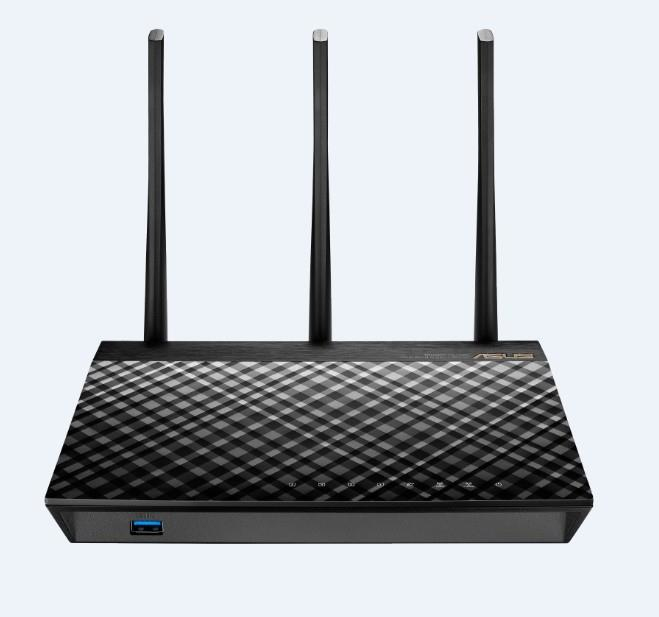

ASUS RT-N66U C1

ASUS RT-N66U C1

Model RT-N66U C1Part no. 90IG0460-BM3010EAN 4712900704860

55 specifications

SpeedWi-Fi 4 (802.11n)
TypeTabletop router
Weight660 g
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Type: Tabletop router
Weight: 660 g
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Brand: ASUS
Category: Wireless Router
Model: RT-N66U C1
Part number: 90IG0460-BM3010
EAN / UPC: 4712900704860
Also known as: ASUS RT-N66U C1 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

55 specifications in 15 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	450 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
VPN support	IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, PPTP client, L2TP client

Mobile network

Specification	Value
3G	No
4G	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB port	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPS
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
Wall mountable	Yes
LED indicators	LAN, Power, WAN, WLAN
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick start guide	Yes

Antenna

Specification	Value
Antenna design	External
Antennas quantity	3

Features

Specification	Value
Processor cores	2

Power

Specification	Value
Power source type	AC
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	19 V
Output current	1.75 A

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mou
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	148 mm
Height	45 mm
Weight	660 g
Width	218 mm
