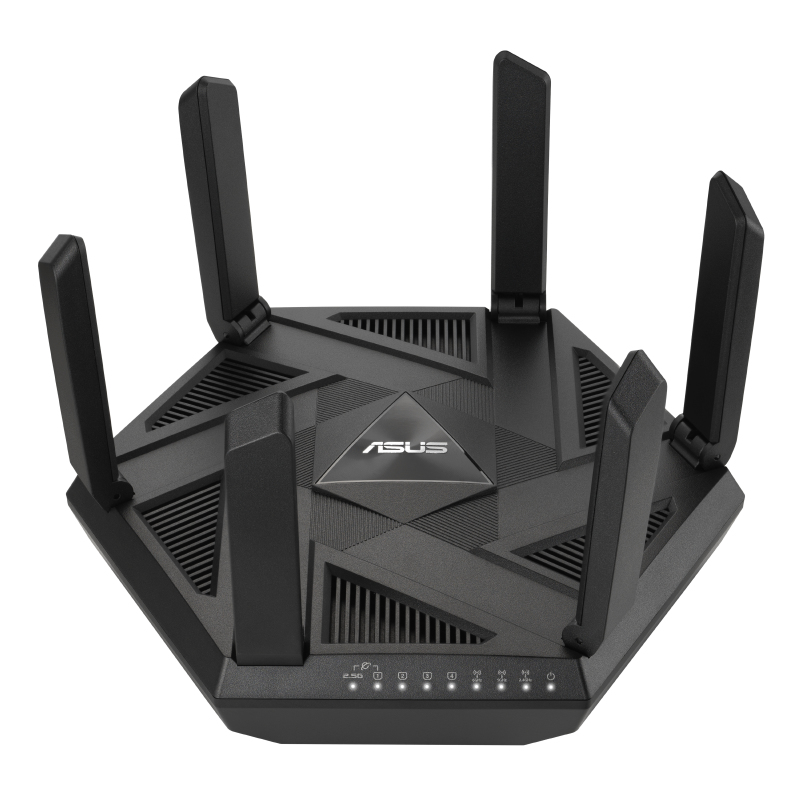

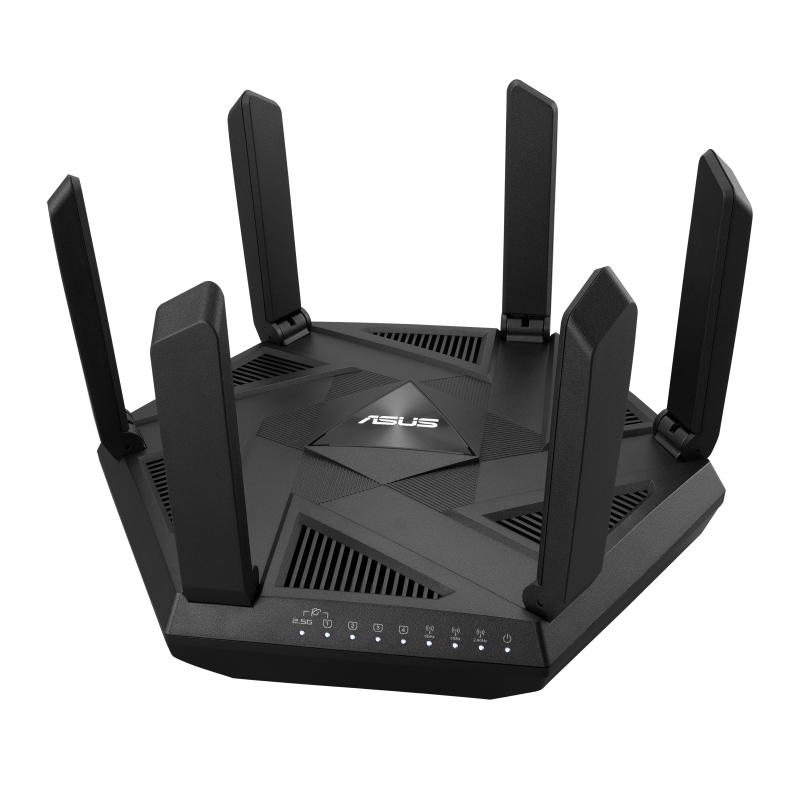

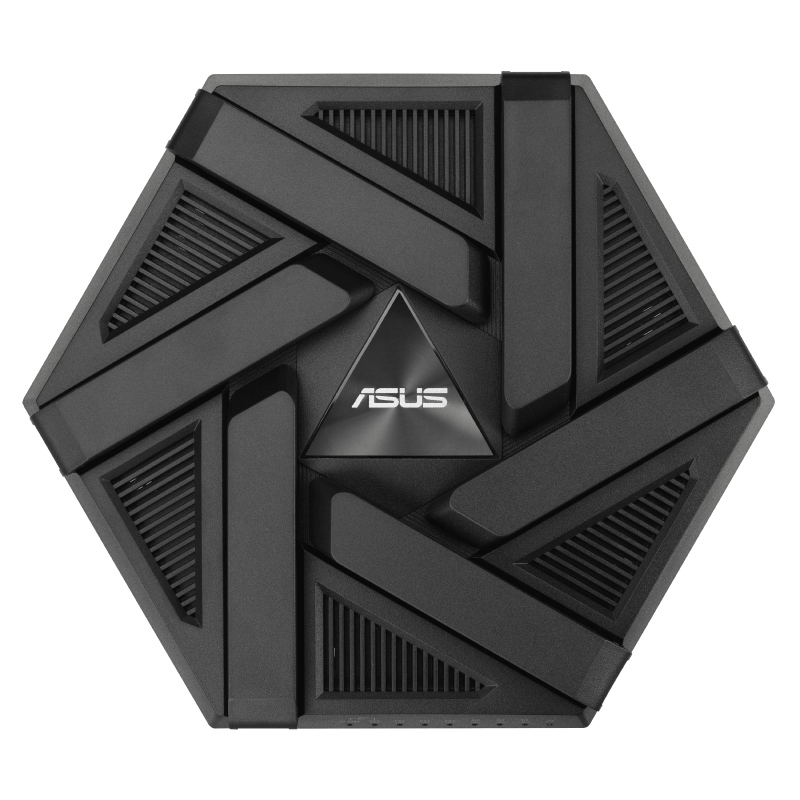

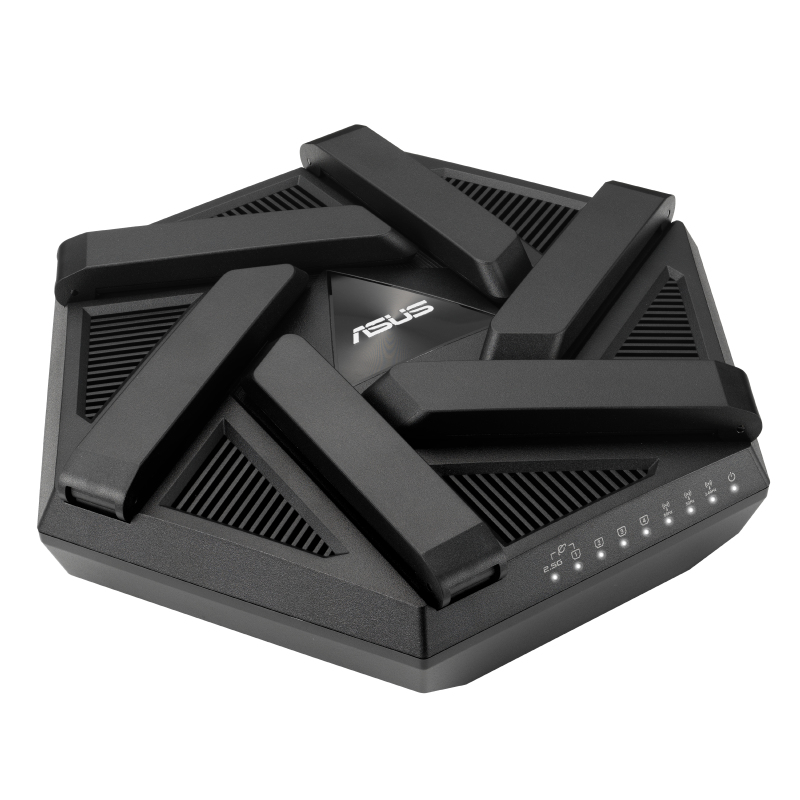

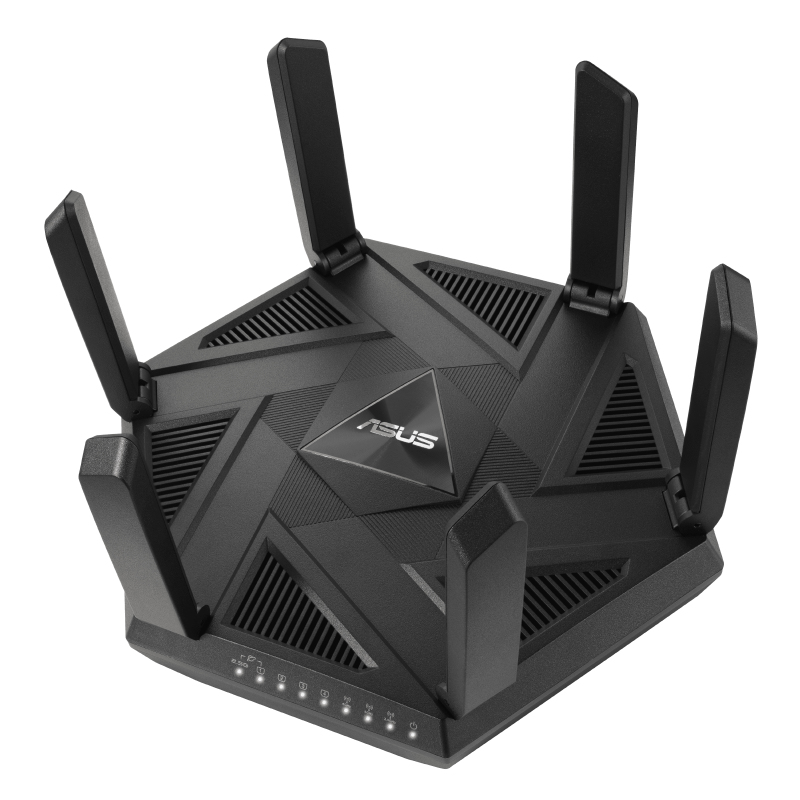

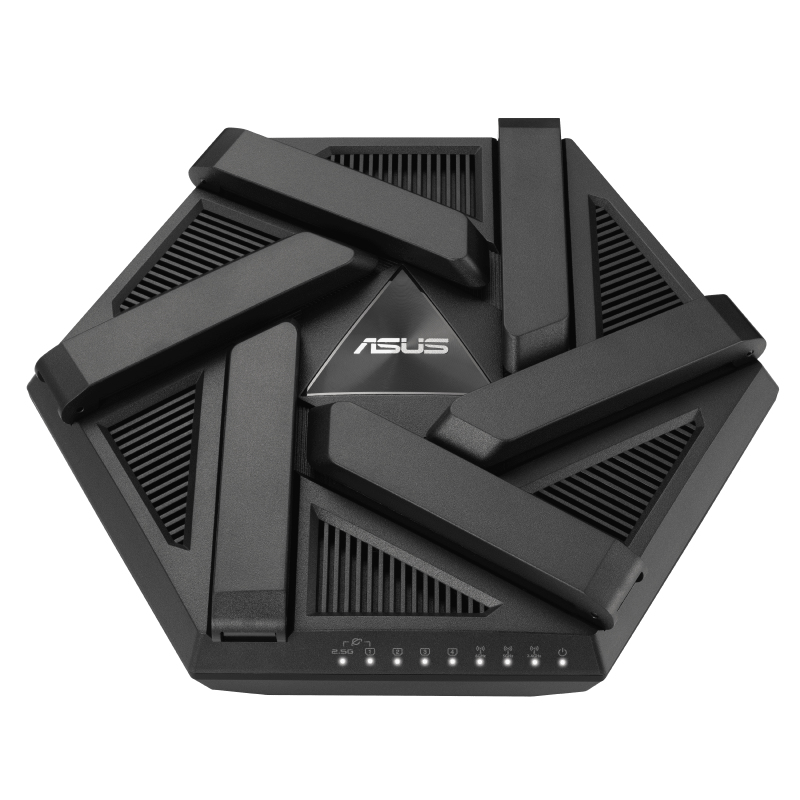

RT-AXE7800 wireless router Tri-band (2.4 GHz
5 GHz / 6 GHz) Black
Model RT-AXE7800Part no. 90IG07B0-MU9B00EAN 195553632881
71 specifications
- Memory512 MB
- SpeedWi-Fi 6E (802.11ax)
- TypeTabletop router
- Weight1.03 kg
- ColourBlack
- Ethernet WANYes
Overview
- Memory
- 512 MB
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Tabletop router
- Weight
- 1.03 kg
- Colour
- Black
- Ethernet WAN
- Yes
- Brand
- ASUS
- Category
- Wireless Router
- Model
- RT-AXE7800
- Part number
- 90IG07B0-MU9B00
- EAN / UPC
- 195553632881, 4711081632917
- Also known as
- ASUS RT-AXE7800 wireless router Tri-band (2.4 GHz / 5 GHz / 6 GHz) Black
Specifications
71 specifications in 13 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN data transfer rate (max) | 4804 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 4804 Mbit/s |
| WLAN data transfer rate (third band) | 2402 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 3 |
| Number of guest networks (5 GHz) | 3 |
| Support Samba (storage) | Yes |
| Built-in FTP server | Yes |
| Media server | Yes |
| VPN server | IPSec, OVPN, PPTP |
| VPN support | VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion |

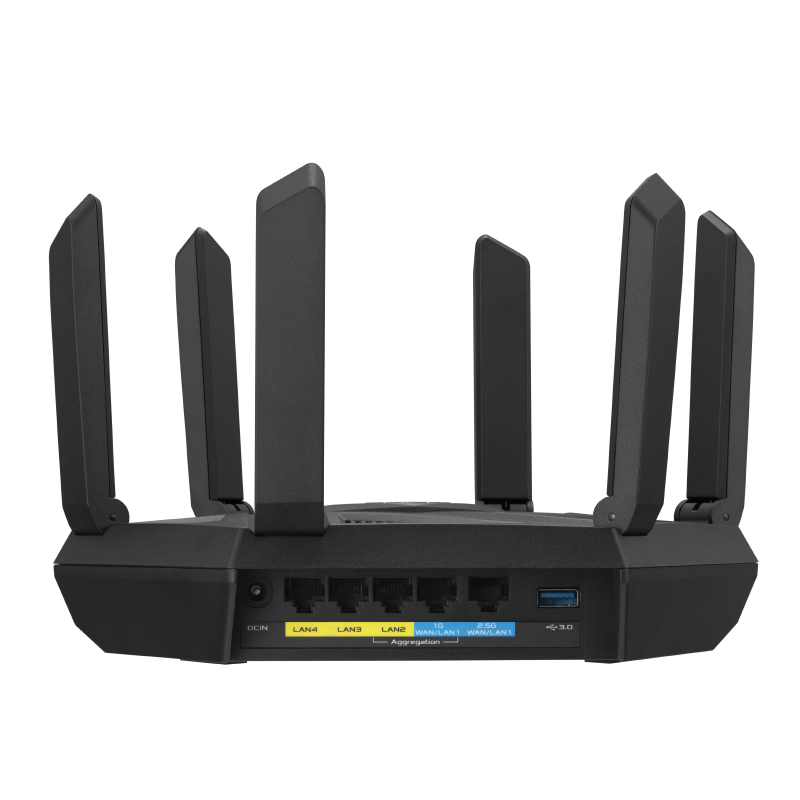

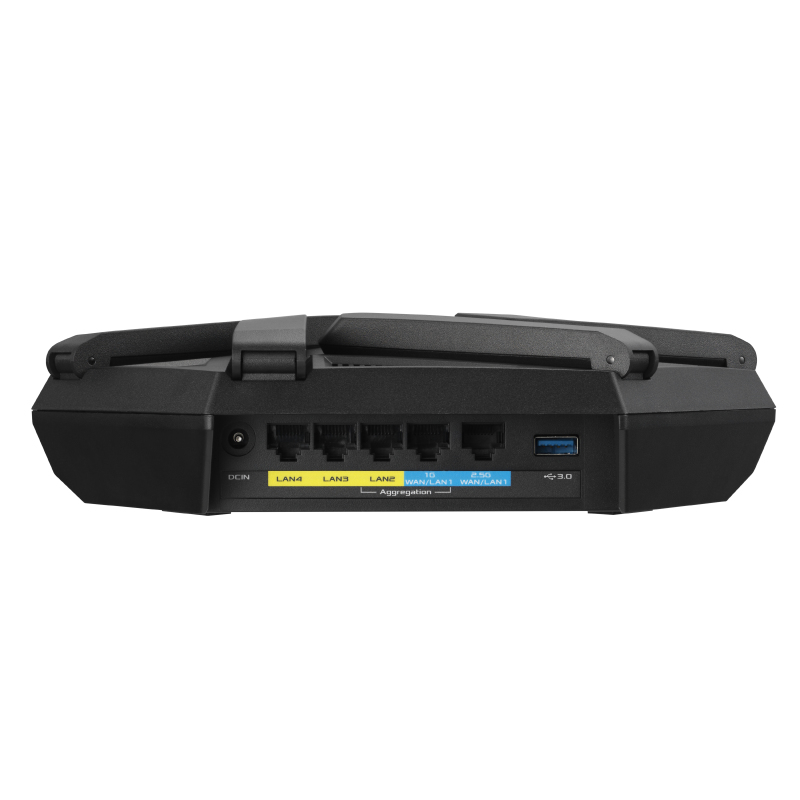

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Bandwidth control | Yes |
| Quality of Service (QoS) support | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| Intelligent Mesh technology | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSH, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPS |
| Firewall | Yes |
| Guest access | Yes |
| Parental control | Yes |
| MAC address filtering | Yes |
| URL filtering | Yes |
| System event log | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| NAT functionality | PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| LED indicators | LAN, Power, WAN |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Warranty card | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 6 |
| Detachable antenna(s) | No |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1700 MHz |
| Processor cores | 4 |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Works with Amazon Alexa | Yes |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Output current | 3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.03 kg |
