RT-AX88U Pro
Model RT-AX88U ProPart no. 90IG0820-MO3A00EAN 4711081911104
72 specifications
- Memory1000 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- OSASUSWRT
- Weight1.01 kg
- ColourBlack
Overview
- Memory
- 1000 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- OS
- ASUSWRT
- Weight
- 1.01 kg
- Colour
- Black
- Brand
- ASUS
- Category
- Wireless Router
- Model
- RT-AX88U Pro
- Part numbers
- 90IG0820-MO3A00, RT-AX88U PRO
- EAN / UPC
- 4711081911104, 195553911054, 4711081911111
- Also known as
- ASUS RT-AX88U Pro wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Specifications
72 specifications in 13 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 4804 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 1148 Mbit/s |
| WLAN data transfer rate (second band) | 4804 Mbit/s |
| Modulation | 1024-QAM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ax |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 3 |
| Number of guest networks (5 GHz) | 3 |
| Support Samba (storage) | Yes |
| Built-in FTP server | Yes |
| Media server | Yes |
| VPN support | Instant Guard VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion |

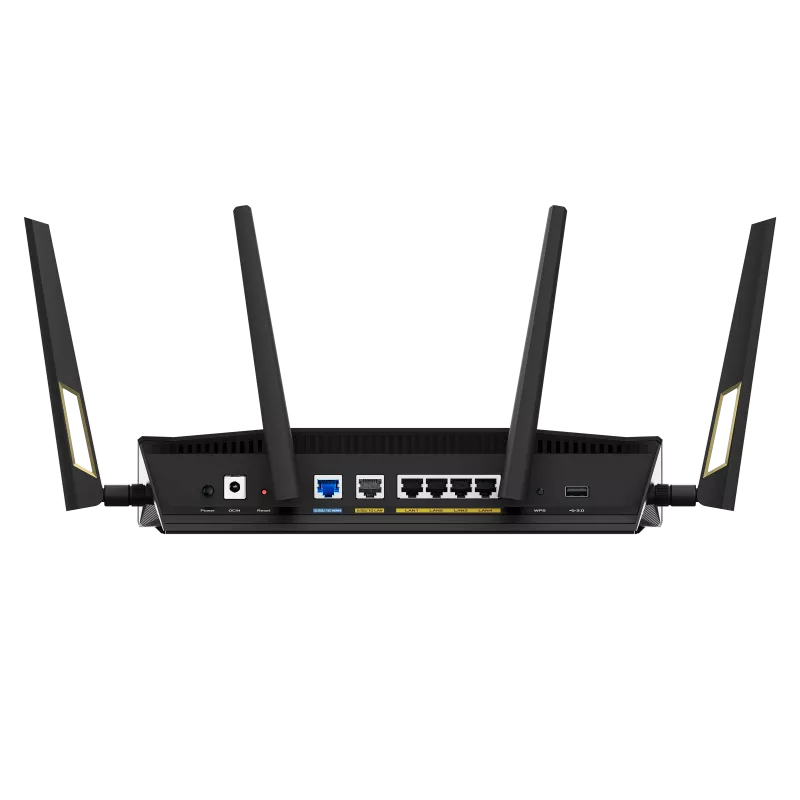

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Management features
| Specification | Value |
|---|---|
| Bandwidth control | Yes |
| Quality of Service (QoS) support | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | IPSec, SSH, SSID, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-PSK, WPS |
| Firewall | Yes |
| Firewall security | Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 |
| Parental control | Yes |
| MAC address filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| NAT functionality | PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| Supported network protocols | PPPoE, PPTP, L2TP, Automatic IP, Static IP |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| LED indicators | LAN, Power, USB, WAN, WPS |
| On/off switch | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 4 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 2000 MHz |
| Processor cores | 4 |
| Internal memory | 1000 MB |
| Flash memory | 256 MB |
| Works with Amazon Alexa | Yes |
| Operating system installed | ASUSWRT |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 19 V |
| Output current | 2.37 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 188.7 mm |
| Height | 60.5 mm |
| Weight | 1.01 kg |
| Width | 300 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 385 mm |
| Package depth | 250 mm |
| Package height | 126 mm |
| Package weight | 2.65 kg |
| Package type | Box |
