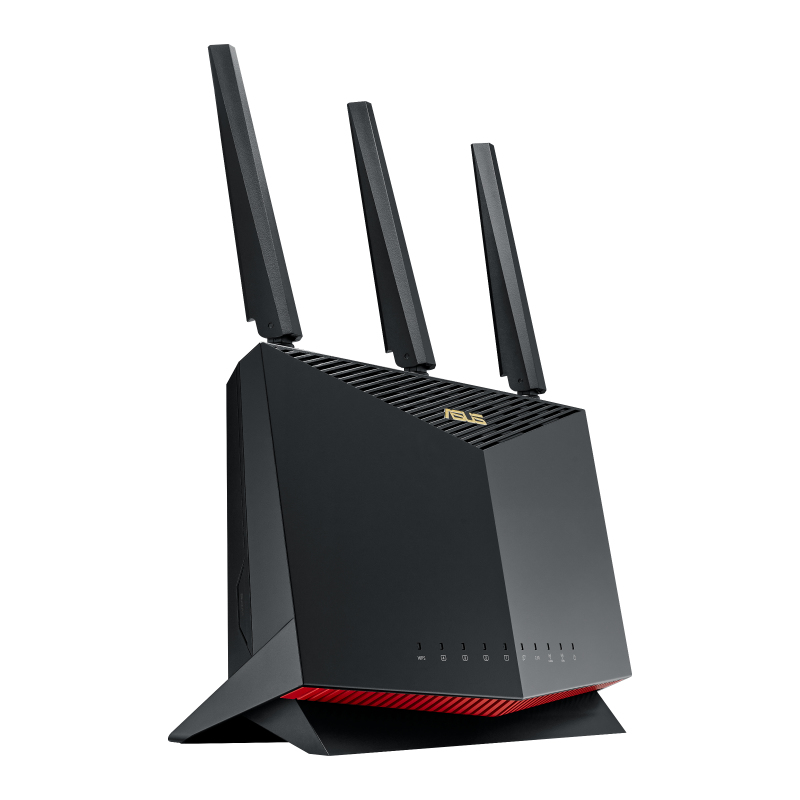

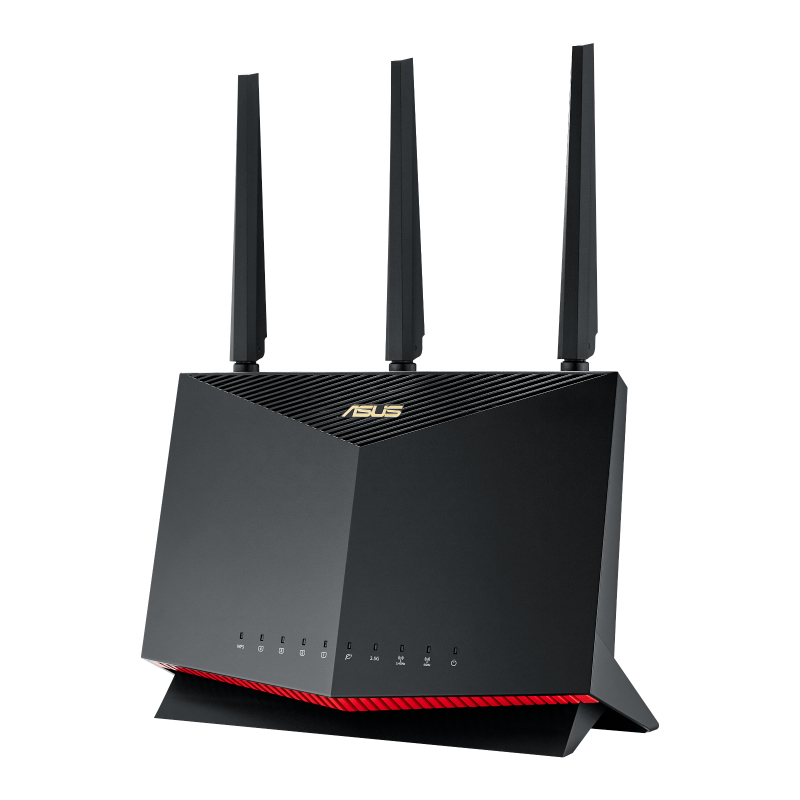

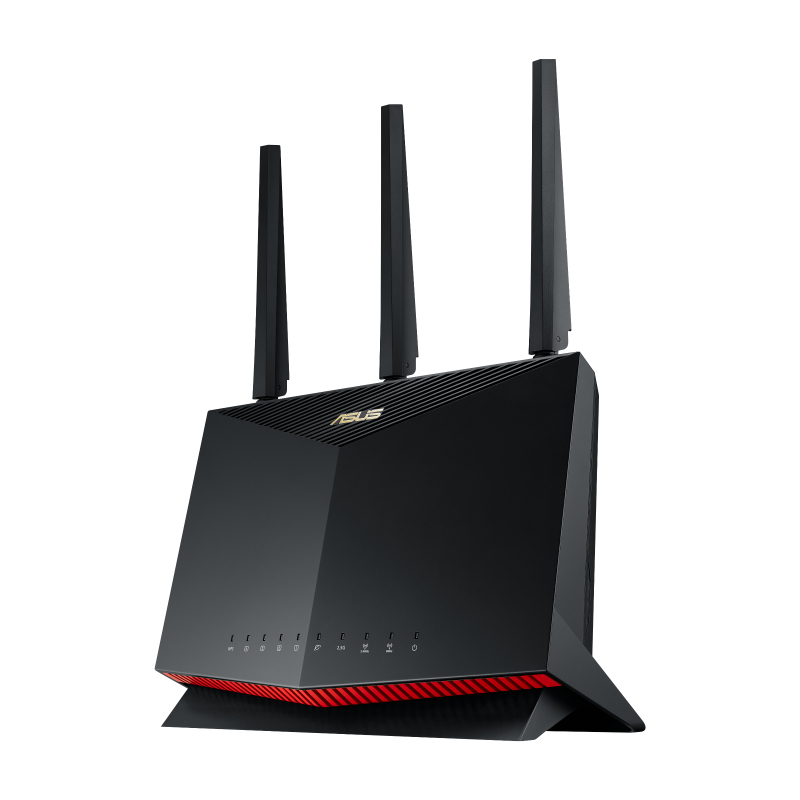

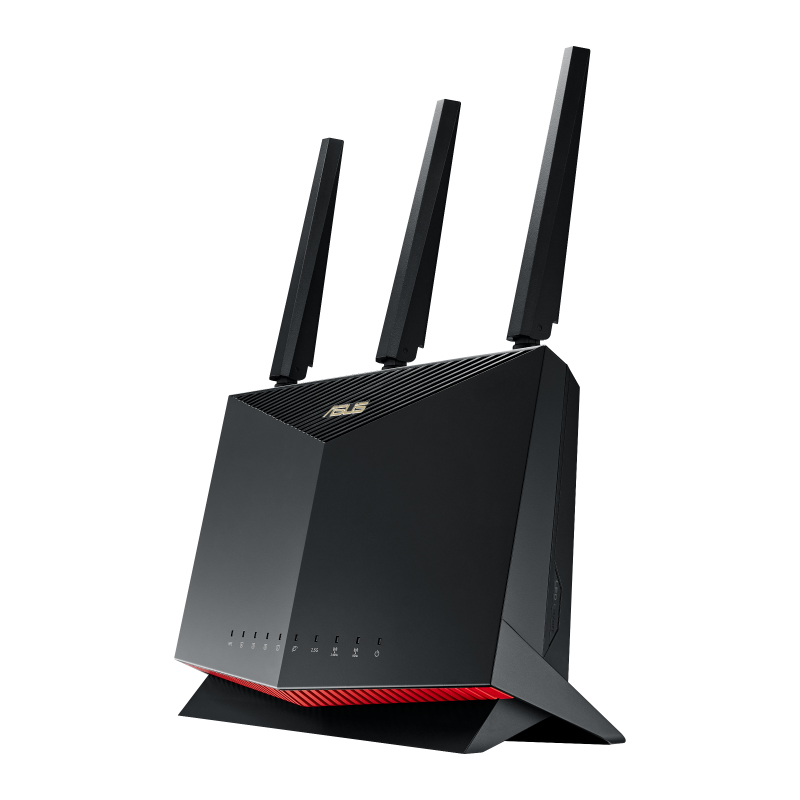

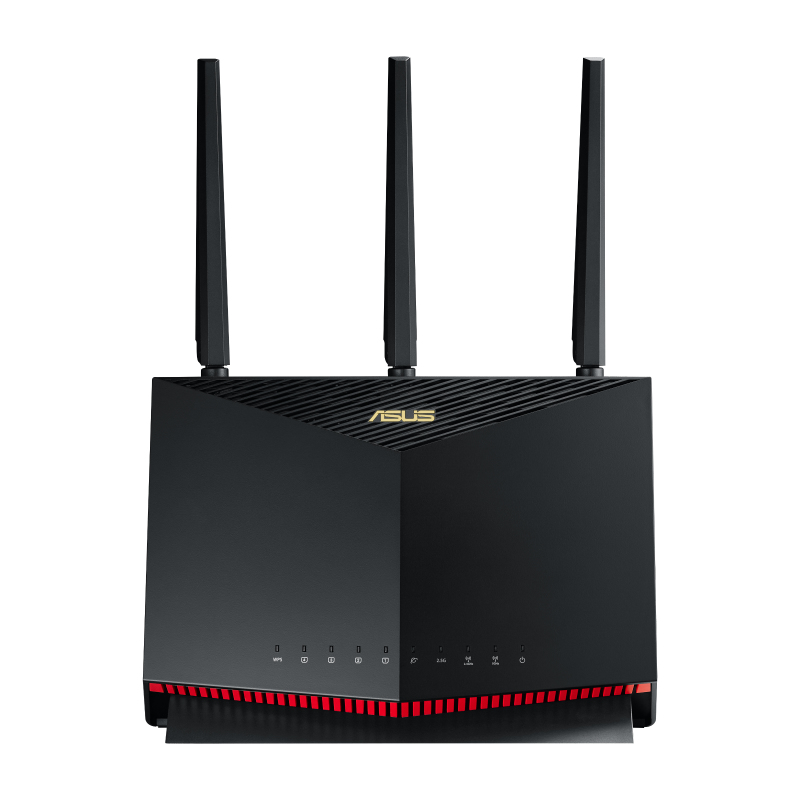

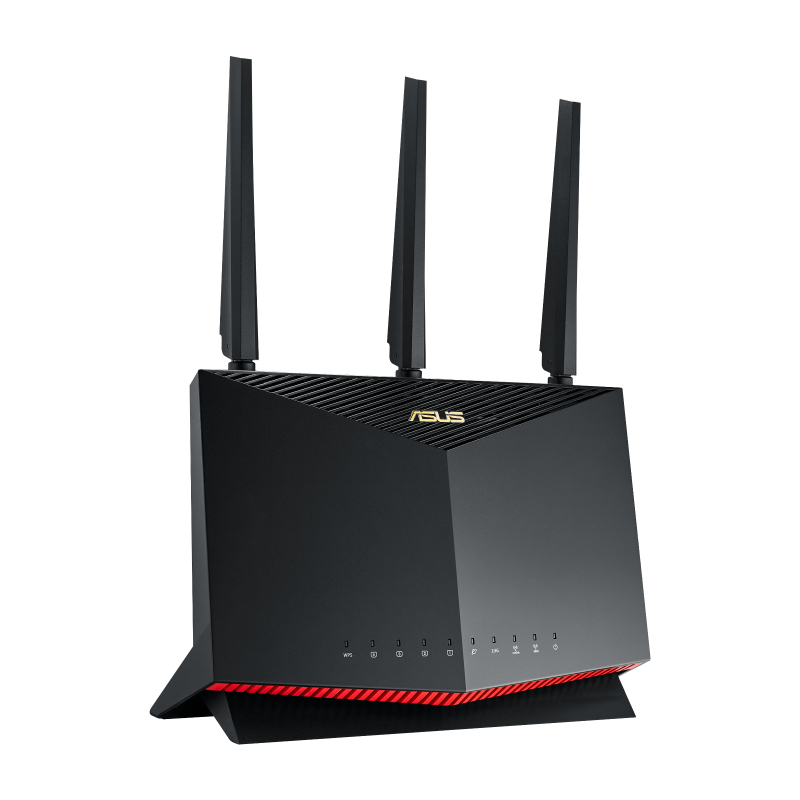

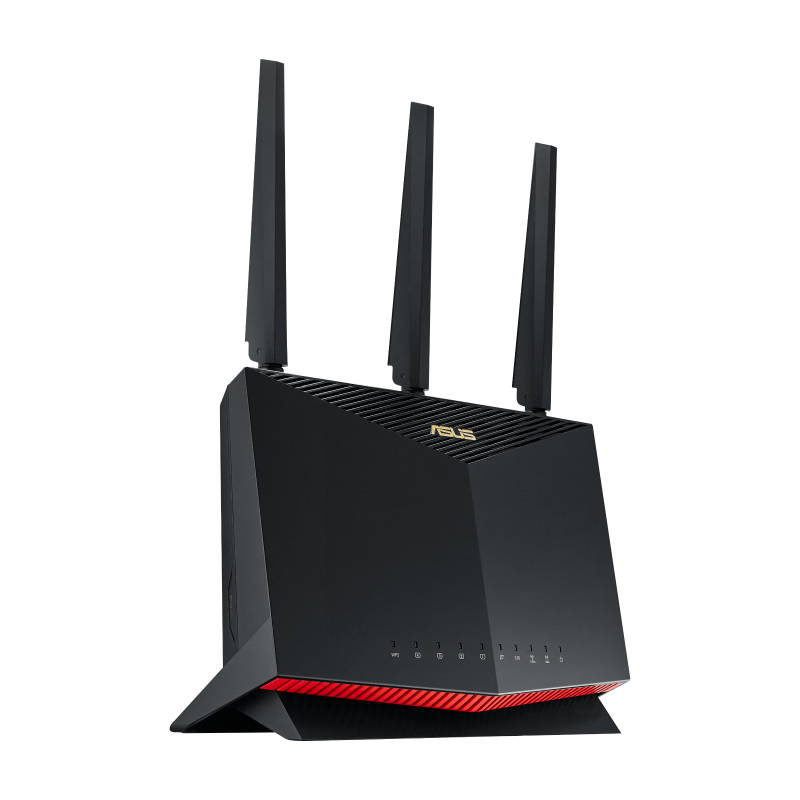

RT-AX86U Pro
Model RT-AX86U ProPart no. 90IG07N0-MO3B00EAN 195553768894
66 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- Weight814.5 g
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Weight
- 814.5 g
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- ASUS
- Category
- Wireless Router
- Model
- RT-AX86U Pro
- Part numbers
- 90IG07N0-MO3B00, 90IG07N0-MU2B00
- EAN / UPC
- 195553768894, 4711081768913, 4711081768920
- Also known as
- ASUS RT-AX86U Pro wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Specifications
66 specifications in 13 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 4804 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Static route | Yes |
| Number of guest networks (2.4 GHz) | 3 |
| Number of guest networks (5 GHz) | 3 |
| Support Samba (storage) | Yes |
| Built-in FTP server | Yes |
| Media server | Yes |
| VPN server | IPSec, OVPN, PPTP, WireGuard |
| VPN Passthrough | Yes |
| VPN support | IPSec, OVPN, PPTP, L2TP, WireGuard |

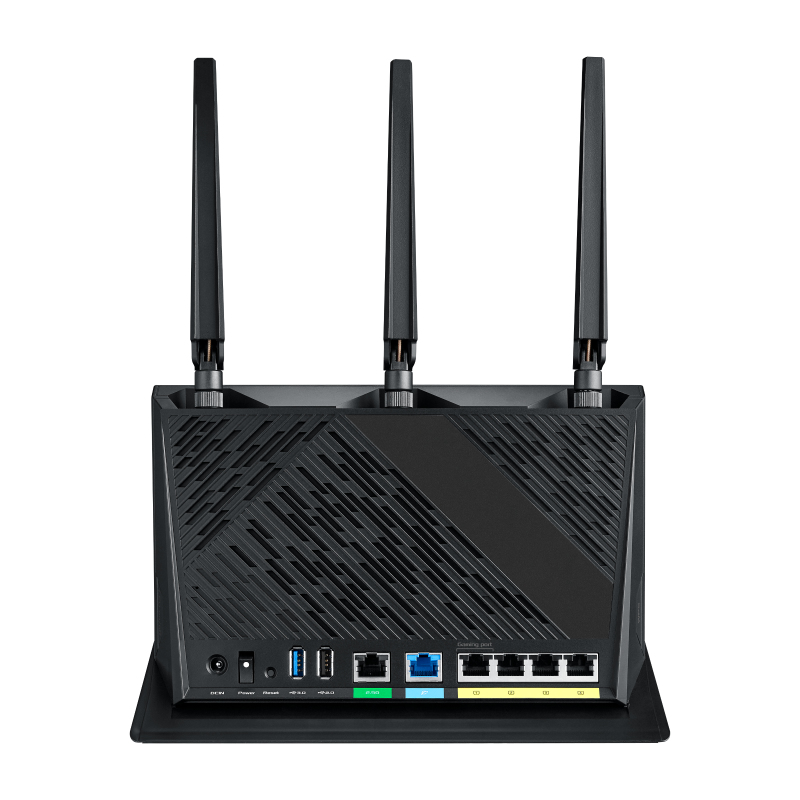

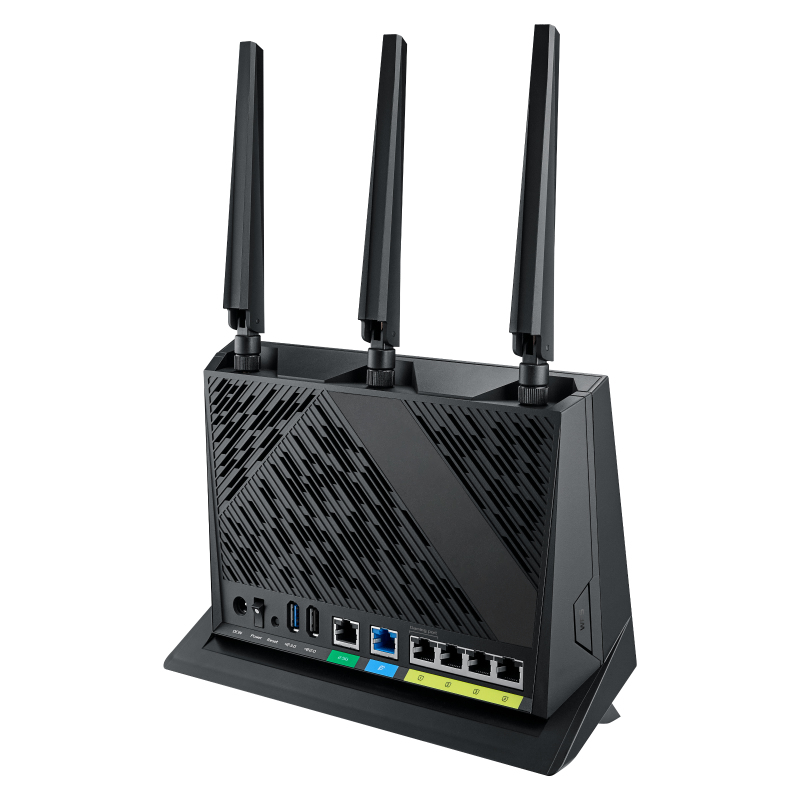

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 6 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Bandwidth control | Yes |
| Quality of Service (QoS) support | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| Intelligent Mesh technology | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Firewall | Yes |
| Guest access | Yes |
| Parental control | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| System event log | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| Indication light | Yes |
| LED indicators | LAN, Power, WAN, WPS |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Antenna included | Yes |
| Warranty card | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal & external |
| Antennas quantity | 4 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 2000 MHz |
| Processor cores | 4 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output voltage | 19 V |
| Output current | 2.37 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 814.5 g |
