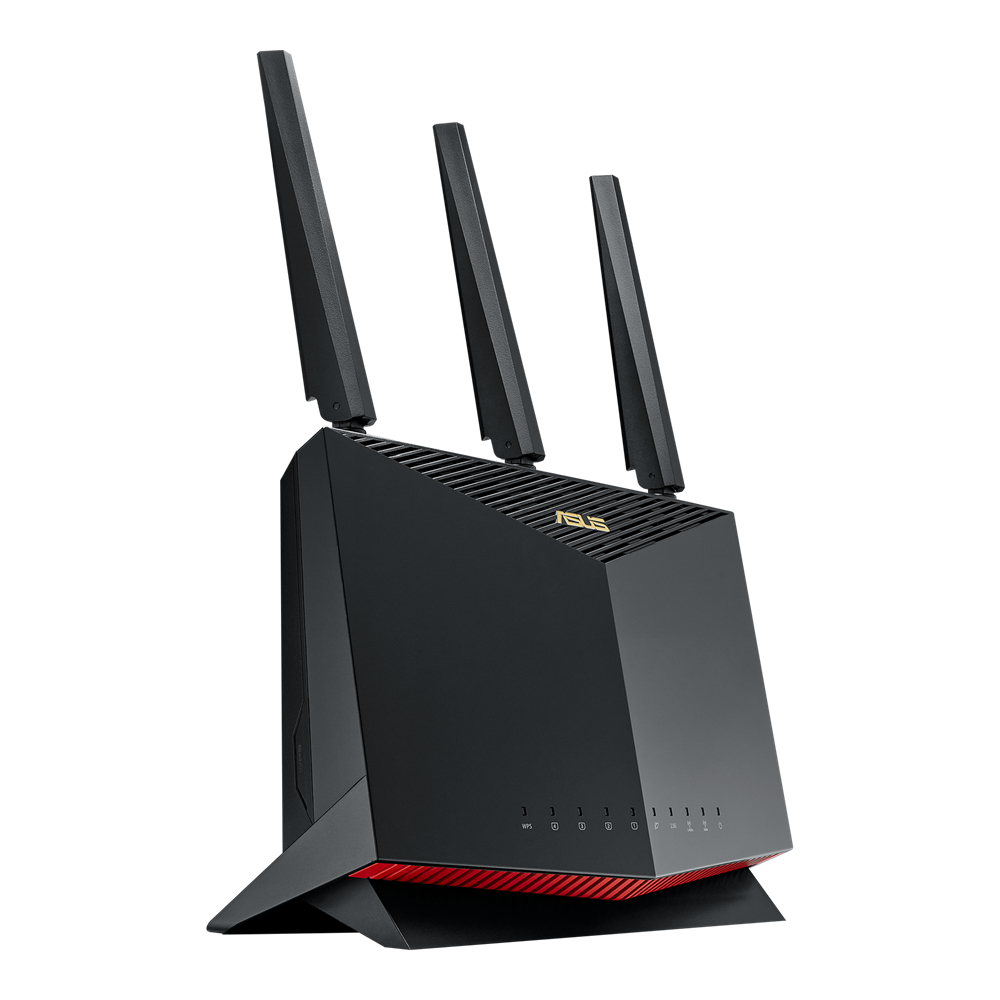

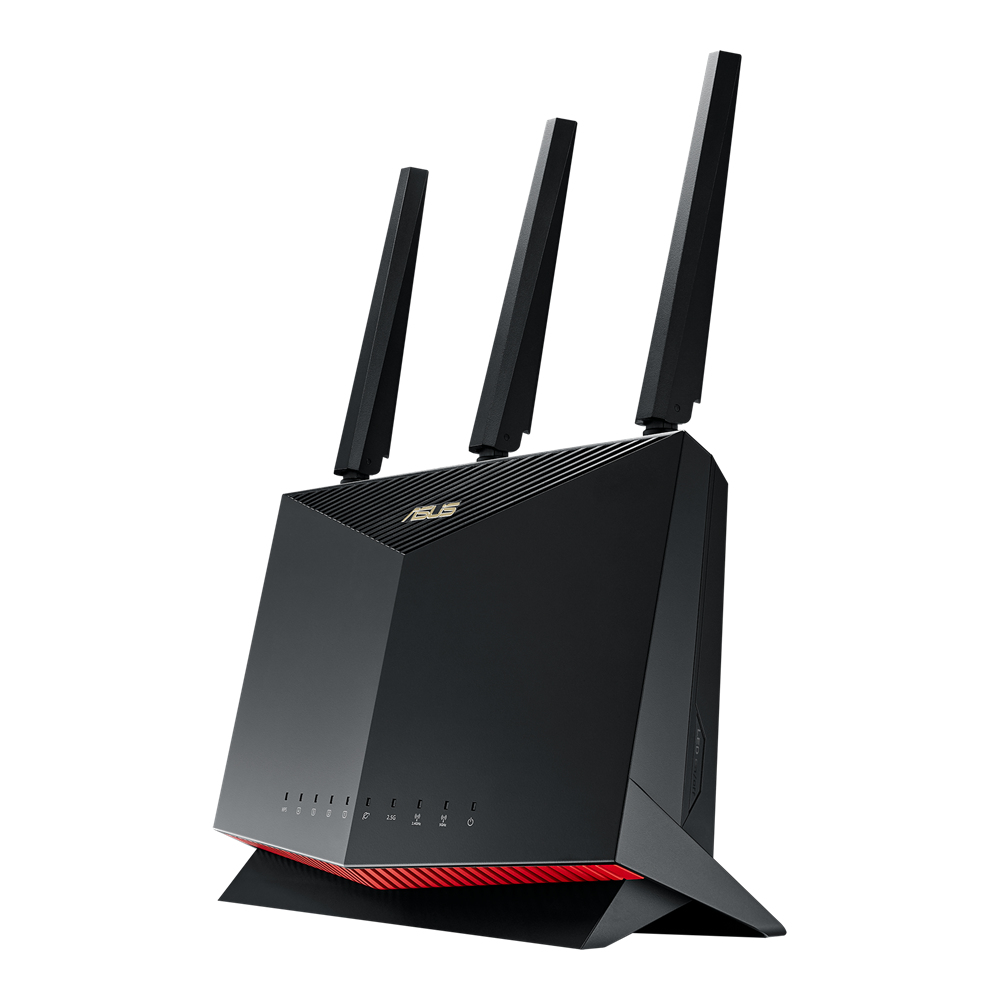

ASUS RT-AX86S wireless router Gigabit Ethernet Dual-band (2.4 GHz

RT-AX86S wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) Black

Model RT-AX86SPart no. 90IG05F0-MU2A00EAN 4711081304265

79 specifications

Memory512 MB
SpeedWi-Fi 6 (802.11ax)
TypeTabletop router
Weight814.5 g
ColourBlack
Ethernet WANYes

See all specifications

Overview

Memory: 512 MB
Speed: Wi-Fi 6 (802.11ax)
Type: Tabletop router
Weight: 814.5 g
Colour: Black
Ethernet WAN: Yes

Brand: ASUS
Category: Wireless Router
Model: RT-AX86S
Part numbers: 90IG05F0-MU2A00, 90IG05F0-MO3A00
EAN / UPC: 4711081304265, 4711081304302, 195553304245, 4711081304296
Also known as: ASUS RT-AX86S wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

79 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	Yes
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	5700 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	861 Mbit/s
WLAN data transfer rate (second band)	4804 Mbit/s
Modulation	1024-QAM

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
VPN server	PPTP, OVPN, IPSec

Mobile network

Specification	Value
3G	No
4G	No
5G	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
DC-in jack	Yes

Management features

Specification	Value
Bandwidth control	Yes
Quality of Service (QoS) support	Yes
Wake-on-LAN ready	Yes
Reset button	Yes
WPS push button	Yes
MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	SSH, SSID, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-PSK, WPS
Firewall	Yes
Guest access	Yes
Parental control	Yes
Filtering	Yes
MAC address filtering	Yes
MAC address table	64 entries
System event log	Yes
DMZ support	Yes
NAT functionality	PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay

Protocols

Specification	Value
DHCP server	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
LED indicators	LAN, Power, USB, WAN, WPS
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Warranty card	Yes
Quick start guide	Yes

Antenna

Specification	Value
Antenna design	Internal & external
Antennas quantity	4

Features

Specification	Value
Built-in processor	Yes
Processor frequency	1800 MHz
Processor cores	2
Internal memory	512 MB
Flash memory	256 MB
Works with Amazon Alexa	Yes

Power

Specification	Value
Power source type	AC
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	19 V
Output current	2.37 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	50 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	20 - 90%
Storage temperature (T-T)	0 - 70 °C

Weight & dimensions

Specification	Value
Depth	100 mm
Height	164 mm
Weight	814.5 g
Width	242 mm

Packaging data

Specification	Value
Package width	390 mm
Package depth	266 mm
Package height	113 mm
Package weight	1.7 kg
Number of products included	1 pc(s)

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
