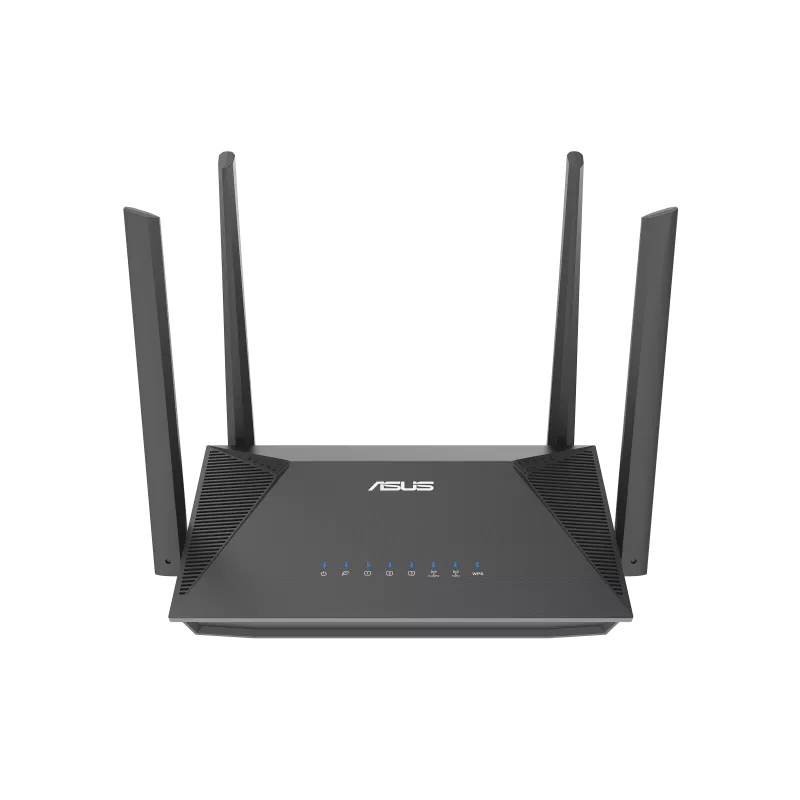

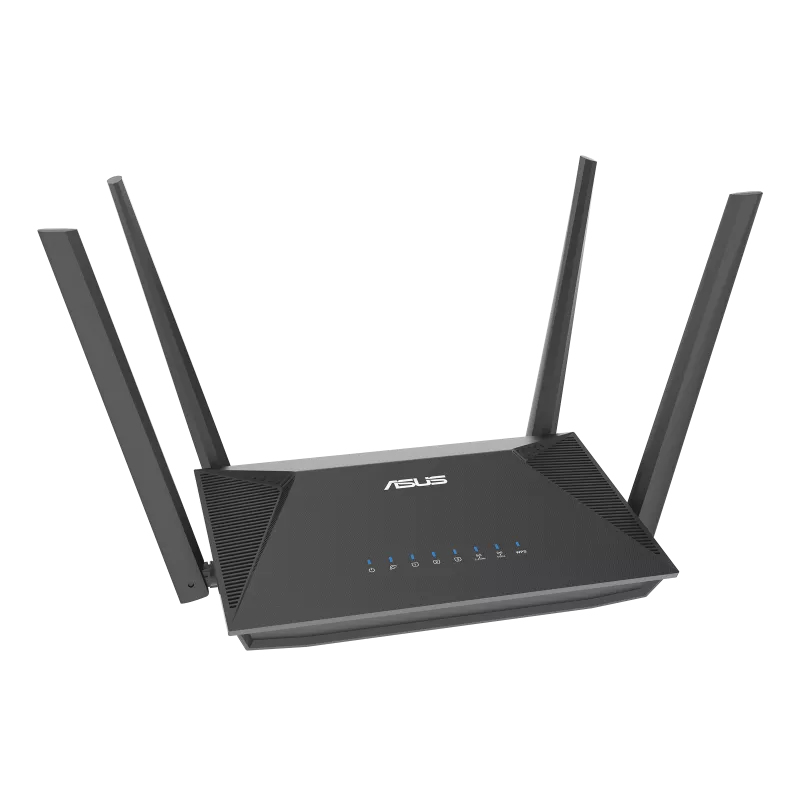

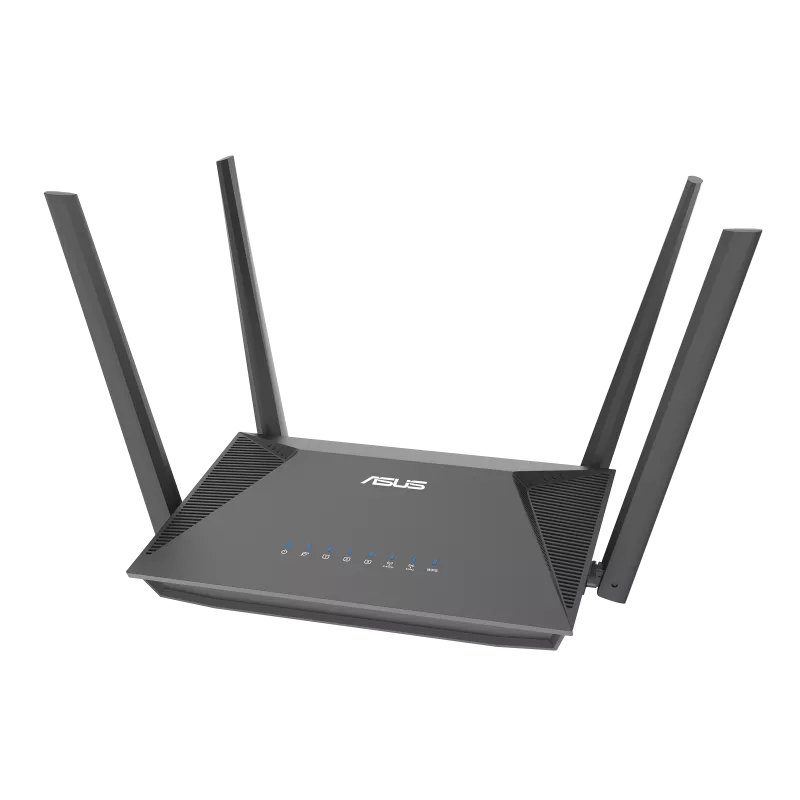

RT-AX52 AX1800 AiMesh
Model RT-AX52 AX1800 AiMeshPart no. 90IG08T0-MO3H00EAN 197105261488
63 specifications
- Memory256 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- Weight298 g
- ColourBlack
- Ethernet WANYes
Overview
- Memory
- 256 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Weight
- 298 g
- Colour
- Black
- Ethernet WAN
- Yes
- Brand
- ASUS
- Category
- Wireless Router
- Model
- RT-AX52 AX1800 AiMesh
- Part number
- 90IG08T0-MO3H00
- EAN / UPC
- 197105261488, 4711387261484, 4711387388860
- Also known as
- ASUS RT-AX52 AX1800 AiMesh wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Specifications
63 specifications in 14 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1201 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Modulation | 1024-QAM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| VPN server | Instant Guard VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Server IPSec VPN Server OVPN VPN Server PPTP |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSH, SSID, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-PSK, WPS |
| Firewall | Yes |
| Parental control | Yes |
| MAC address filtering | Yes |
| System event log | Yes |
| DMZ support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| LED indicators | LAN, Power, WAN, WPS |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Warranty card | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna type | 2x2 |
| Antennas quantity | 4 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1300 MHz |
| Processor cores | 2 |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Works with Amazon Alexa | Yes |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 12 V |
| Output current | 1 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 126 mm |
| Height | 45 mm |
| Weight | 298 g |
| Width | 190 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 254 mm |
| Package depth | 255 mm |
| Package height | 55 mm |
| Package weight | 690 g |
| Package type | Box |
