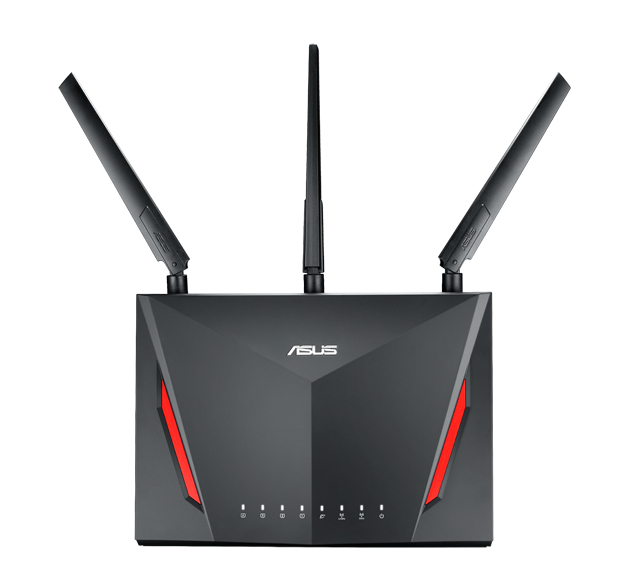

ASUS RT-AC86U wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) Black

Model RT-AC86UPart no. 90IG0401-BL3000-BEAN 4712900663440

69 specifications

SpeedWi-Fi 4 (802.11n)
TypeTabletop router
Weight872 g
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Type: Tabletop router
Weight: 872 g
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Brand: ASUS
Category: Wireless Router
Model: RT-AC86U
Part numbers: 90IG0401-BL3000-B, 90IG0401-BM3000, 90IG0401-BU9000, RT-AC86U, 90IG0401-BN3000
EAN / UPC: 4712900663440, 889349624609, 4058154234167, 4712900663457 +5 more
Also known as: ASUS RT-AC86U wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

69 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	Yes

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	2917 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	750 Mbit/s
WLAN data transfer rate (second band)	2167 Mbit/s
Modulation	1024-QAM
Channel bandwidth	80 MHz

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
VPN support	IPSec, PPTP, L2TP, PPTP, OpenVPN

Mobile network

Specification	Value
3G	No
4G	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, IPSec, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPS
Firewall	Yes
Filtering	Yes
URL filtering	Yes
System event log	Yes
DMZ support	Yes

Protocols

Specification	Value
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
LED indicators	LAN, Power, WAN, WLAN, WPS
On/off switch	Yes

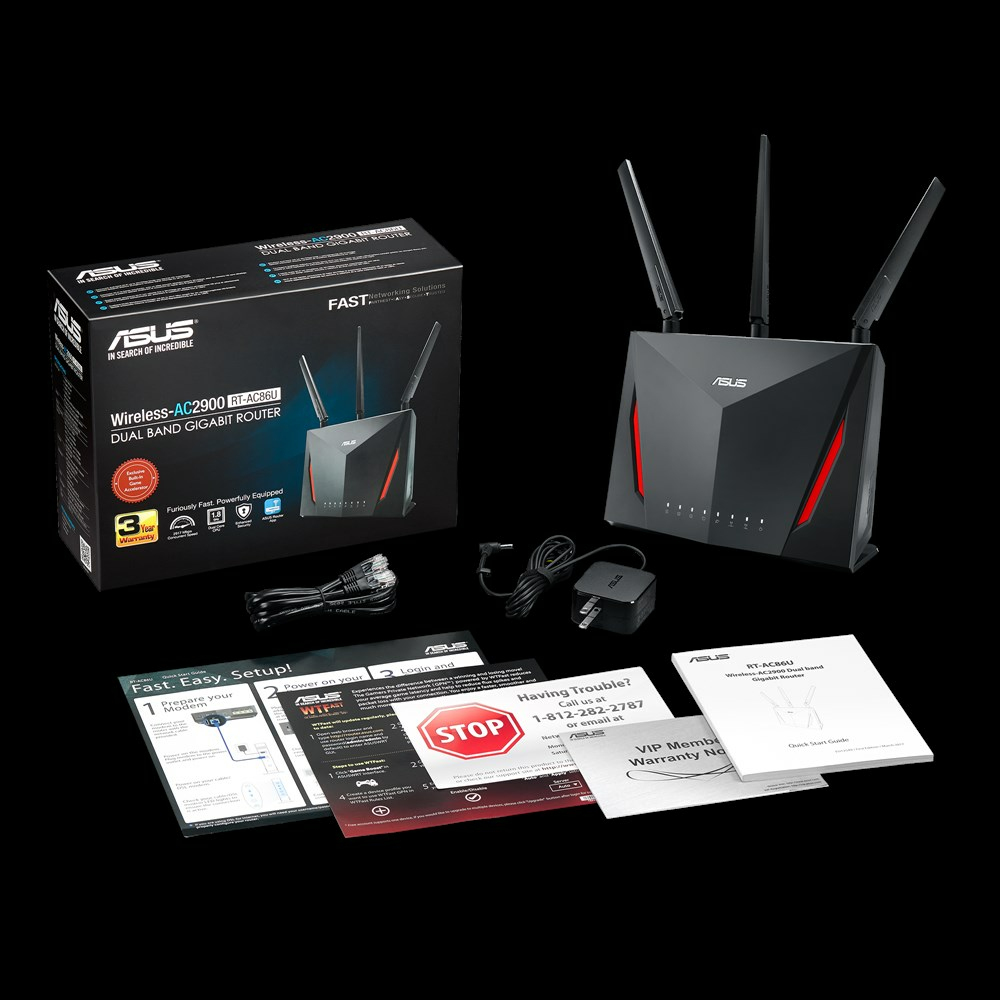

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	Event

Antenna

Specification	Value
Antenna design	Internal & external
Antenna gain level (max)	3 dBi
Antennas quantity	4

Features

Specification	Value
Built-in processor	Yes
Processor frequency	1800 MHz
Processor cores	2

Power

Specification	Value
Power source type	AC
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	19 V
Output current	1.75 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	50 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	20 - 90%
Storage temperature (T-T)	0 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	83.3 mm
Height	160 mm
Weight	872 g
Width	220 mm

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
